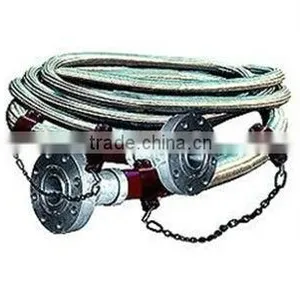

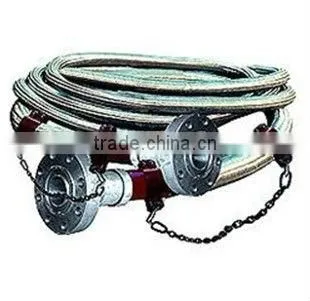

API 7K Rotary Drilling and Vibrator Hose

API 7K Rotary Drilling and Vibrator Hose thumbnail-1
API 7K Rotary Drilling and Vibrator Hose photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
GM
Type:
Other
Contact Supplier Request Quote Chat Now
Goldenman Petroleum Equipment Co., Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Main port of china
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name GM
Type Other
Machine Type Drilling Equipment
Certification API
Material Other
Processing Type Other
Use Well Drilling

Specifications

1 API 7K Rotary Drilling and Vibrator Hose
2 different working pressure
3 competitive prices
4 Swaged coupling, forged union

API 7k Rotary Vibrator Hose

made according to API Spec. 7K standard, applies for flexible hose connection between the top of oil drilling stand pipe and vertical moved swivel joint in well drilling, well cementing, work-over and down hole servicing operation, and also for adjusting the installation mistake between drilling pipe line and stand pipe to avoid shake.

It also applies for high pressure oil or water base mud with the lowest aniline point of 60 from the swivel pipe in high pressure, and down-hole operation high medium such as water, oil and mud etc..





A, B, C Rank Well Drilling Rotary Hose Specification and Basic Parameters
I.D. O.D. Rank Working Pressure Test Pressure Min. Bending Radius Reference Weight Hose Max. Length Connection
mm in mm MPa PSi MPa PSi
51 2 68.6 A 11 1500 21 3000 800 3.17 30M TBGLP
51 2 69 B 14 2000 28 4000 800 3.49 30M
51 2 74.4 C 28 4000 56 8000 850 5.96 30M
63.5 2002/1/2 81.9 A 11 1500 21 3000 900 4.23 30M TBGLP
63.5 2002/1/2 82.3 B 14 2000 28 4000 900 4.54 30M
63.5 2002/1/2 87.7 C 28 4000 56 8000 1000 7.26 30M
76 3 95.2 A 11 1500 21 3000 950 7.92 30M TBGLP
76 3 100.1 B 14 2000 28 4000 950 8.49 30M
76 3 108.8 C 28 4000 56 8000 1050 14.66 30M
89 2003/1/2 117.3 A 11 1500 21 3000 1000 7.3 30M TBGLP
89 2003/1/2 119.5 B 14 2000 28 4000 1000 7.9 30M
89 2003/1/2 122.8 C 28 4000 56 8000 1100 17.44 30M
102 4 128.4 A 11 1500 21 3000 1050 9.55 30M TBGLP
102 4 138.8 B 14 2000 28 4000 1050 11.61 30M
102 4 147.4 C 28 4000 56 8000 1100 21.95 30M
127 5 150 A 11 1500 21 3000 1200 10.1 30M TBGLP
127 5 154.1 B 14 2000 28 4000 1200 12.25 30M
127 5 163 C 28 4000 56 8000 1300 24.2 30M
152 6 180 A 11 1500 21 3000 1300 28.2 30M TBGLP
152 6 185 B 14 2000 28 4000 1300 30.8 30M
152 6 196 C 28 4000 56 8000 1400 44.4 30M
