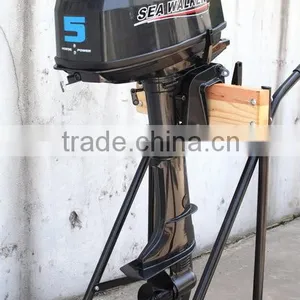

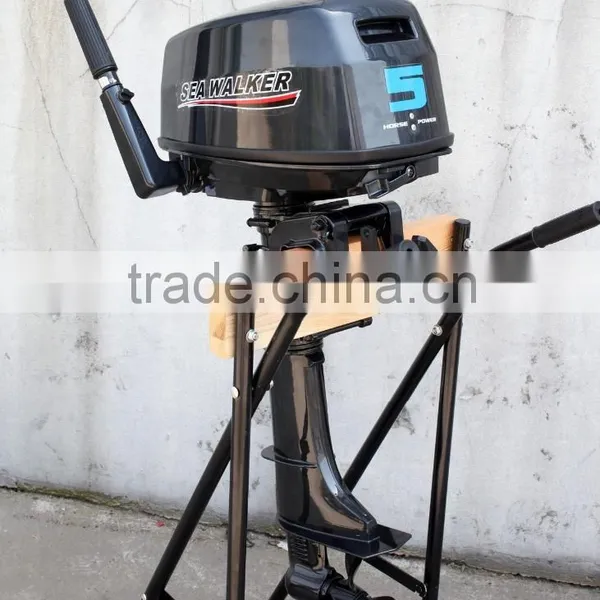

2 Stroke 5HP Outboard Engine

Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Engine:

2 Stroke

Engine Capacity:

2.1 - 3L

Lanxi Sea Walker Boat Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

NingBo/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Engine 2 Stroke

Engine Capacity 2.1 - 3L

Fuel Type Gasoline

Cylinders 1

Engine Position Outboard

Dimensions (L x W x H) (mm) 680X325MM

H.P.	3.5HP	5HP	6HP
(mm/in)OVERALL LENGTH	620(24.4)	680(26.8)	680(26.8)
(mm/in)OVERALL WIDTH	220(8.6)	325(15.8)	325(15.8)
(mm/in)OVERALL HEIGH	960(37.8)	1073(42.2)	1073(42.2)
(mm/in)TRANSOM HEIGH	432(17.0)	435(17.1)	435(17.1)
ENGINE TYPE	2 stroke	2 stroke	2 stroke
DISPLACEMENT(cc)	102	102	102
BORE*STROKE(mm)	47*43	55*43	55*43
MAX. OUTPUT(hp/kw)	2.9(4)	3.6(5)	4.4(6)
RPM	4200-5300	4500-5500	4500-5500
STARTING SYSTEM	MANUAL	MANUAL	MANUAL
IDLING SPEED(IN NEUTRAL)	1250-1350	1000-1100	1000-1100
TRIM METHOD	MANUAL	MANUAL	MANUAL
IGNITION SYSTEM	CDI	CDI	CDI
CONTROL SYSTEM	TILLER	TILLER	TILLER
GEAR POSITIONS	Forward-neutral	Forward-neutral-reverse	Forward-neutral-reverse
PROPELLER(in)	37 1/4"6"	37 4/5"8"	37 4/5"8"
Integral fuel tank capacity(L)	1.5	2.5	2.5
Separate fuel tank capacity(L)		12	12
WEIGHT(KG)	17	20	20
Fuel :Oil RATIO	50:1	50:1	50:1
PACKED CASE SIZE(cm)	10350.543	112.562.538.5	112.562.538.5
CONTAINER LOADING(20GP/40HQ)	230/450	100/240	100/240
