Help Center125kg Spiral Mixer
Related Products
125kg flour capacity Spiral Mixer for mixing various heavy duty dough in perfect quality.
All complete flour capacity is from 8kg flour to 200kg flour Spiral Mixer.
SPECIFICATIONS
| 1. Bowl Capacity | 240 Liter (282 Qt) |
| 2. Flour Capacity | 125 kg (276 lbs) |
| 3. Dough Capacity | 200 kg (440 lbs) |
| 4. Bowl Size | 850 x 500 mm (33.5" x 20") |
| 5. Speeds | 2 Mixing Speeds |
| 6. Timer | 2 Timers with auto changeover |
| 7. Spiral Motor | 12 HP |
| 8. Bowl Motor | 3 HP |
| 9. Voltage | 220V - 415V |
| 10. Phase | 3 Phase |
| 11. N. W. | 920 kg (2028 lbs) |
| 12. Dimension | 1560 x 950 x 1400 mm (61" x 37" x 55") |
| 13. Country of Origin | 100% Taiwan Made |
| 14. Certified | CE certified |

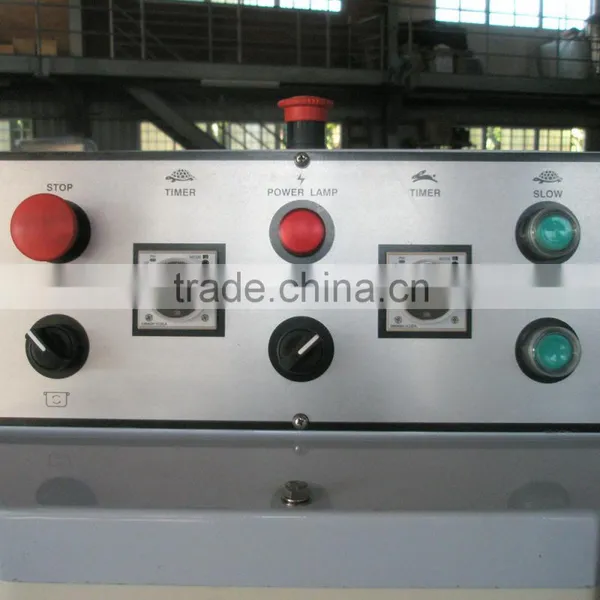

Features
- Bowl Reversible Rotation
- 2 Timers with Automatic changeover from Low Speed to High Speed
- Heavy-duty agitator is 20% thicker than other companies
- Hi-Speed Lock Out Switch to prevent high speed operation
- See-thru bowl guard with safety interlock prevents operation with guard open
- Belt driven arm and bowl for quick operation and low maintenance
- Heat treated enamel coating resists scratches, rust, and dents
- Mounted on castors for extra mobility and easy maintenance
- Stop button - From "Schneider Electric" Red ZBE-102, Made in France, UL/CSA/CE/CCC/PCT certificates.
- Fast and Slow speed Start buttons - From "Schneider Electric" Green ZBE-101, Made in France, UL/CSA/CE/CCC/PCT certificates.
- Left / Right Bowl Rotation switch - From "Schneider Electric" Black ZBE-101, Made in France, UL/CSA/CE/CCC/PCT certificates.
- Manual / Automatic switch - From "Schneider Electric" Black ZBE-101, Made in France, UL/CSA/CE/CCC/PCT certificates.
- Power light - From "Schneider Electric" Red ZBE-101, Made in France, UL/CSA/CE/CCC/PCT certificates.
- Emergency Stop - From "Schneider Electric" Red ZBE-102, Made in France, UL/CSA/CE/CCC/PCT certificates.
- Fast and Slow speed Timers - From "Omron" H3BA-N8H, UL/CCC certificates. (Connector Socket - From "Omron" P3G-08, Made in Japan, CSA/UL certificates.
- Main Power - From "Schneider Electric" Red V1, Made in Czech Republic, UL/CSA/CCC certificates.
- Transmission V-Belts - From "Gates" 7M1220 Polyflex, Made in USA, Unique 60° angle polyurethane construction transmits greater loads at higher speeds in less space than conventional V-belts.
- IEC/NEMA Standard 4 HP Motor - From "Kuo Shuay Industrial Co., Ltd." Made in Taiwan.
- Safety Guard - Real S/S #304 safey cover for protecting bakers and operators.
- Safety Limit switch - From "Panasonic Electric Works SUNX Co., Ltd." Made in Japan, UL/CE certificates. A limit switch is an electromechanical device that consists of an actuator mechanically linked to a set of contacts. When an object comes into contact with the actuator, the device operates the contacts to make or break an electrical connection.
- Our mixing bowl's thickened flat ring is supported by thrust rollers. Because of this design, it makes the whole mixing bowl more stable druing the operation.
- Wheel-mounted for easy moving and non-slip adjustable legs that can be used to replace the wheels for sturdy and fixed operation.
Wooden Crates Packing - A wooden crate has a self-supporting structure, all six of its sides must be put in place to result in the rated strength of the container.
Fumigation / Heat Treatment (ISPM 15 rolles) - An international shipping rule on wooding packing restrictions, relate to prevent the spread of plant pests and diseases throughout the world, when shipping international ocean freight using packing materials and supply containing wood.
Certificate of Origin (C/O or COO) : Taiwan - Attesting the goods in a particular export shipment have been wholly produced, manufactured or processed in Taiwan. (If necessary)
Trade terms: FOB Taiwan, CFR, CIF
Payment methods: T/T (Bank transfer), L/C sight, D/P, Paypal, Western Union, Moneygram, Escrow.
Payment terms: 30% deposit and 70% before shipment.
Delivery: About 18-25 days after deposit.
Shipping: By sea or air courier
Warranty: One year full parts provided.
Certificates
DUNS (D-U-N-S), is a proprietary system developed and regulated by Dun & Bradstreet (D&B) that assigns a unique numeric identifier, referred to as a "DUNS number" to a single business entity.
Intertek ETL Mark is proof of product compliance (electrical, gas and other safety standards) to North American safety standards. Authorities Having Jurisdiction (AHJs) across the US and Canada accept the ETL Listed Mark as proof of product safety.
Factory
Customer's Warehouse / Shop
Difference between a Spiral Mixer and a Planetary Mixer
Planetary or Vertical Mixers can be either floor or countertop models. They generally include a stainless steel dough hook, whip and flat beater. These beaters can be interchanged used to mix pizza, bread, pastry, cookie, cake, donut dough, icing, filling, cream, dressing, etc. A great feature of these mixers is the different attachments that can be used when mixing. The common description of the size is by volume of the bowl, for instance 8L, 10L, 20L, 30L, 40L, 50L, 60L, 80L and 140L Planetary Mixers.
Spiral mixers are named after their spiral-shaped dough agitator or hook. The bowl revolves during mixing while the agitator stays in place. They are designed to mix and knead bread, bagels, pizza and gentle types of French dough. Commissaries and bakeries most often use spiral mixers, but medium to large volume pizza operations can also find a spiral mixer useful. The main function of the spiral mixer is to mix bread dough, and do it gently by developing the proper gluten structure and not overworking the dough. The capacity of the flour, for instance 6kg, 8kg, 15kg, 25kg, 38kg, 50kg, 75kg, 100kg, 125kg, 150kg, 175kg and 200kg flour capacity Spiral Mixers.
