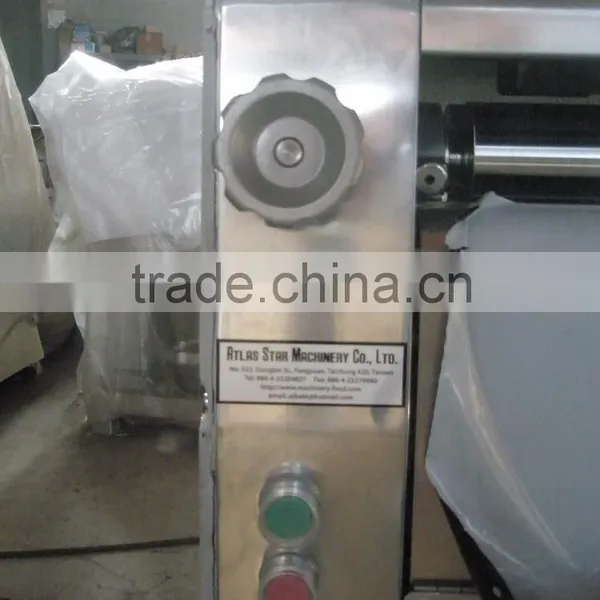

Bakery photo-3
Bakery photo-4
Bakery photo-5
Bakery photo-6
US$ 1,300 - 1,700 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Taiwan, China
Brand Name:
ATLAS
Payment & Shipping
Payment Methods:
Port of Shipment:
Keelung
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Taiwan, China
Brand Name ATLAS
Model Number 320N
Usage Bread
Type Other, Dough Moulder
Power Source Electric
Voltage 110V
Power(W) 1/4 HP
Weight 60 kg
Dimension(L*W*H) 90*58*49 cm
Certification CE certificate
Warranty 1 year
After-sales Service Provided Overseas third-party support available

bakery

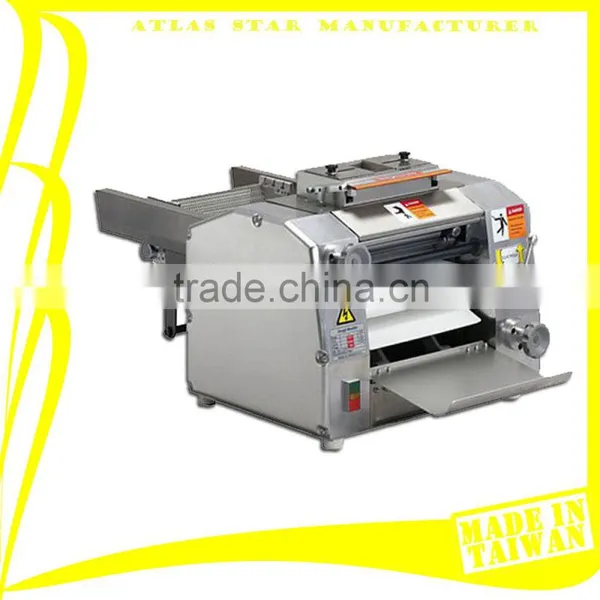

Table top Bread Loaf Moulder

with gentle spring loaded rollers system will not tear dough especiallly well for sticky dough which contains high percentages of water, sugar and margarine. Use for moulding all types of breads & rolls, Subs & hotdog rolls, Rye & Pan breads, Hoagie & finger rolls, Challah & pretzels.



SPECIFICATIONS

1. Dough Roller 3" x 9.6" (76 x 245 mm)
2. Roller Gap 0 - 18 mm
3. Set Roller 1 set Roller
4. Conveyor Belt 12" x 53" (300 x 1350 mm)
5. Output 1000 pcs / hour
6. Moulding range   1 - 14 oz. (30 - 400 gram)
7. Power 1/4 HP heavy duty TEFC motor
8. Voltage single phase for 110V
9. Dimension 35" x 23" x 19" (900 x 580 x 490 mm)
10. N. W. 132 lbs (60 kg)
11. Country of Origin 100% TAIWAN MADE
12. Certificate CE Approval





FEATURES

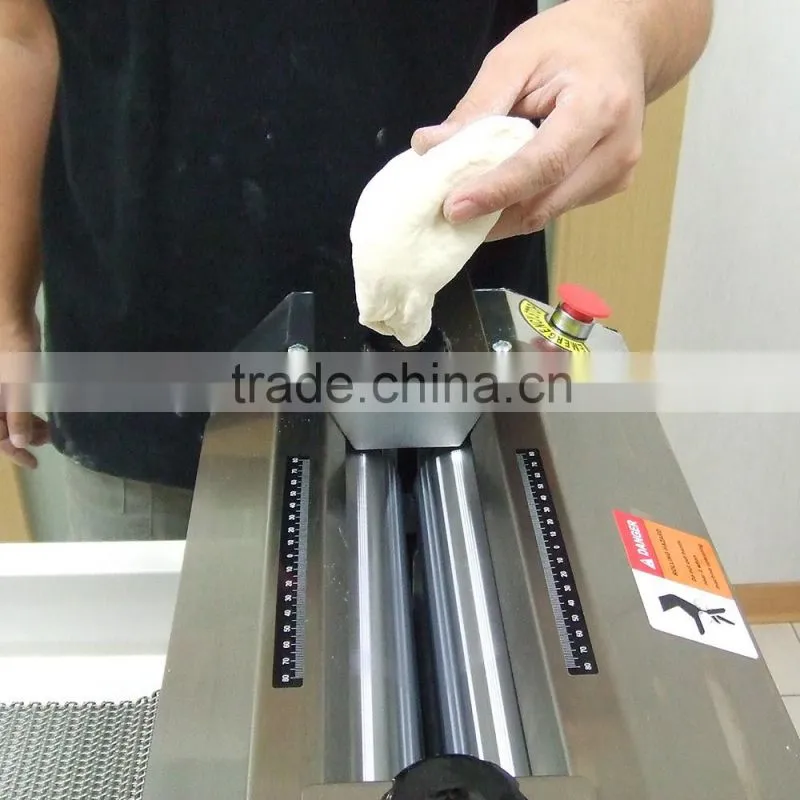

  • 3" diameter synthetic dough rollers complete with nylon scrapers.
  • FDA approved polyester conveyor belt.
  • Adjustable in any direction for users preference.
  • All sealed heavy duty ball bearings.
  • Sprockets keyway and setscrews attached with a totally enclosed roller chain drive.
  • Fully adjustable side guides.
  • Hand feed or use under a bread plant.
  • Caster equipped for convenient moving.

bakery

bakery       bakery





Packaging & Shipping

Wooden Crates Packing - A wooden crate has a self-supporting structure, all six of its sides must be put in place to result in the rated strength of the container.



Fumigation / Heat Treatment (ISPM 15 rolles) - An international shipping rule on wooding packing restrictions, relate to prevent the spread of plant pests and diseases throughout the world, when shipping international ocean freight using packing materials and supply containing wood.



Certificate of Origin (C/O or COO) : Taiwan - Attesting the goods in a particular export shipment have been wholly produced, manufactured or processed in Taiwan. (If necessary)



bakery

bakery





Our Services

Trade terms: FOB Taiwan, CFR, CIF

Payment methods: T/T (Bank transfer), L/C sight, D/P, Paypal, Western Union, Moneygram, Escrow.

Payment terms: 30% deposit and 70% before shipment.

Delivery: About 18-25 days after deposit.

Shipping: By sea or air courier

Warranty: One year full parts provided.
