Shenzhen Xinyuantong Electronics Co., Ltd.
Shenzhen Xinyuantong Electronics Co., Ltd.was established in 2000 with the registered capital of RMB 31.5 million, the total business space is 12,000 m2, there are more than 260 employees, including 120 research, engineering and technical personnel; we are one professional high-tech company which provide the solutions to the public safety, and provide the complete production and integration services.
The Company is committed to the technical development and research of “GuardSpirit” series of security products, the developed products have been granted by 28 national patents, and have formed five categories of products including the metal detectors, X-ray baggage scanners, test products for radioactive materials, vehicle chassis inspection products, EOD and anti-explosion products.
Our Company has been committed in the business of access security, security equipments and services for 14 years, and during the period, we have provided safety and security services for hundreds of large-scale events, meetings, exhibitions, political and legal departments, railways, highways, ports and other places, including 26th Summer Universiade Shenzhen 2011, World Expo 2010 Shanghai, 16th Asian Games Guangzhou 2010, 14th FINA World Championship -Shanghai 2011, 24th Winter Universiade Harbin 2009, Olympic Games Beijing 2008, Wuhan-Guangzhou high-speed railway, Beijing-Shanghai high-speed railway and other key events and projects.

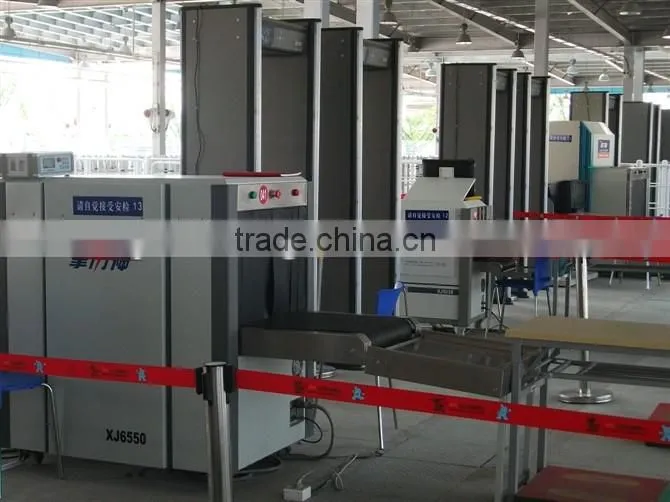

X-ray scanner baggage scanner for metro,railway
Model: XJ6550
Tunnel Size : 650(W)×500(H)mm
Power Requirement: 220V AC (±10%) 50±3Hz
Power consumption: 1.0KW (Max)
Noise level: <58dB
Conveyor Speed: 0.22m/s
Conveyor Max Load: 170 kg
Wire Resolution: 40AWG
Spatial Resolution: 1.0mm Horizontal and Vertical
Steel Penetration: 40mm
Single inspection dosage:
< 1.2μGy
Leakage radiation: <0.1µGy/h
Film Safety: Guarantee ISO1600 Film
X-Ray Generator Specifications
Tube Current:0.4~1.2MA(adjustable)
Anode Voltage:100~160KV(adjustable)
Cooling: Sealed oil bath with forced air
Duty Cycle: Rated for 100%Duty Cycle
Beam Direction: Upward
Beam Angle: 80°
Detector: L-shaped Array
Image Display
19’’ High Resolution LCD Monitor
Display Resolution: 1280*1024;24 bit/pixel Color
Contrast Sensitivity: 24 Visible Levels, 4096 Gray Level
Image storage: 100,000 pictures in real time (can be customized)
Zoom: 64 Times Enlarge, Whole screen continuous observation
Multi-Energy (M) color material identification: Organic objects in orange color, inorganic objects in blue color, mixture in green color
Edge enhancement: Object contour edge is more distinct
Super image enhancement: Image detail is more distinct
High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly
Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.
Brightening/dimming: Increase/Decrease brightness of image
Image recurrence: Display the previous twenty images and process any one of them
Image restoration: Restore image to initial status
Assist to detect drug and explosive powder
Special features:
Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time
Safety ray: Ray is transmitted under automatic control, avoiding the error
One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient
Eagle eye: Capable of expediently observing the magnifying area
Self-diagnosis function: Give message automatically if malfunction for prompt maintenance
Environment Specifications:
Operating temperature/humidity: 0℃ ~ 45℃/20% ~ 95% (Non-condensing)
Storage temperature/humidity: -20℃ ~ 60℃/20% ~ 95% (Non-condensing)

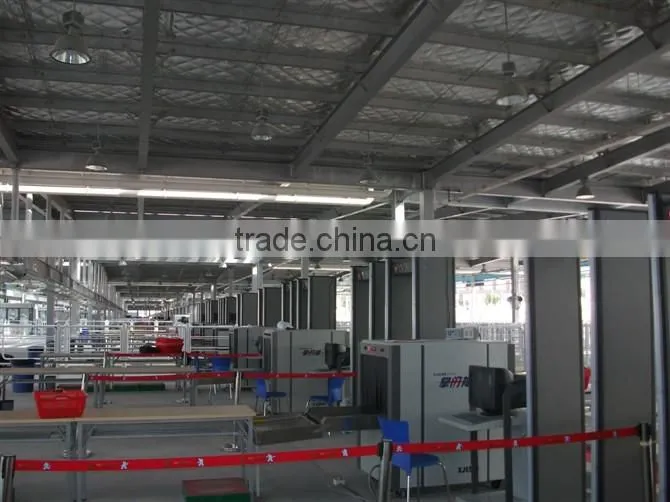

APPLICATIONS:
ENTRANCES OF EXHIBITION CENTER:

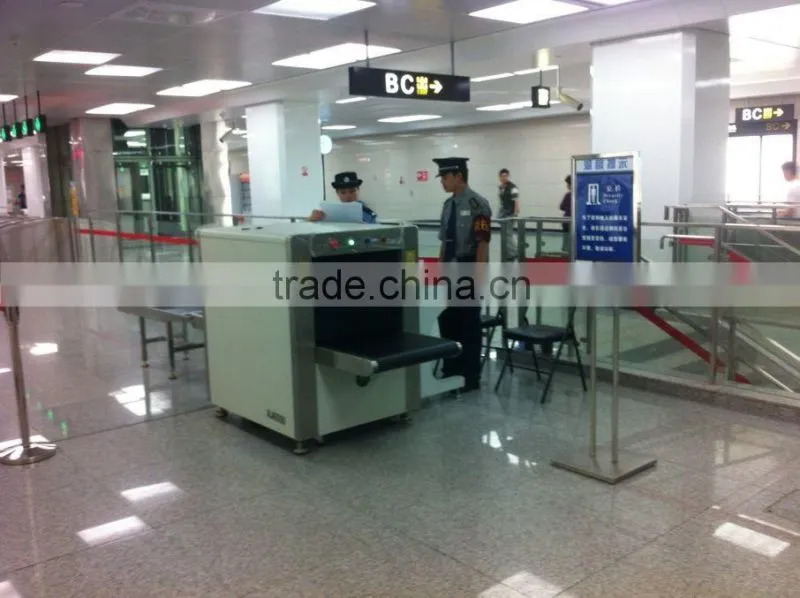

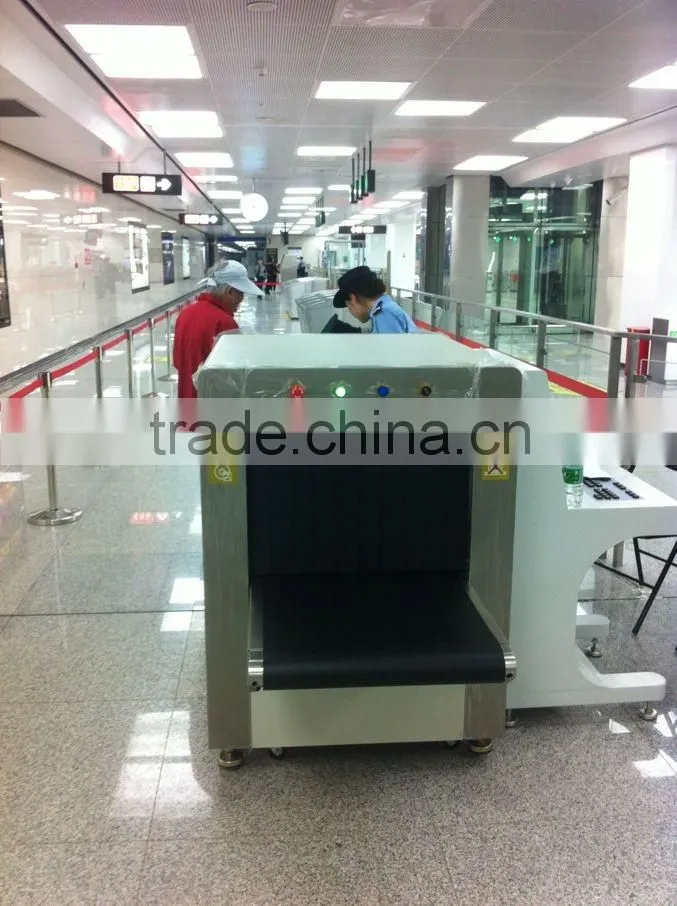

Merto:

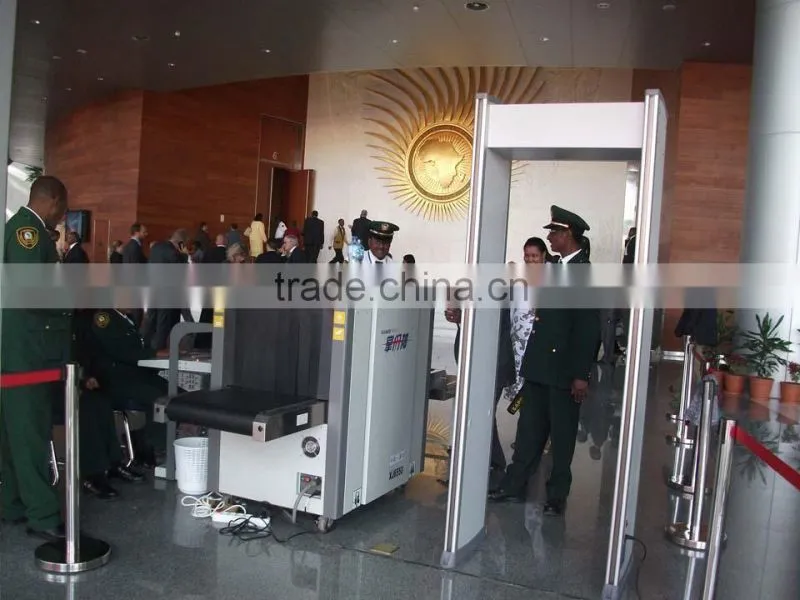

CONFERENCE CENTER
Dimension:
240*109*144cm *1 package, 95*63*116cm *1 package
Total two packages,gross weight 650KG.
ONE YEAR WARRANTY
CERTIFICATE
