Quality UHMWPE Pipes for Dredging Activity
Company: Shandong Buoy&Pipe Industry Co.,Ltd
Business type: Manufacturer
Products: UHMWPE pipes&UHMWPE Navigation Aids
Employees: about 200 employees, professional R&D team, professional engineers& installation team
Production Lines: 25 lines, with annual production capacity of 10,000 metric tons
UHMWPE Pipes Sizes: Inner Diameters are ranging from 77mm to 1200mm, with different wall thicknesses, all the pipes can be customized according to the specified project.
UHMWPE Navigation Buoy Size: CMB1.0M, CMB1.2M, CMB1.5M, CMB1.8M, CMB2.1M, CMB2.4M, CMB3.0M
The Detailed characteristics of Quality UHMWPE Pipes for Dredging Activity:
Anti-abrasion: Under the same instance, the bulk lost is only the 1/7 of steel piper .
Anti High-pressure:It is applicable under the press 0.2Mpa-4.0Mpa.
Anti-corrosion:Because the solid structure,it can anti-corrosion very well.
From Lubrication:The abrasion is the least among all the pipes materials .Under the same stance,the press lost is only the steel pipes1/10,and is only the nylon 1/7.
Non-scaling:The internal wall is so slippery that the medium cant deposit on it..
Light Weight:The density is the 1/8 of the steel.it's easy to convey and install.
Available to connection: It's welded by flange or hoop. And it's convey and install.
Anti-aging: There is anti-ultraviolet radiation material in the pipes, May use above for 50 years under the burning hot sunlight.
Health&Safety:This kind of pipe is innocuity.
Temperature-resistance:The pipe can be used from -70oC to 85oC.
Long life: Under the same instance, the used life is 7 times of the steel pipes .
Performance comparison of UHMW-PE pipe for dredging with other materials
Item |
Experimental methods |
Units |
UHMWPE |
PA66 |
PVC |
PE |
Steel Pipe |
Average molecular weight |
GB1841 |
1.5×106 |
5×105 |
||||
Density |
GB1033 |
G/Cm3 |
0.935 |
1.13-1.15 |
1.4 |
0.945 |
7.8 |
Water absorption |
ASTMD-570 |
% |
0.01 |
3.8 |
0.07-0.4 |
0.01 |
|
Melting Point |
ISO11357.3 |
136 |
255 |
160 |
129 |
||
Heat distortion temperature0.46MPa |
GB1634 |
85 |
182-224 |
54-73 |
71 |
||
Linear expansion coefficient |
ASTMD-696 |
10-4/ |
1.5 |
0.8 |
1.2 |
||
Tensile strength |
GB/T1040 |
MPa |
39.2 |
61 |
40 |
25 |
|
Tensile yield stress |
GB/T1040 |
MPa |
22 |
20 |
|||
Tensile elongation at break |
GB/T1040 |
% |
≥350 |
60-300 |
60-120 |
≥350 |
|
The impact on the Gap of simply supported beam |
GB/T1043 |
KJ/m |
Continuously |
5.9-10.8 |
10 |
27 |
|
Rockwell hardness |
GB/T9342 |
40 |
85-120 |
33 |
|||
Friction coefficient |
Three petrochemical Law |
0.05-0.11 |
0.37 |
0.4-0.6 |
0.4 |
0.58 |
|
Wear rate |
Three petrochemical Law |
% |
21 |
100 |
210 |
210 |
140 |
Scaling |
Non- scaling |
Scaling |
|||||
Corrosion-resistant |
Merit |
Average |
Average |
Average |
Average |

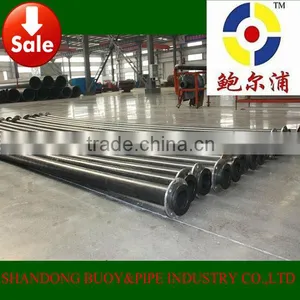

Photo of pipes for dredging:
Q: Why should you use UHMWPE Dredge pipes?
A: Because it will save your time and money!
Q: How can UHMWPE pipes do this?
A:UHMWPE Piping Advantages:
Q: Why should you choose Shandong Buoy&Pipe Industry Co.,Ltd
A: a)Professional: we have more than 10 years experiences in UHMWPE field, with professional R&D team, and technology team
b) Increasing Production Capacity: with 25 production lines, annual production capacity could reach more than 20,000 metric tons, with various specifications ranging from 77mm to 1200mm, or customized.
c) Honest: we are committed to supply the best UHMWPE pipes with 100% virgin material for customers.
Packaging: by poly bag or wooden box according to customers requirement
Shipping: by containers
