pizza production process
Specifications
| 1. Output Capacity | 600 pcs per hour |
| 2. Sheet thickness | 1-20 mm |
| 3. Roller size | 3.5" x 20" long |
| 4. Power | 1.5 HP motor |
| 5. Voltage | Single phase for 110V or 220V |
| 6. Dimension | 37" x 28" x 37" (830 x 700 x 830 mm) |
| 7. N. W. | 298 lbs (135 kg) |
| 8. Scrapers | Synthetic, spring-loaded |
| 9. Bearings | Permanently lubricated sealed ball bearings |
| 10. Certificate | ETL US/Canada electrical approval |
| 11. Country of Origin | 100% TAIWAN MADE |
Features
- Pizza, Pasta, Focaccia, Roti, Calzones, Dessert Pie Crusts, Flour Tortillas, Pita Bread.
- Heavy gauge stainless steel construction for years of dependable performance.
- Synthetic, non-stick rollers standard (metallic rollers are also available).
- Ergonomic design for ease of use and simplicity.
- Sheets dough to a uniform thickness in seconds.
- Simple handle adjustments for precise thickness settings.
- Spring-loaded scrapers can be quickly and easily removed for changing.
- Heat-treated steel alloy gear mechanism for durability.
- Small footprint can be suitable for countertops.
- Large hopper to accommodate large pieces of dough.
- Push button control offers one-touch convenience.
- Overload protection & Safety device conform to Health standard.
- Power white paint and heat treated to resist rust, scratches, and dents
Inside heavy duty PE-Rollers

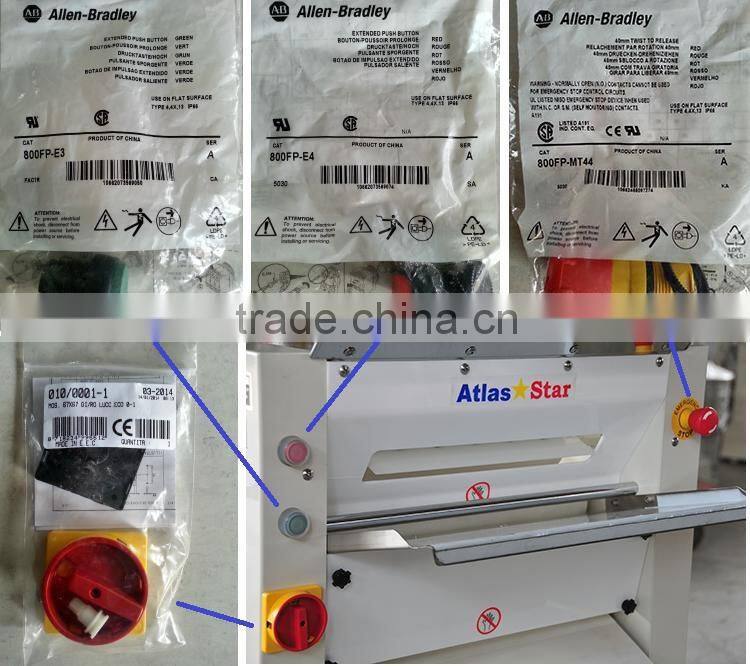

Safety switches - ON/OFF switch, Start button, Stop button, Emergency Stop and Limit switch.
- Start push button - From "AB" Allen-Bradley. Green 800FP-E3. UL/CAS certificates.
- Stop push button - From "AB" Allen-Bradley. Red 800FP-E4. UL/CSA certificates.
- Emergency Stop - From "AB" Allen-Bradley. Red 800FP-MT44 UL/CSA CE certificates.
- Power ON/OFF switch - Made in E.E.C. (European Economic Community) CE certificate.
Safety devices for protecting operators
- Safety Limit Switch - From "SHINOZAKI" AZD S11, CE/UL certificates.
- Cooling Fan - From "Taiwan Kaku Technology Co., Ltd." KA8225HA2SAT, CE/US certificates.
- Circuit Breaker - From "KUOYUH" 98 series 15A 32VDC 125/250VAC, Made in Taiwan, UL/TUV/CCC/Rohs certificates.

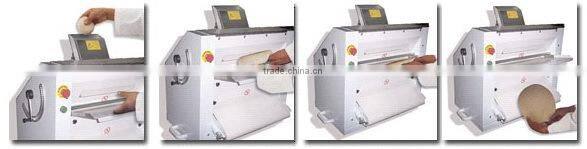

Operation
- Put the pizza dough from the top chute.
- The first rolling cycle will make the pizza sheet in long shape and come out from S/S plate.
- Turn the long shape dough 90 degree and make the second rolling cycle.
- The oval shape pizza base will come out from conveyor belt automatically.
Wooden Crates Packing - A wooden crate has a self-supporting structure, all six of its sides must be put in place to result in the rated strength of the container.
Fumigation / Heat Treatment (ISPM 15 rolles) - An international shipping rule on wooding packing restrictions, relate to prevent the spread of plant pests and diseases throughout the world, when shipping international ocean freight using packing materials and supply containing wood.
Certificate of Origin (C/O or COO) : Taiwan - Attesting the goods in a particular export shipment have been wholly produced, manufactured or processed in Taiwan. (If necessary)
Trade terms: FOB Taiwan, CFR, CIF
Payment methods: T/T (Bank transfer), L/C sight, D/P, Paypal, Western Union, Moneygram, Escrow.
Payment terms: 30% deposit and 70% before shipment.
Delivery: About 18-25 days after deposit.
Shipping: By sea or air courier
Warranty: One year full parts provided.
Certificates
DUNS (D-U-N-S), is a proprietary system developed and regulated by Dun & Bradstreet (D&B) that assigns a unique numeric identifier, referred to as a "DUNS number" to a single business entity.
Intertek ETL Mark is proof of product compliance (electrical, gas and other safety standards) to North American safety standards. Authorities Having Jurisdiction (AHJs) across the US and Canada accept the ETL Listed Mark as proof of product safety.
Factory
Customer's Pizza Shop / Exihition Show
