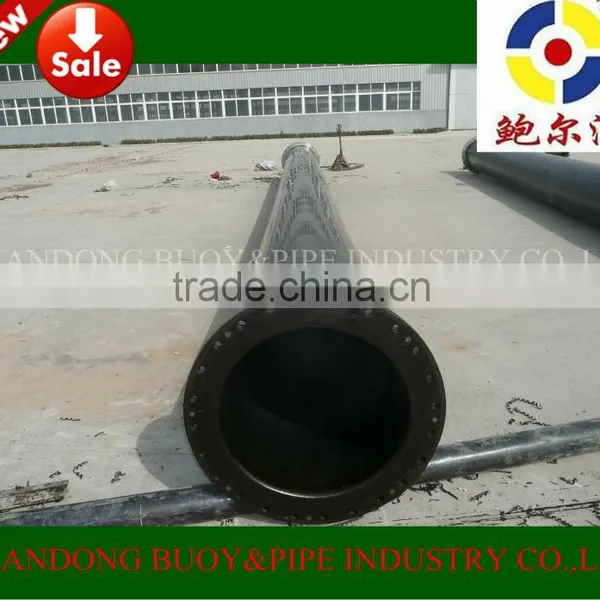

UHMWPE Pipes for Water Supply or Drainage
Longer Life
With a wear resistance 4 to 7 greater than Q235 Steel or 10 times that of HDPE (PE100) pipes under the same operating conditions, UHMWPE Pipe will give you far superior life under most operating conditions.
Non-Scaling
Because of its very smooth surface and self-lubricating properties, UHMWPE Pipe has far superior anti-scaling properties to any other pipeline on the market today. A non-stick factor that leads to its strength in the marine industry, preventing barnacle formation.
Lower Maintenance Costs, Less Maintenance Time, Less Downtime, Less Loss of Production
The far superior collaboration of wear resistance and weight reduction (0.93 SG) means the time between pipe replacements and/or rotations can be increased whilst simultaneously reducing installation management constraints of lifting gear and excavation requirements.
Reduced Pumping Costs
Along with the benefits mentioned above, UHMWPE Pipes also offer significant cost savings through increased pumping efficiency. With a surface roughness of 0.00022mm UHMWPE Pipe is extremely smooth and has resultant properties superior to PTFE (Teflon). Quantifying by example UHMWPE has a friction coefficient of 0.05, compared to 0.28 for HDPE or 0.58 for Steel (ISO 8295).
This means less friction, less pressure loss and greatly reduced energy inputs to deliver the same result.
Chemical and Corrosion Resistance
With chemical resistance second only to PTFE (Teflon), UHMWPE pipe will offer superior life to other pipeline products in acidic or corrosive applications under 85 degrees C.
Lower Installation Costs
The strength of UHMWPE pipes can offer many savings in installation costs:
- High compressive strength means reduced size or eliminating excavations (greater than 1.5x that of HDPE)
- Combination of strength and flexibility (>250% tensile elongation) means concrete bases are not required on wetlands and difficult terrain
- High strength and flexibility provides greater protection against damage due to ground subsidence, earthquakes or other unexpected movement and loading of the pipeline
- Can be laid directly on the seabed
-
Performance comparison of UHMW-PE pipe for dredging with other materials
Item
Experimental methods
Units
UHMWPE
PA66
PVC
PE
Steel Pipe
Average molecular weight
GB1841
1.5×106
5×105
Density
GB1033
G/Cm3
0.935
1.13-1.15
1.4
0.945
7.8
Water absorption
ASTMD-570
%
0.01
3.8
0.07-0.4
0.01
Melting Point
ISO11357.3
136
255
160
129
Heat distortion temperature0.46MPa
GB1634
85
182-224
54-73
71
Linear expansion coefficient
ASTMD-696
10-4/
1.5
0.8
1.2
Tensile strength
GB/T1040
MPa
39.2
61
40
25
Tensile yield stress
GB/T1040
MPa
22
20
Tensile elongation at break
GB/T1040
%
≥350
60-300
60-120
≥350
The impact on the Gap of simply supported beam
GB/T1043
KJ/m
Continuously
5.9-10.8
10
27
Rockwell hardness
GB/T9342
40
85-120
33
Friction coefficient
Three petrochemical Law
0.05-0.11
0.37
0.4-0.6
0.4
0.58
Wear rate
Three petrochemical Law
%
21
100
210
210
140
Scaling
Non- scaling
Scaling
Corrosion-resistant
Merit
Average
Average
Average
Average
Company: Shandong Buoy&Pipe Industry Co.,Ltd
Business type: Manufacturer
Products: UHMWPE pipes&UHMWPE Navigation Aids
Employees: about 200 employees, professional R&D team, professional engineers& installation team
Production Lines: 25 lines, with annual production capacity of 10,000 metric tons
UHMWPE Pipes Sizes: Inner Diameter 77mm to 1200mm
UHMWPE Navigation Buoy Size: CMB1.0M, CMB1.2M, CMB1.5M, CMB1.8M, CMB2.1M, CMB2.4M, CMB3.0M
What is UHMWPE?
Ultra-high molecular weight polyethylene (UHMWPE) is a new kind of engineering thermoplastics with more than 3 million viscosity-average molecular weight. Ultra-high molecular weight polyethylene pipe has superior performance over conventional HDPE pipe such as much high wear resistance, impact resistance, excellent resistance to internal pressure strength, resistance to environmental stress cracking, intrinsically self-lubricating, anti-adhesion, low temperature resistance and excellent chemical resistance.
Molecular Weight Comparison between UHMWPE&HDPE: The higher molecular weight, the better wear resistance .
Material;Ultra high molecular weight polyethylene material,3.5 million to 9.2 million(Ticona GUR material)
Production Lines: 25, with annual production capacity of 20,000 metric tons

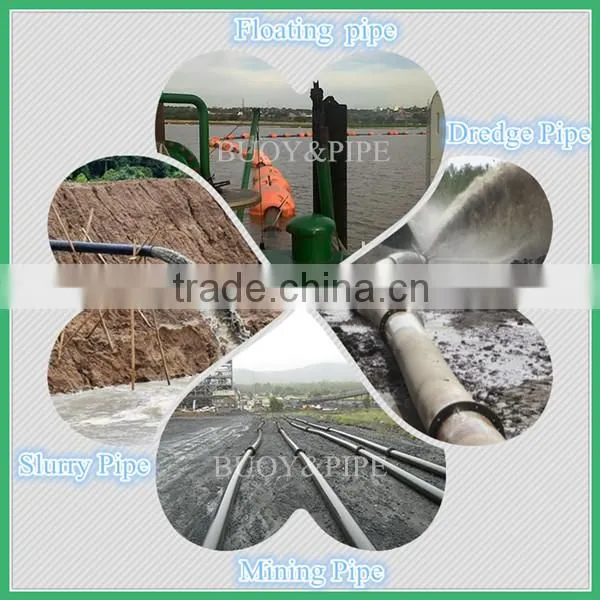

UHMWPE Pipe Applications:
For the Packaging & Shipping, please refer to the pictures:
