Help CenterHot Selling Polyethylene UHMW Pipe
Related Products
Hot Selling UHMWPE Polyethylene Pipes:
UHMWPE pipe introduction:
Material: Ultra high molecular weight polyethylene, with molecular from 2.5 million to 9.2 million, China material and Germany material available;
Sizes: 6'', 8'',10'',12'',14'',16'',18'',20'',22'',24'',26'',30'',32'',34'',36''
I.D77mm to I.D1200mm
Type: UHMWPE pipes, UHMWPE-Steel Composite Pipes
Working pressure: 2 bar to 40 bar
Connection: Steel flanges or Spigot fusion welding
Raw Material:

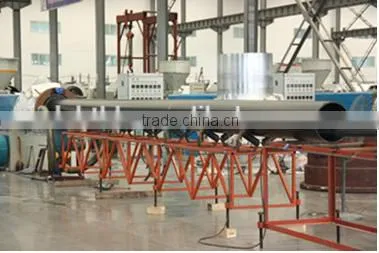

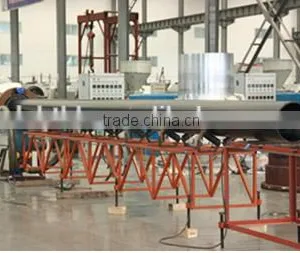

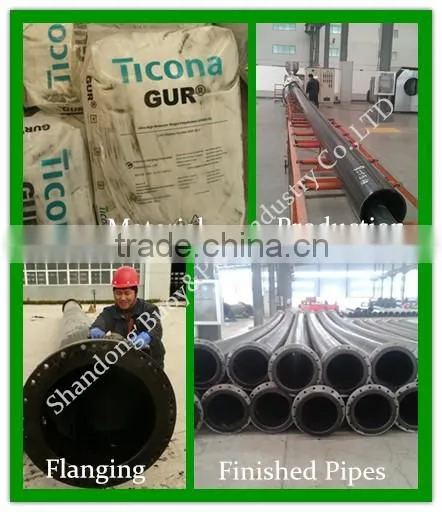

Ultra high molecular weight polyethylene, with molecular weight more than 2.5 million, the material comes from Shanghai, Beijing, and Celanese from Germany;With longer molecular chain, the UHMWPE materials have outstanding proerties than other plastics. It is extruded by special processes, we have our own formulas and spcially designed moulds.
UHMWPE Pipe Advantages:
1. Excellent Wear Resistance:
Of all the pipe materials, UHMWPE pipes exhibit the smallest abrasion index. Of all the plastic pipes presently available,
the anti-abrasion performance of UHMWPE is 18 times higher than phenolic polymers, 6 times higher than polyamide polymers (PA66), 5 times higher than poly(tetrafluoroethylene) (PTFE) as well as being 6.6 times higher than carbon steel, 5.5 times higher than stainless steel and 27 times higher than copper, ideal for sand and slurry discharging;
2. Low surface roughness, Higher flow rate, Saving Pumping Costs
UHMWPE pipes have smooth interior surfaces which assure low friction loss and high flow rate. Because UHMWPE pipe do not rust, pit, scale, or corrode, the high flow rate continues for the life of the piping system. The internal roughness of UHMWPE pipe is only 0.0010 mm thus the pressure loss of UHMWPE pipe is about 1/10 of steel pipes resulting in an over 20% of increase in transfer efficiency.Since the internal wall of UHMWPE pipes is very smooth this practical prevents fouling or scale formation on the inner wall of the pipe and hence there is no drop in pumping efficiency
3. Minimized Maintenance time&Costs, Less Downtime, Less loss of production
The far superior wear resistance of UHMWPE pipe will significantly increase the time between pipe replacements and rotation, which will largely reduce:
a. reduced maintenance costs and time;
b. reduced downtime for maintenane and less loss of plant production time;
4. High strength, drurable material
UHMWPE pipes are highly resilient(Elongation reaches 500%), tough and durable products that have high-tensile strength (30Mpa) and high-impact strength(Notched Izod Impact strength reaches 166kj/m2). They can withstand high pressure for long periods. In this case, the UHMWPE pipes could withstand various impacts from sand and slurry;
5. Corrosion Resistance
With higher structure stability ,UHMWPE pipes are corrosive resistant to sea waters. No electro chemical corrosion, no need anti-corrosive coating;
6.Lightweight
UHMWPE pipes are lightweight – approximately one-half the weight of aluminum and one-eighth the weight of steel – reducing transportation, handling, and installation costs.
6.Easy Connection:

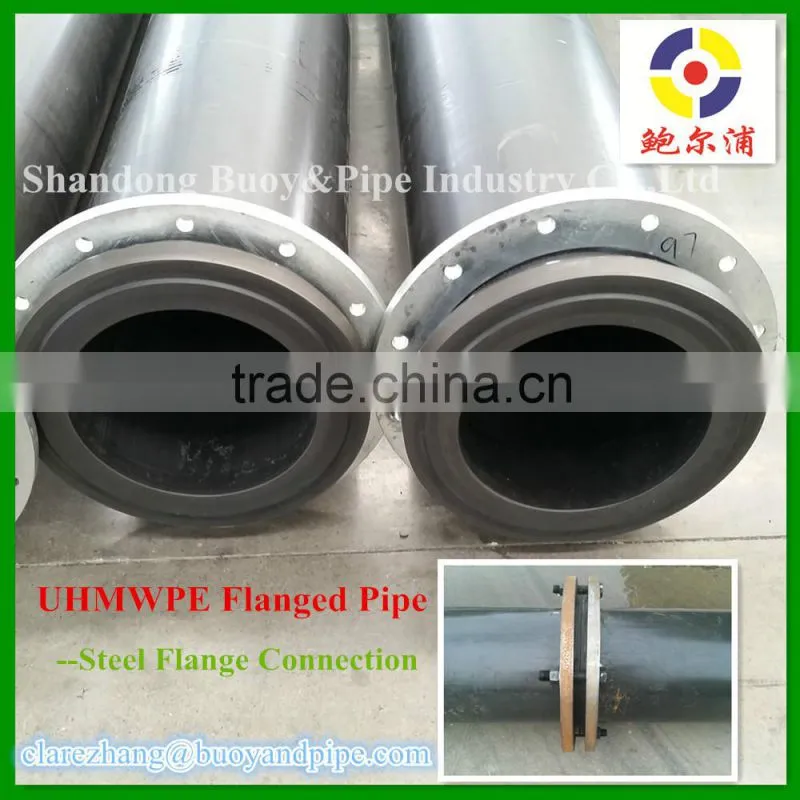

The UHMWPE pipelines could be connected by steel flanges, easy to install and dismantle at the working sites.
Furthermore, the UHMWPE pipe ends will be turned up to work as gaskets, the flat sealing face and good verticality will keep good sealing and well protect the flanging part not easy to be worn out.
- Mining Industry -UHMWPE pipes are used as transportation pipelines for mine slurry, tailings, sediments and ore concentrates.
- Coal power plants – UHMWPE pipes are used as pipelines for the transport of coal slurry, fly ash and the fly ash water slurry.

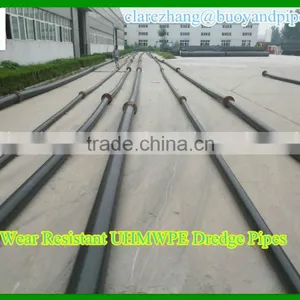

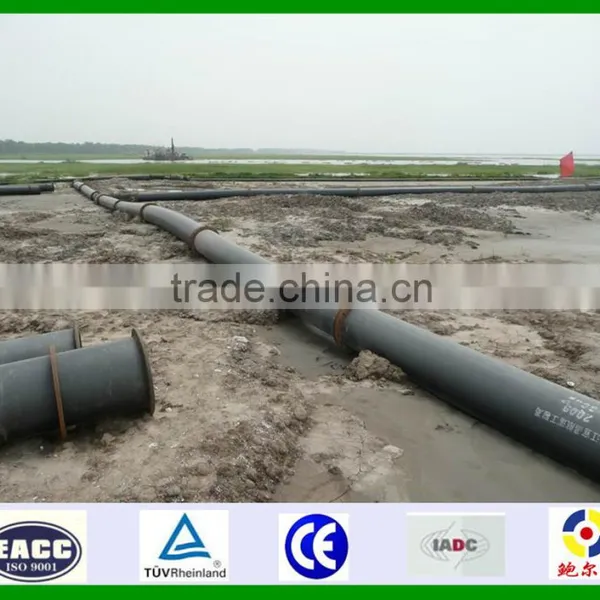

- Dredging Industry – UHMWPE pipes are used to transport mud and sand during dredging of rivers, habours, dams and lagoons.
- Construction Industry -UHMWPE pipes are used transporting the slurry of the mixed concretes and shotcretes from pump trucks as well as drilling sand/rocks from underground tunneling
- Ultra PE abrasion-resistant piping systems are manufactured to meet specific applications for operations moving highly abrasive materials, :Mining – mineral, phosphate and coal mining; feed, waste and debris lines; in-plant piping; tailing lines, backfill; waste disposal; slurry transport; raw ore streams; in-process streams; paste; shotcrete
- Product Conveyance – dilute and dense phase pneumatic movement operations for powder and bulk materials such as cement; coal combustion byproducts; slurry transport; biomass feedback; glass, frit and plastics; food products.
- Fossil Fuel Power Plants – FGD reagents (wet or dry); pulverized fuel; fly ash; bottom ash; economizer ash; coal combustion byproducts
- Mills and Foundries – in-plant piping; blow lines; storage; waste disposal; slag; sand lines.
OEM Service is available;
Samples will be available;
Customized Sizes are available;
Fast deliever time and competitve price
Shandong Buoy&Pipe Industry Co.,Ltd, is an industry leader of UHMWPE products, including UHMWPE plastic pipes, buoys, light towers and plates, used for different marine projects;
Our company is involved in the IALA guideline revisement for plastic buoys, which will include UHMWPE buoys in the near future;
Our company have 25 production lines, with annual prodcution capacity of 30,000 tons, the diameter of the pipes ranging from 70mm to 1200mm;
We have professional engineers and R&D team, have independent research and production capability.
1. Wear Resistance Comparision Between UHMWPE pipes and HDPE pipes in dredging field:
2. Comparisons between our UHMWPE pipes and Other company's UHMWPE pipes:
