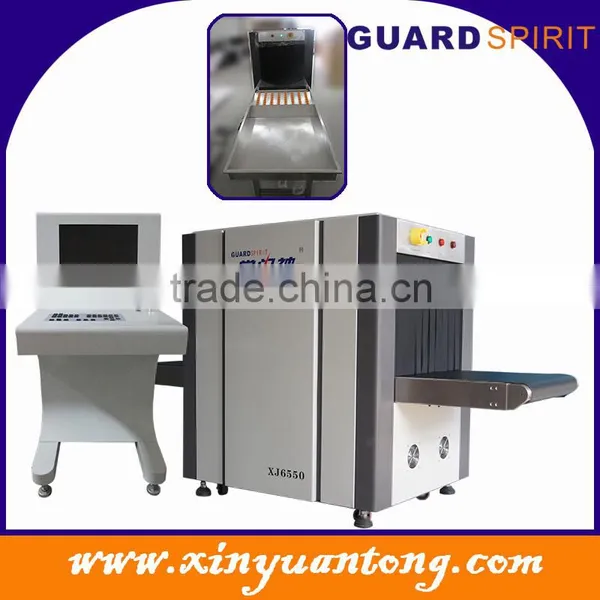

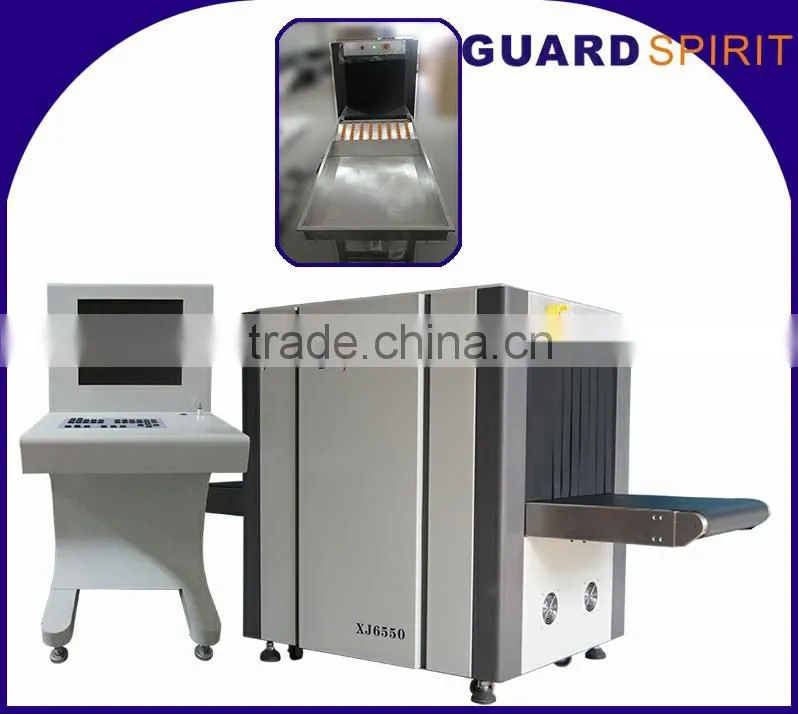

Airport X-ray Baggage Scanner XJ6550

Airport X-ray Baggage Scanner XJ6550

Main datas

Tunnel Size : 650(W)×500(H)mm

Power Requirement: 220V AC (±10%) 50±3Hz

Power consumption:  1.0KW (Max)

Noise level:  <58dB

Conveyor Speed: 0.22m/s

Conveyor Max Load: 170 kg

Wire Resolution: 40AWG

Spatial Resolution: 1.0mm Horizontal and Vertical

Steel Penetration: 40mm

Single inspection dosage: < 1.2μGy

Leakage radiation: <0.1µGy/h

Film Safety: Guarantee ISO1600 Film

X-Ray Generator Specifications

Tube Current:0.4~1.2MA(adjustable)

Anode Voltage:100~160KV(adjustable)

Cooling: Sealed oil bath with forced air

Duty Cycle: Rated for 100%Duty Cycle

Beam Direction: Upward

Beam Angle: 60°

Detector: L-shaped Array,24bit, dual-energy

Image Display

19’’ High Resolution LCD Monitor

Display Resolution: 1280*1024;24 bit/pixel Color

Contrast Sensitivity: 24 Visible Levels, 4096 Gray Level

Image storage: 100,000 pictures in real time (can be customized)

Zoom: 64 Times Enlarge, Whole screen continuous observation

Multi-Energy (M) color material identification: Organic objects in orange color, inorganic objects in blue color, mixture in green color

Edge enhancement: Object contour edge is more distinct

Super image enhancement: Image detail is more distinct

High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly

Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.

Brightening/dimming: Increase/Decrease brightness of image

Image recurrence: Display the previous twenty images and process any one of them

Image restoration: Restore image to initial status

Assist to detect drug and explosive powder

Special features:

Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time.

Safety ray: Ray is transmitted under automatic control, avoiding the error

One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient

Eagle eye: Capable of expediently observing the magnifying area

Self-diagnosis function: Give message automatically if malfunction for prompt maintenance

Environment Specifications:

Operating temperature/humidity: 0℃ ~ 45℃/20% ~ 95% (Non-condensing)

Storage temperature/humidity: -20℃ ~ 60℃/20% ~ 95% (Non-condensing)

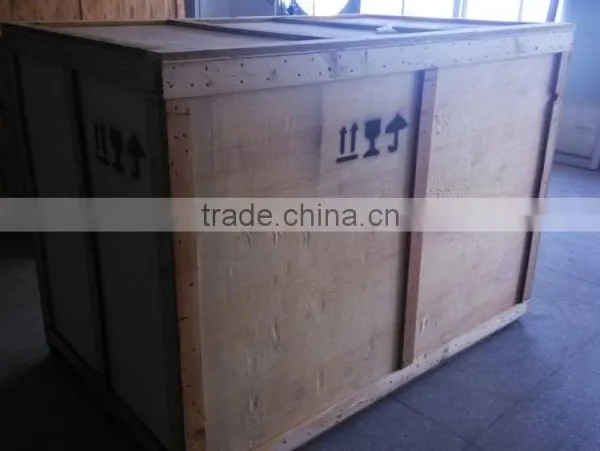

Packages:

Two wood boxes for 1 unit of XJ6550.

Package size: 240*109*144 cm ; 71*71*141 CM

Gross Weight: 660 KGS
