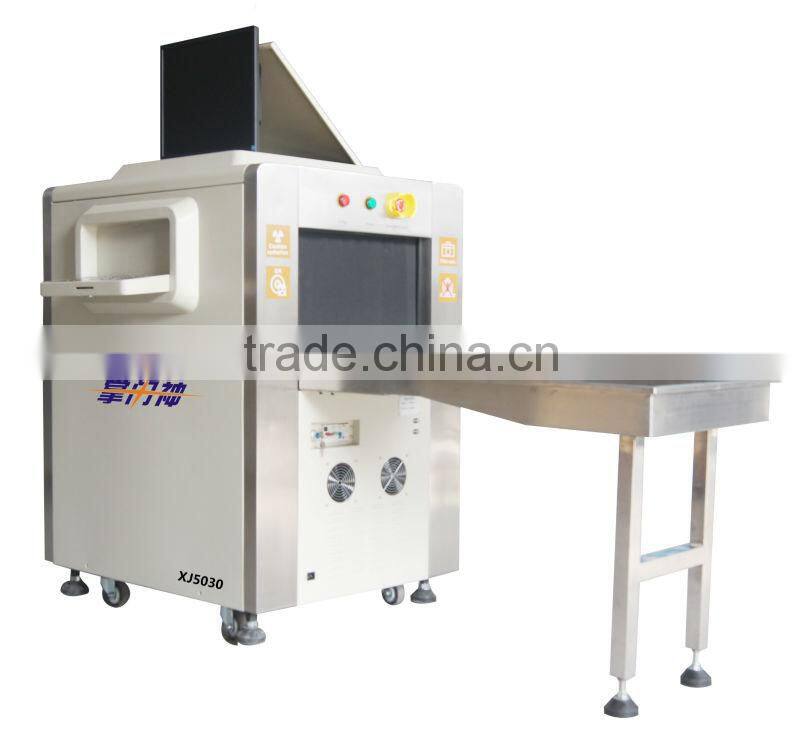

Security Baggage Scanner.subway Security Ray Scanner.x-ray Safety Baggage Checking Machine

Security baggage scanner.subway security ray scanner.x-ray safety baggage checking machine


General Specifications

Tunnel Size : 500(W)×300(H)mm

Conveyor Speed: 0.22m/s

Conveyor Max Load: 150 kg

Single inspection dosage: < 1.32μGy

Leakage radiation <0.05μGy h

Wire Resolution: 0.0787mm metal line

Steel Penetration: 38MM

Film Safety: For ISO 1600

X-RAY GENERATOR

Orientation: Upward

Tube Current:0.4~1.2MA(adjustable)

Anode Voltage:100~160KV(adjustable)

Angle: 60°

Generator cooling/working periods:

Sealed oil bath with forced air/100%

OPERATING ENVIRONMENT

Storage Temperature: -20oC to 60oC

Operating Temperature: 0oC to 45oC

Relative Humidity:

20 to 95% non-condensing

System Power: 220 VAC (±10%) 50±3HZ

Power wastage: 1.0 KW (Max)

Noise<65DB

X-RAY Sensor: L-shaped array detector, 24bit

More details,please feel free to contact us on-line.

Certificate

Project & Exhibition

2012 18^TH African union summit meeting

2011 Universiade Shenzhen Metro

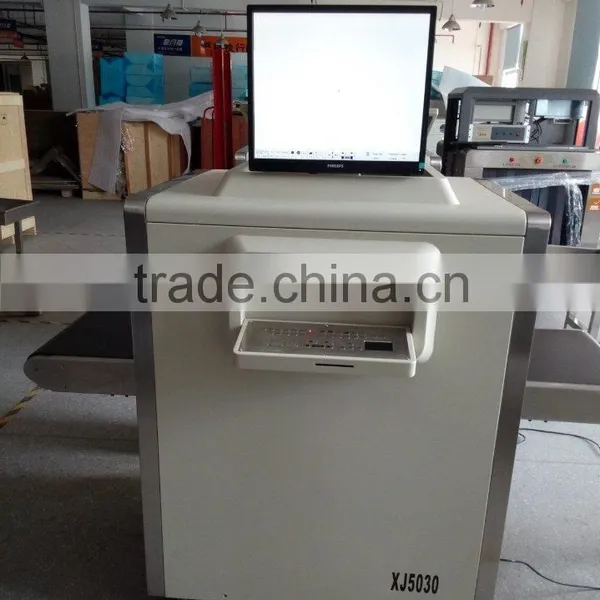

XJ5030 NEW VERSION

More details,please contact with us on-line.
