UHMWPE/HDPE/Steel Dredger Pipes With Floaters

Dredger Pipes:

 Company: Shandong Buoy&Pipe Industry Co., Ltd.

Products:  UHMWPE (Ultra high molecular weight polythene) pipe

 Production Capability: 25 production lines, with annual production capability of 10,000 tons

Business type: manufacturer and exporter

OEM service: Available

Specification: DN77-DN1200

            WT: 6mm-50mm

            Length: 1m-12m

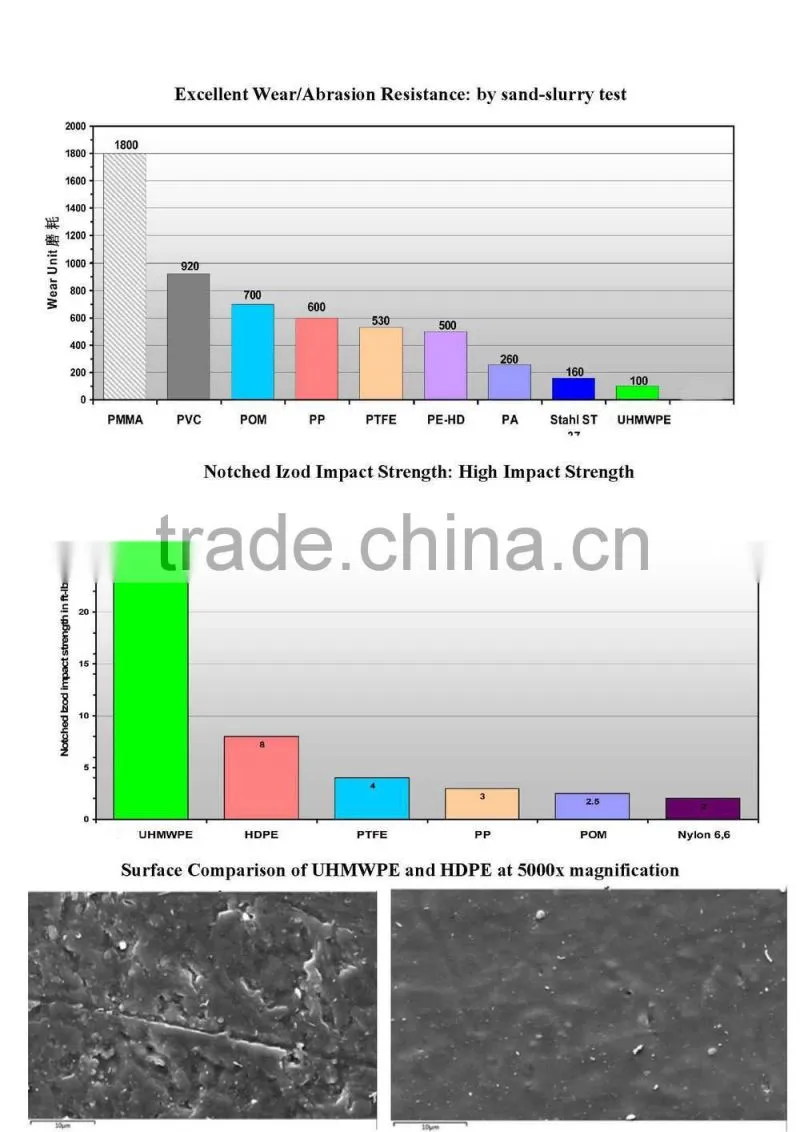

Benefits of UHMWPE Pipes:

 Longer Life

 With a wear resistance 4 to 7 greater than Q235 Steel or 10 times that of HDPE (PE100) pipes under the same operating conditions, UHMWPE Pipe will give you far superior life under most operating conditions.

 Non-Scaling

 Because of its very smooth surface and self-lubricating properties, UHMWPE Pipe has far superior anti-scaling properties to any other pipeline on the market today. A non-stick factor that leads to its strength in the marine industry, preventing barnacle formation.

Lower Maintenance Costs, Less Maintenance Time, Less Downtime, Less Loss of Production

 The far superior collaboration of wear resistance and weight reduction (0.93 SG) means the time between pipe replacements and/or rotations can be increased whilst simultaneously reducing installation management constraints of lifting gear and excavation requirements.

Reduced Pumping Costs

 Along with the benefits mentioned above, UHMWPE Pipes also offer significant cost savings through increased pumping efficiency. With a surface roughness of 0.00022mm UHMWPE Pipe is extremely smooth and has resultant properties superior to PTFE (Teflon). Quantifying by example UHMWPE has a friction coefficient of 0.05, compared to 0.28 for HDPE or 0.58 for Steel (ISO 8295).

 This means less friction, less pressure loss and greatly reduced energy inputs to deliver the same result.

Company: Shandong Buoy&Pipe Industry Co.,Ltd

Shandong Buoy&Pipe Industry Co.,Ltd is specialized in manufacturing UHMWPE products(UHMWPE pipe and UHMWPE buoy).

 Production Equipments: 25 Production Lines

Introduction of UHMWPE Dredger pipe:

 Ultra-high molecular weight polyethylene (UHMWPE) is a new kind of engineering thermoplastics with more than 3 million viscosity-average molecular weight. Ultra-high molecular weight polyethylene pipe has superior performance over conventional HDPE pipe such as very high wear resistance, impact resistance, excellent resistance to internal pressure strength, resistance to environmental stress cracking, intrinsically self-lubricating, anti-adhesion, low temperature resistance and excellent chemical resistance

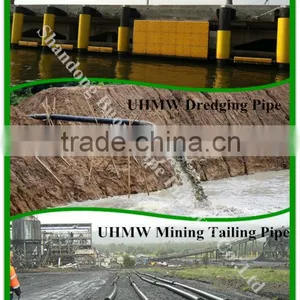

Key Applications

UHMWPE Material: 3.5 Millon China Material or Ticona GUR material

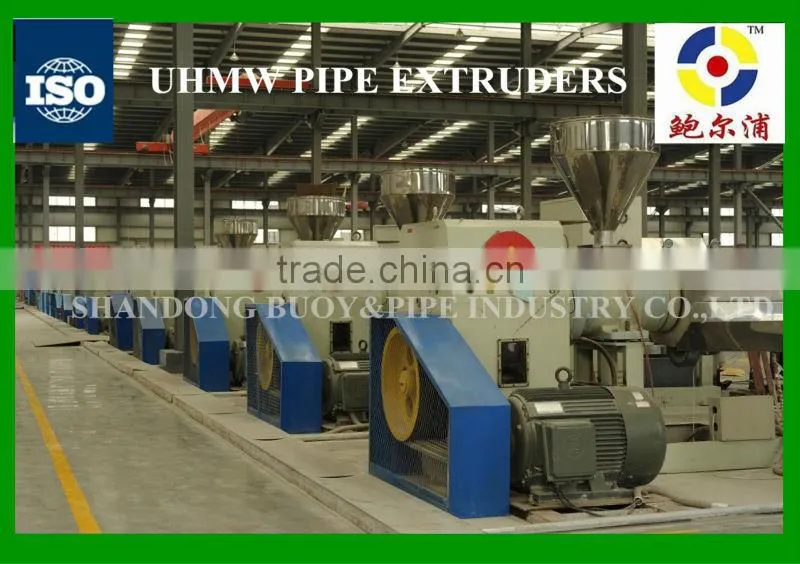

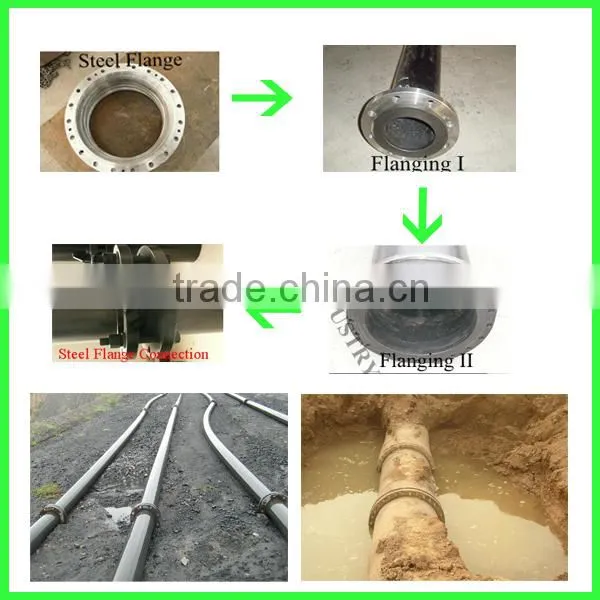

UHMWPE Pipe Production:

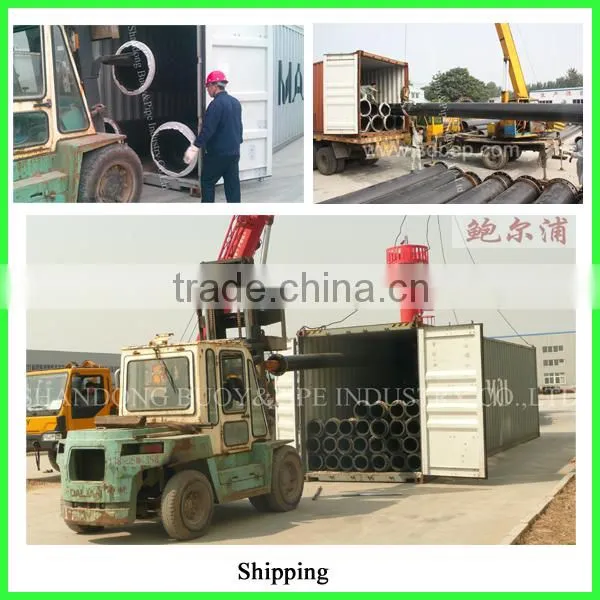

UHMWPE Pipe Loading:

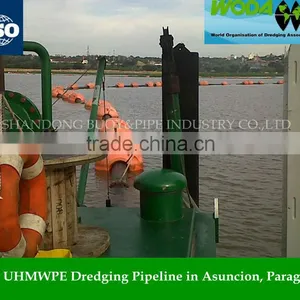

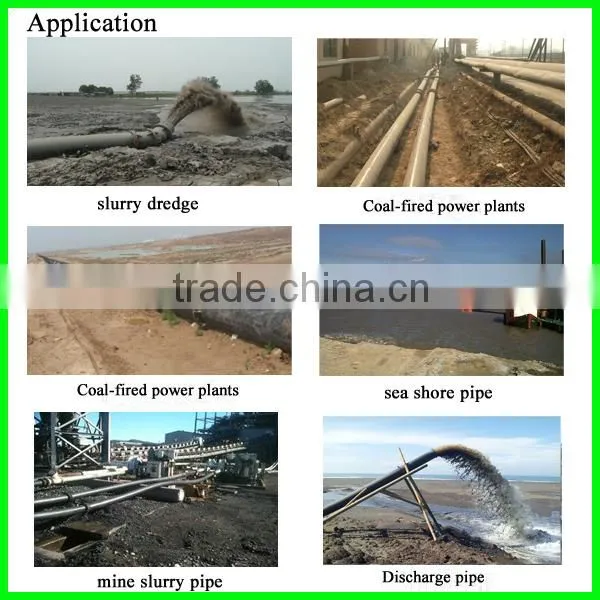

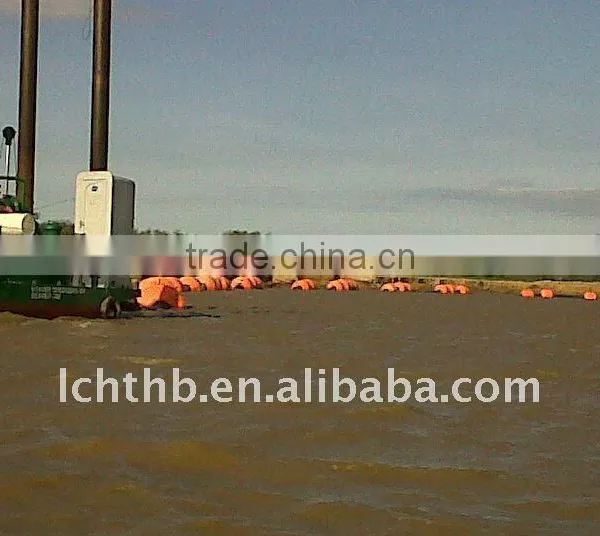

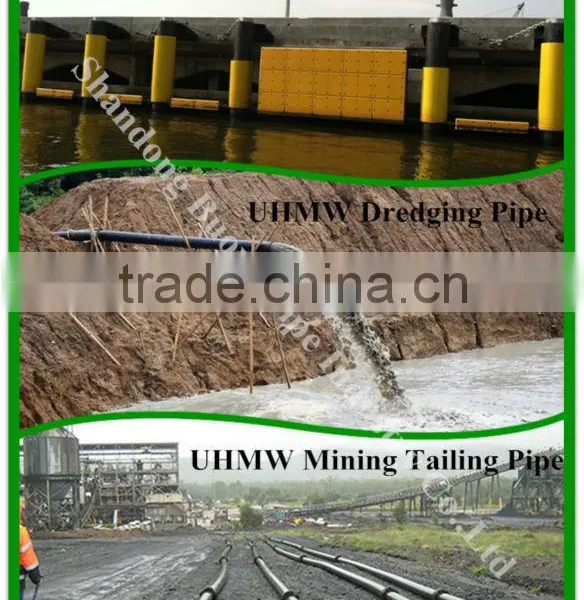

UHMWPE Pipe Application:

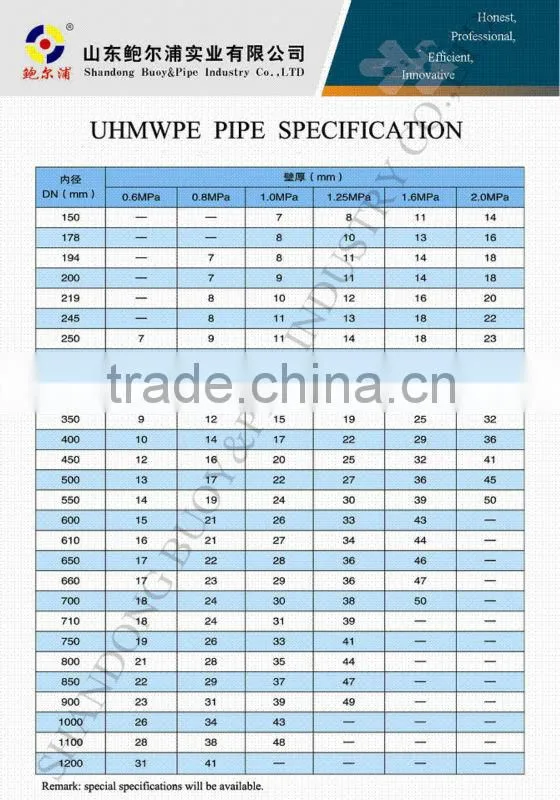

UHMWPE Dredger Pipe Specification:

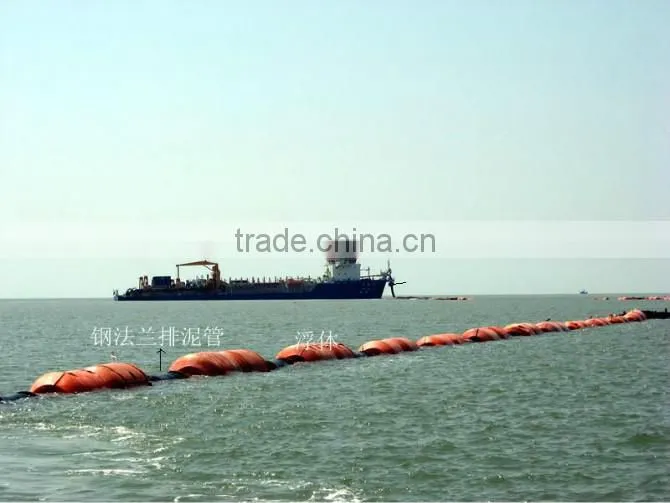

12'' UHMWPE Dredging Pipe Images:

The UHMWPE pipes will be packed by poly bags, shipped by 20GP container, 40GP container, 40HQ container

Q: What's the difference between HDPE pipe and UHMWPE pipe?

A: the molecular wieght for HDPE pipe is only 30,000-50,000, however, the UHMWPE pipes is 3.5 million to 9.2 million. The higher molecular weight enables UHMWPE pipes to have a much better quality than HDPE pipes.

Q: What's the advantages of UHMWPE pipes compared with HDPE pipes?

A:   a) Wear Resistance: the wear resistance of UHMWPE material is the top among engineering plastics, It is 10 times better than HDPE material;

      b) Higher pressure bearing capability:  with 2 times better of tensile strength  than HDPE pipes, the UHMWPE pipes could bear higher  working pressure. In this case, with the same internal diameter, the UHMWPE pipes could have thinner wall thickness to bear same working pressure.

Q: What's the advantages of Shandong Buoy&Pipe Industry Co.,Ltd?

A: a). Our company began to produce UHMWPE pipes since 2003, with 25 production lines, we have annual production capacity of 10,000 tons.

 b).Various Specifications: diameter ranging from I.D77mm to I.D1200mm. We are specialised in research and production of large diameter UHMWPE pipes.

c). Good quality: 100% virgin UHMWPE material is used, China material with 3.5 million,Ticona GUR 4120 and GUR4150  material also availabel for pipe production.

 Our Mission:

                                             Completely specifications and high level service timely for you.

                                                 Larger production capability and shorter lead time for you.

 Superior Quality and competitive price for you.

                                                                           And OEM is also permitted for you.

Feel free to call ‘ 86-189 6356 5106 ’, our professional pipeline solution for you to solve any technical problems.
