UHMWPE pipe used in sea water treatment

UHMWPE material introduction :

Ultra-high molecular weight polyethylene (UHMWPE) is a new kind of engineering thermoplastics with more than1.5 million viscosity-average molecular weight. Ultra-high molecular weight polyethylene pipe has superior performance over conventional HDPE pipe such as very high wear resistance, impact resistance, excellent resistance to internal pressure strength, resistance to environmental stress cracking, intrinsically self-lubricating, anti-adhesion, low temperature resistance and excellent chemical resistance.

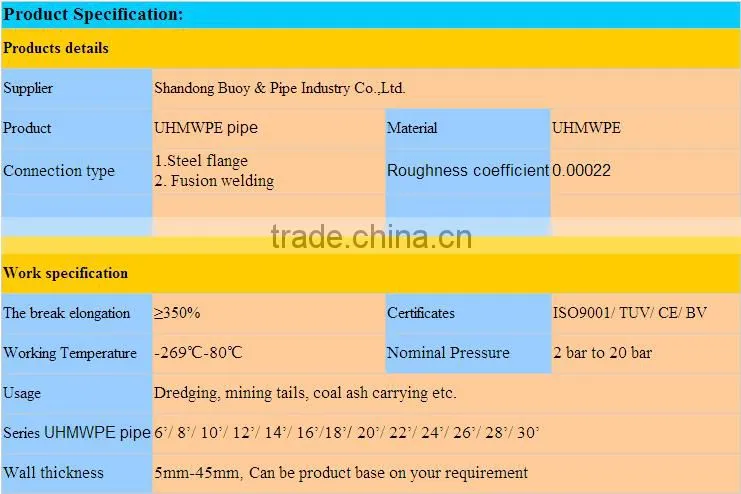

Detail size of the UHMWPE pipeline for your reference, customsied is available:

1, High efficiency: UHMWPE pipeline has a very low coefficient of friction and is self-lubricating, the roughness of the UHMWPE pipeline is 0.00022, while the HDPE pipeline is 0.01 and steel pipeline is 0.1. The smooth interior surfaces assure low friction loss and high flow rate. Therefore, the flow capacity of UHMWPE pipes is more than steel pipes. Under same flow rate, the UHMWPE pipes could save 20% fuel for the dredgers.

2, Wear resistant:  Higher Wear Resistance: Of all the pipe materials, UHMWPE pipes exhibit the smallest abrasion index. Of all the plastic pipes presently available, the anti-abrasion performance of UHMWPE is4 times of HDPE pipeline, 18 times higher than phenolic polymers, 6 times higher than polyamide polymers (PA66), 5 times higher than poly(tetrafluoroethylene) (PTFE) as well as being 6.6 times higher than carbon steel, 5.5 times higher than stainless steel and 27 times higher than copper, so UHMWPE pipes can profoundly increase the service lifespan of slurry pipes.

3, Anti corrosion: The UHMWPE pipeline with very stable chemical property, it is strong acid, strong base and so on.
4, Anti impact: The impact resistance of UHMWPE pipes is 2 times of PC, and 10 times of PTFE. With good impact resistance, which could withstand the great water hammer impacts from various sand, muds and slurries.

The UHMWPE pipes are continually extruded by special extruders and moulds. Here is the brief introduction of

UHMWPE pipe production:

1. The UHMWPE powder will be melted together with a small amount of paraffin, carbon black in high temperature

2. Different pipes with different diameter and wall thickness will need to make different moulds.

3. the length of the UHMWPE pipes could be cut according to customers requirements

4. The color of UHMWPE pipes is the original color of the raw material, and it is specially processed during production.

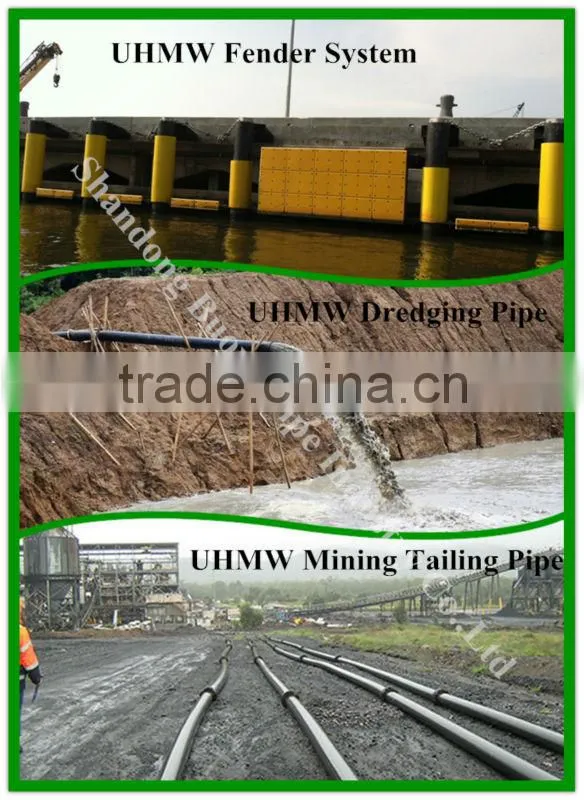

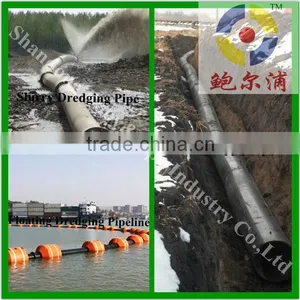

1,  Sand/ slurry/mud/ coral dredging project

2, Mine tailing discharging:

3, Port fender sleeve:

Business items:

Payment: 1, we prefer 100% fore T/T best, and if the total contract amount is below 50,000usd, we only accept 100% fore T/T .

        2, If the contract amount is great, we can accept your 30%fore t/t as deposit, and you can balance the left 70% with L/C.

        3, We can also use alibaba Escrow.

        4, if you have a much more better idea on the payment, we can communicate together.

Package: Pack in the container directly.

Delivery time: depends on you quantity.

More details please feel free to contact us directly:
