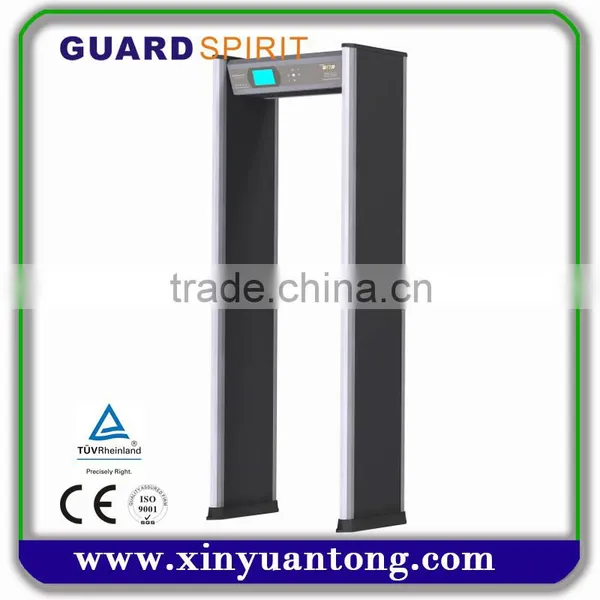

EAS System Walk through Metal Detector Door XYT2101-LCD

Technical parameter

Electric current: AC100V-240V/50HZ

Power: <30W

Net weight: 65KG

Workplace environment 0°C~+50°C

Alarm: Sound alarm & LED light alarm Different tones due to the size of metal,

Alarm volume: high, middle, low

Standard: GB15210-2003, CE

Characteristic & Function

Self-diagnosis: When turn on the detector, it will diagnose itself automatically.

Sensitivity adjustable: Each zone has 300 degree sensitivity (Sensitivity level 0-99,Three patterns: High,middle ,Low )

Using Electro-Magnetic Fields Technologies, sensitivity to ferrous and non-ferrous metals ,especially to ferrous metal

Digital operation keyboard on the base unit

5.7 inch LCD screen,both Chinese & English program, easy to operate.

Infrared remoter controller

Six/Eight/Ten mutual over-lapping detecting zones for option; Simultaneous alarm from multi- zones;

LED indicator light on both door panels,visable alarm simultaneously to ascertain the layout of metal articles

Microprocessor control on top unit, anti-interference and self-diagnose transmission channel to avoid internal and external interference.

It can detect about 40-50 persons per minute

Users can choose different operation models.

Friendly interactive man-machine interface

Protection with password : The top base unit can be locked,only the authorized person can operate with keys and correct password.

Infrared sensor control,Automatically count passengers and alarms

PVC material, waterproof and shockproof

Harmless to human body: is harmless with heart peacemaker, pregnant women, magnetic floppy, recording tapes, etc.

Network support: At most 20units Walkthrough Metal Detectors, 3KM away, can be controlled by a computer and work in LAN

Application

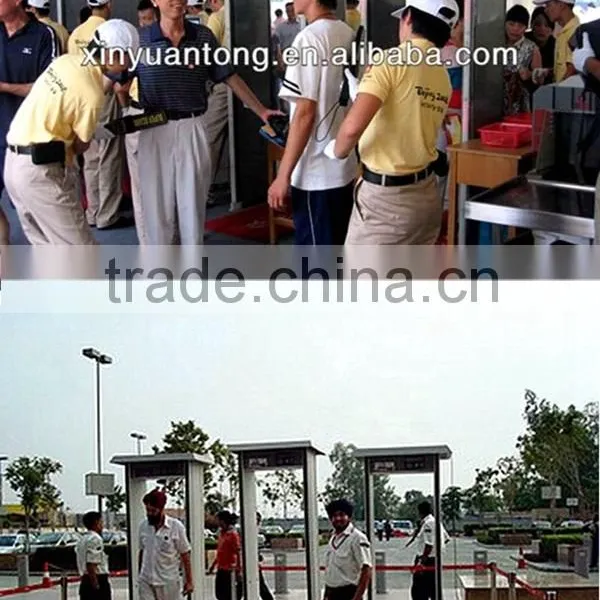

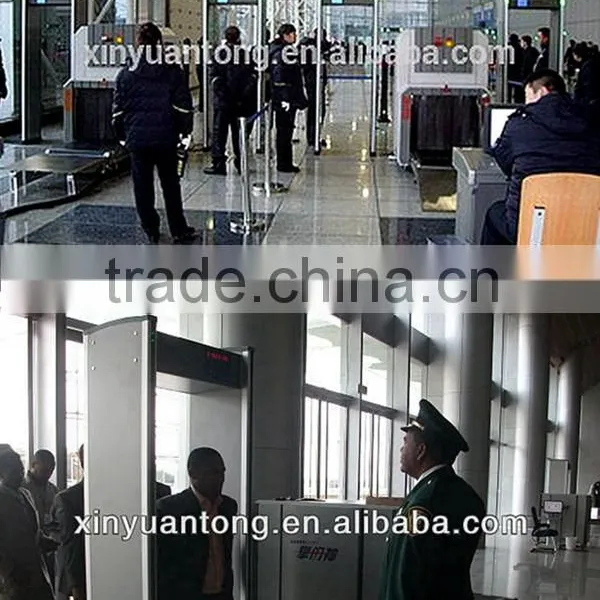

Walkthrough Metal Detector is popular in Airports, Banks, Embassies, Jail, Entertainment environments, Gymnasiums, Exhibition Centers and so on.
