UHMWPE pipes1.Wear Resistance
2.Water hammer resistance
3.Corrosive resistance
4.Fuel Saving
UHMWPE Floating Pipes:
Company: Shandong Buoy&Pipe Industry Co., Ltd.
Business type: Manufacturer
Shandong Buoy&Pipe Industry Co.,Ltd specialize in manufacturing UHMWPE products(UHMWPE pipe and UHMWPE buoy).
Production Lines: 23 UHMWPE pipe production lines, with annual production capacity of 30,000 metric tons.
UHMWPE Pipe Benefits:
Longer Life
With a wear resistance 4 to 7 greater than Q235 Steel or 10 times that of HDPE (PE100) pipes under the same operating conditions, UHMWPE Pipe will give you far superior life under most operating conditions.
Non-Scaling
Because of its very smooth surface and self-lubricating properties, UHMWPE Pipe has far superior anti-scaling properties to any other pipeline on the market today. A non-stick factor that leads to its strength in the marine industry, preventing barnacle formation.
Lower Maintenance Costs, Less Maintenance Time, Less Downtime, Less Loss of Production
The far superior collaboration of wear resistance and weight reduction (0.93 SG) means the time between pipe replacements and/or rotations can be increased whilst simultaneously reducing installation management constraints of lifting gear and excavation requirements.
Reduced Pumping Costs
Along with the benefits mentioned above, UHMWPE Pipes also offer significant cost savings through increased pumping efficiency. With a surface roughness of 0.00022mm UHMWPE Pipe is extremely smooth and has resultant properties superior to PTFE (Teflon). Quantifying by example UHMWPE has a friction coefficient of 0.05, compared to 0.28 for HDPE or 0.58 for Steel (ISO 8295).
This means less friction, less pressure loss and greatly reduced energy inputs to deliver the same result.
Chemical and Corrosion Resistance
With chemical resistance second only to PTFE (Teflon), UHMWPE pipe will offer superior life to other pipeline products in acidic or corrosive applications under 85 degrees C.
Lower Installation Costs
The strength of UHMWPE pipes can offer many savings in installation costs:
- High compressive strength means reduced size or eliminating excavations (greater than 1.5x that of HDPE)
- Combination of strength and flexibility (>250% tensile elongation) means concrete bases are not required on wetlands and difficult terrain
- High strength and flexibility provides greater protection against damage due to ground subsidence, earthquakes or other unexpected movement and loading of the pipeline
- Can be laid directly on the seabed
Pipe Floats:
It is used for floating pipe in the river,3 pairs of floats could have sufficient buoyancy to float each 12-meter-pipe in the water.
There are bolts and nuts to fix the floats on the pipes.

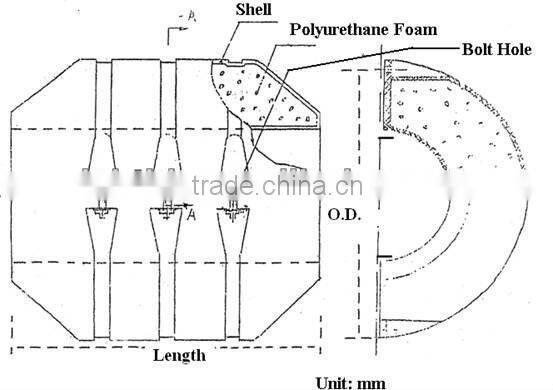

FLOATER STRUCTURE:
Floater Specification:
How to Select Dredging Pipeline Floaters?
The polyethylene floaters are usually used for the dredging projects, land reclamation projects in the world. They are the ideal floating material for pipelines.
When choosing the floaters, we must know the following points:
1. Buoyancy: usually the buoyancy need to be 30% higher than the pipelines weights(including 1.3 ration slurries). When the pipeline working, the floaters above the water surface should be about 1/4 of the height of steel pipes.
2. Weight: no less 3-5% than the ordered goods. The weight of the floaters is related to the hull weight and the foam’s density and volume. The foam density should be about 35kg/m³.
3. Plastify strength: the plasticized well floaters will have a flat and smooth surface without obvious particles, with best tensile strength
4. Foam’s density: about 35kg/m³,with tensile strength of 0.2 Mpa. There is a little bit flexibility without stick and crisp. The floaters have such properties will be the best and most durable floaters.

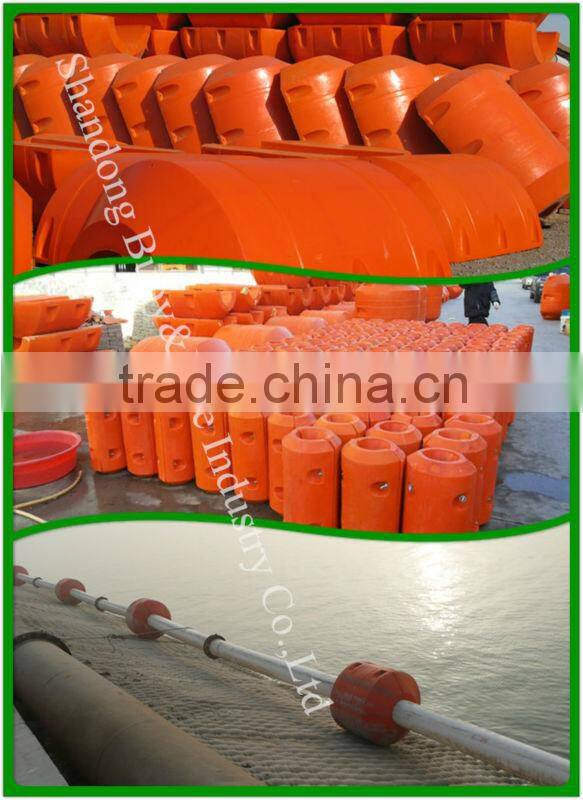

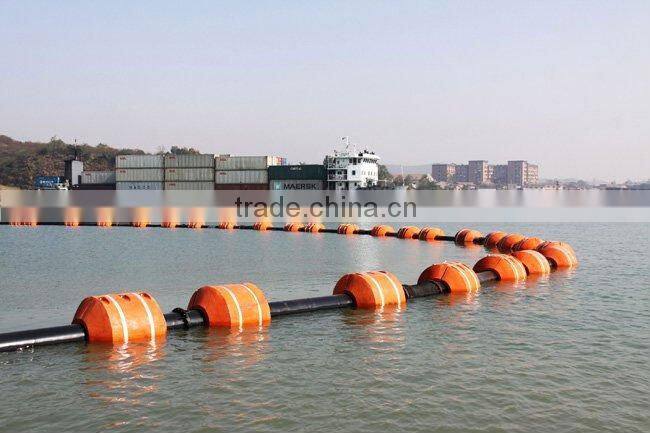

Floating Pipeline Images:
