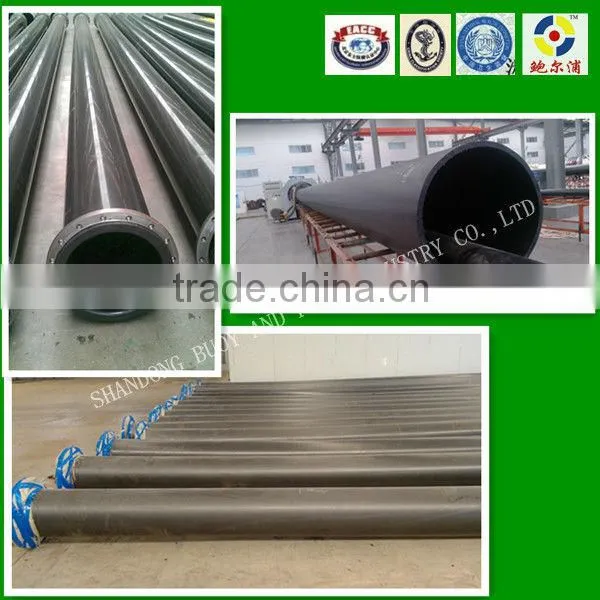

UHMWPE Dredge Pipe with Floats:
UHMWPE Dredge Pipe Properties:
Excellent Ressitance to Impact, Wear and Corrosion
UHMWPE Pipes Minimize Operating Costs
The Cost Effective Pipeline System
1. Reliable Pipe: Minimum shut down time!
2. Light and flexible pipe:Quick and easy installation!
3. No need for maitenance!
4. Extremely long lifetime
5. Long Radius natural bends in the line: more energy saving
6. Extremely smooth inner surface: non scaling, Low energy consumption

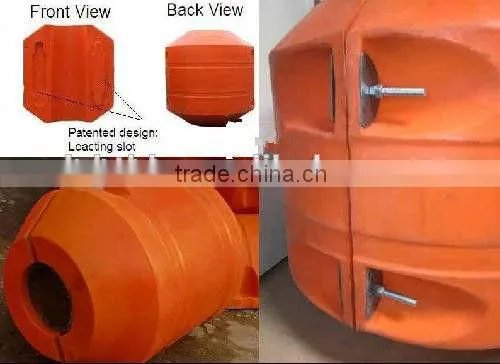

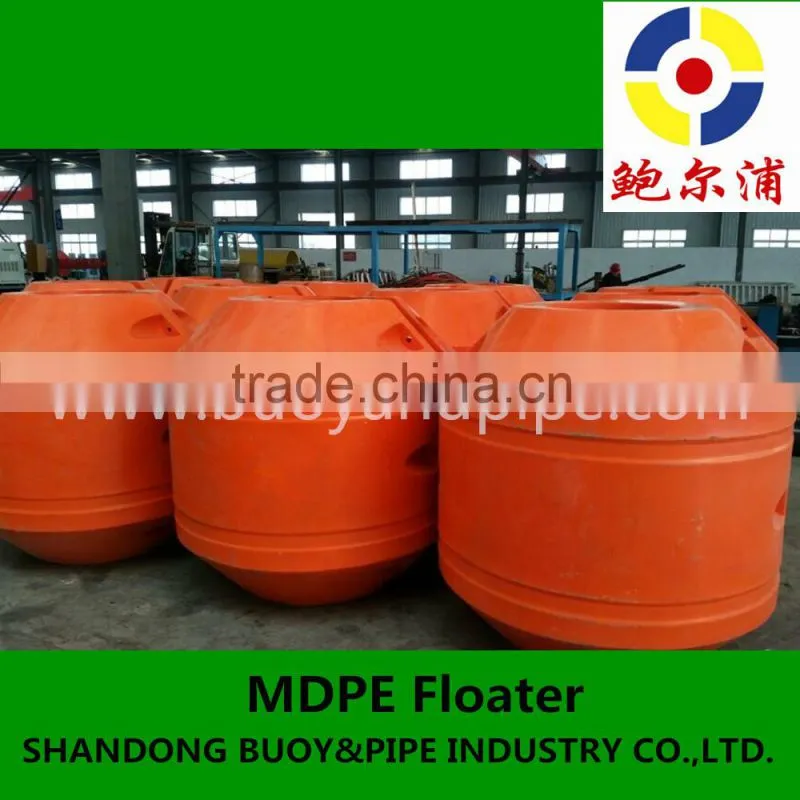

PE Floats Advantages:
1. Good flexibility,excellent impact resistance,particularly suitable for constructions in open sea.
2. Light weight,Molded-in bolt holes allow for easy installation,lower costs for moving.
3. Higher corrosive resistance,longer working life,3 times longer than steel pipe floats.
4. Lower costs,the cost performance is better than steel pipe floats.
5. 2 pieces of pipe floats form 1 set, 2 sets of pipe floats form 1 pair. 1pair of pipe floats could float 6 meter long dredging pipe or floating pipe and 1.5m long rubber hose.
6. The pipe floats OD under 4m * L4m are all available.
7. Clamp connection of pipe floats compresses the pipeline preventing slippage.
8. Tapered ends on the outside of the Pipe Floats decrease water and wind resistance.
9. Tapered ends on the inside of the Pipe Floats allow the cable,hose,or pipeline to move freely.
Shandong Buoy&Pipe Industry Co.,Ltd is proud to provide the products you desire, the service you expect, and the quality you deserve.
Our company is a manufacturer of UHMWPE products since 2005, including UHMWPE pipes, UHMWPE buoys, UHMWPE light towers, UHMWPE plates.
We have 25 production lines, with annual prodcution capacity of 30,000 tons.
We have professional engineers and R&D team, we have our own formulas for UHMWPE products, and we can design the mould by our engineers.
I. How to Select Floats for plastic dredge pipes?
The polyethylene floaters are usually used for the dredging projects, land reclamation projects in the world. They are the ideal floating material for pipelines.
When choosing the floaters, we must know the following points:
1.Buoyancy: usually the buoyancy need to be 30% higher than the pipelines weights(including 1.3 ration slurries). When the pipeline working, the floaters above the water surface should be about 1/4 of the height of steel pipes.
2.Weight: no less 3-5% than the ordered goods. The weight of the floaters is related to the hull weight and the foam’s density and volume. The foam density should be about 35kg/m³.
3.Plastify strength: the plasticized well floaters will have a flat and smooth surface without obvious particles, with best tensile strength.
4.Foam’s density: about 35kg/m³,with tensile strength of 0.2 Mpa. There is a little bit flexibility without stick and crisp. The floaters have such properties will be the best and most durable floaters.
II.The Signal of the orange color of the floater
The orange color of the floaters has following indications:
- ensure the floating of the pipelines
- Alarm signal: prevent the ships to strike the pipelines
- convenient for the maintenance of the pipelines
- reduce the installation time, and minimize the maintenance costs
