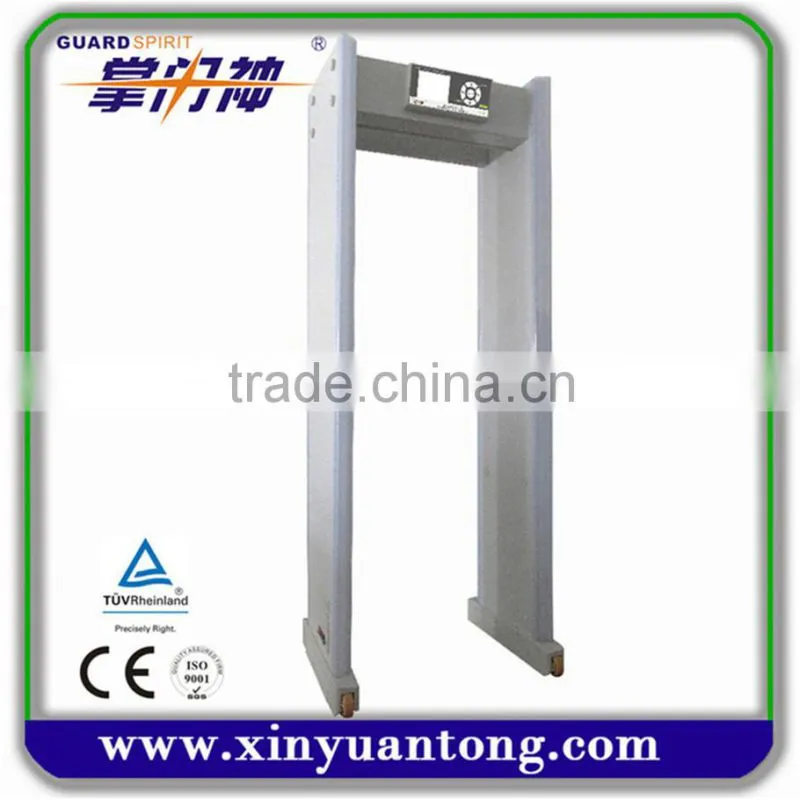

Security Walk-Through Metal Detector inspecting radioactive materials
I. Main Parameters
- Power Supply:AC85V-264V,DC 12V 3.5A
- Working temperature:-20°C--+50°C
- Working Frequency :4KHZ—8KHZ
- Waterproof can be used outside
- Inner size:2046*750*537mm
Outer size:2219*898*706m
II. Features
1.System Testing
self-diagnostics when power on for the door panels, LED, alarm sound,
2.Zoning Management:
The detection zone can be adjusted into 8, 16, 24 Zones.
3. Alarm Count:
It can record 20000 alarm counts and can query the alarm time.
4. Detecting Speed:
The maximum speed is 100 P/min, can downward adjust the detecting speed.
5. Control unit case and door panels can be freely combined to assemble, very easy to install & disassemble.
6. Working Application option for different sensitivity and detecting speed need, pls select in the system.
7. Battery Backup not less than 2-8 hours.
8.Network support (Option)
Pls connect the internet cable to the gate and install the software (CD)
On the computer,then set the IP address on the gate we give you.
III.Other Details
1. LCD backlight : 0-99S to display continuously,adjustable
2. Recognition the size of the metal objects by different sound volume
3.Alarm Sound: 1-25S alarm time, 0-255 adjustable alarm volume.
4. LED Alarm:Four side with LED, light time 0-25S adjustable.
5.Sensitivity:Total value and zone value 0-255 degree adjustable
6. Vibration Protection: Preventing vibration interference lead to false alarms
7. Passenger Count:
Can record and auto-save 9999 times , and can save passenger record p to 65535 times at most.
8.Harmless to human body
System Management
1. Fixed ID for the record.
2. English display.
3. Calendar:Display year, month, day, hour and minute.
4. Manage Encryption:To prevent the misuse causes the system unusual.
5. Restore Factory Settings,recover initial data.
Packing size :
Door panel :2360*690*270mm
Control box:830*500*310mm
Application:

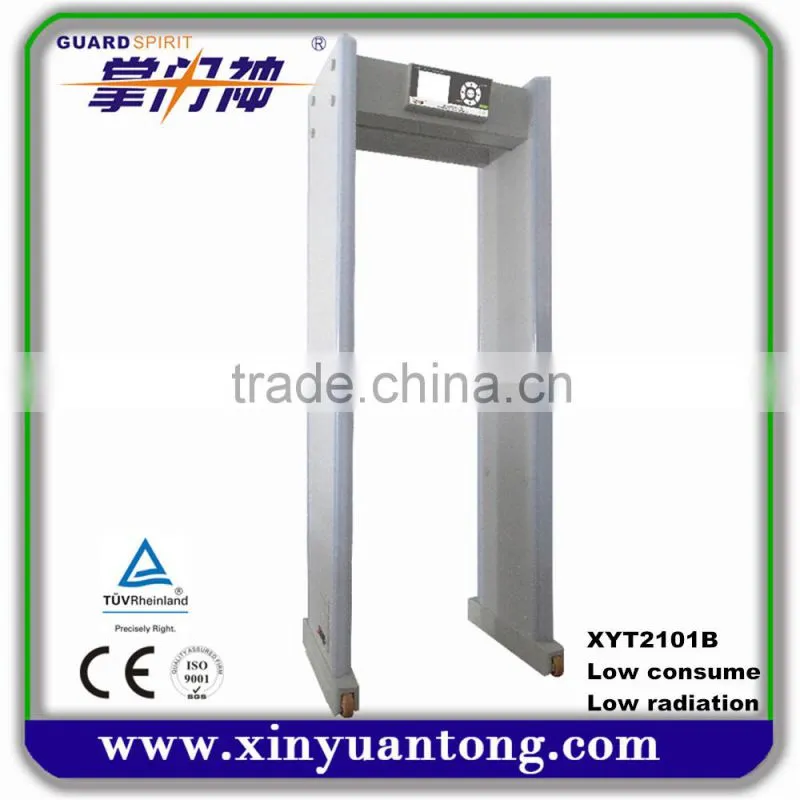

The XYT2101B is designed to Banks, Embassies, Entertainment environments, Gymnasiums, Exhibition Centers for luxurious appearance
