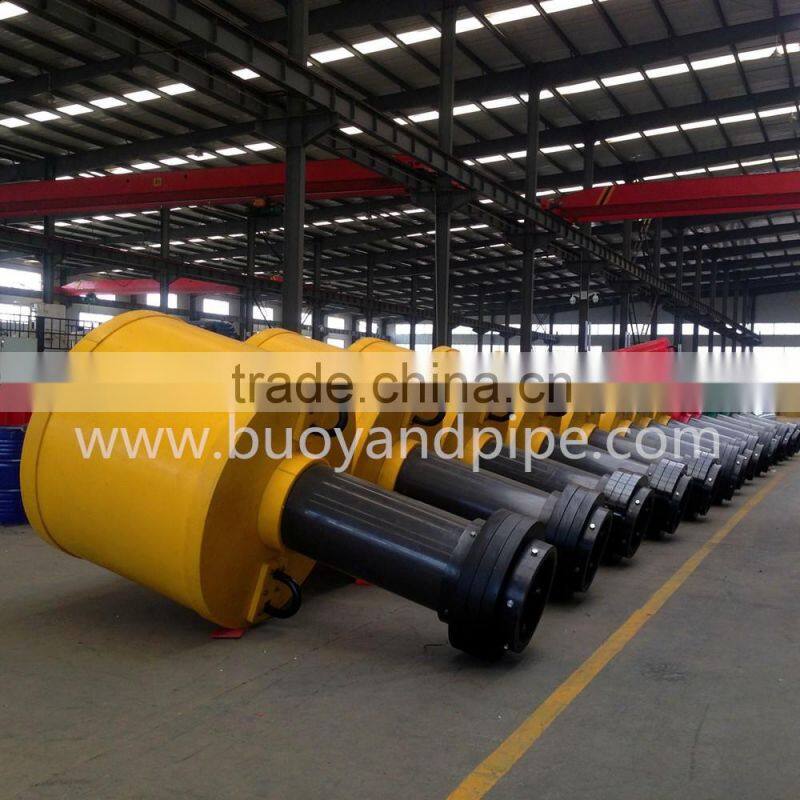

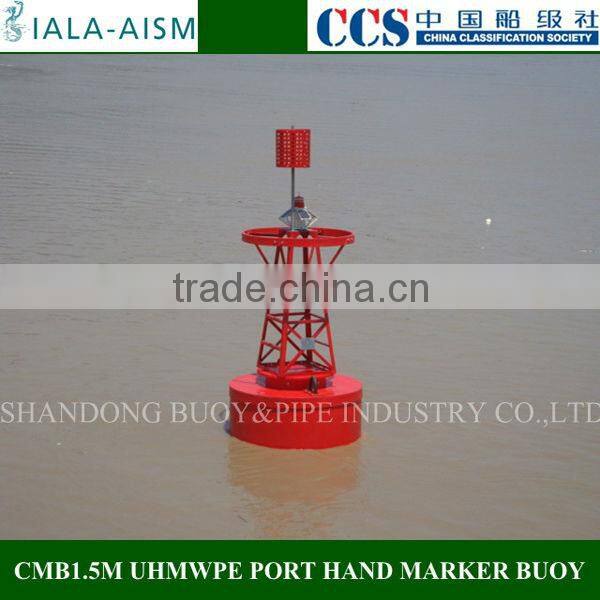

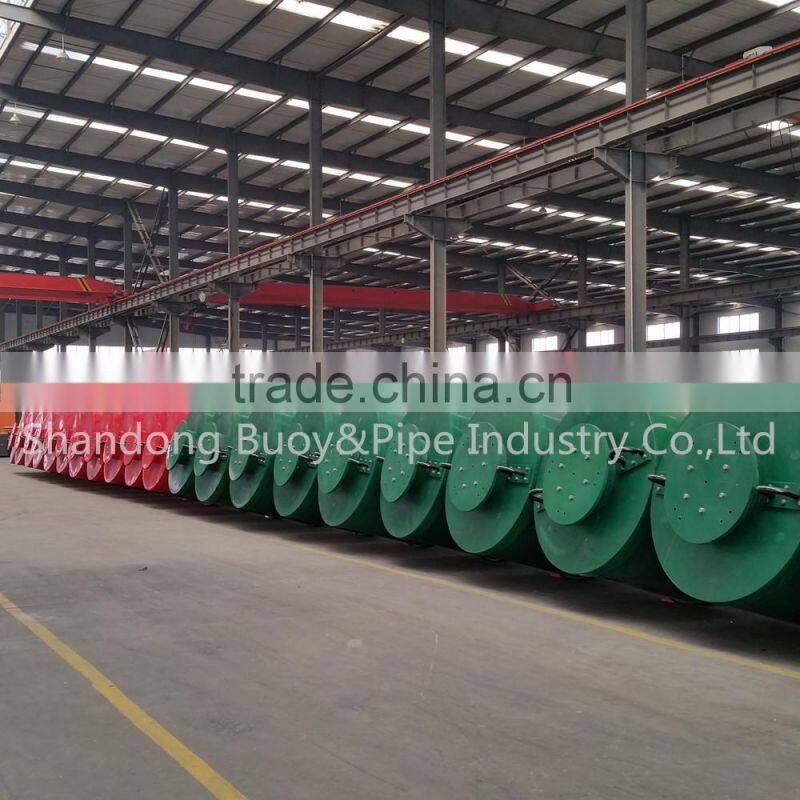

UHMWPE Navigation Buoy
- Qingdao
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | BUOY&PIPE | |
| Model Number | CMB1000-3000 | Part | Other, navigation aids |
Product Description

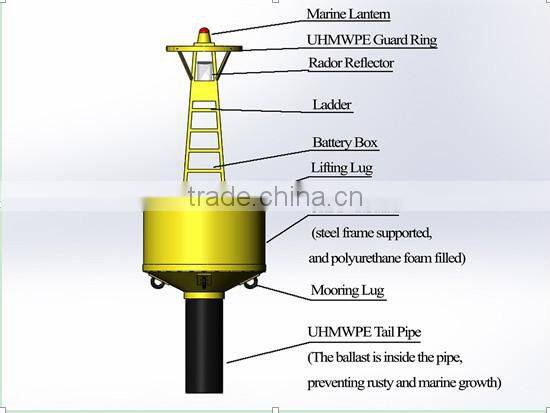

Construction Material: Ulra High Molecular Weight Polyethylene plates, unique foam filled to keep good sealing and unqiue steel structures provides exceptionally high strength;
Buoy Life: Up to 30 years;
Maintenance: Virtually maintenance free for life due to the innovative material;
Value: The most cost effective due to lower deployment costs, and no maintenance costs;
Weather: UHMWPE buoys can withstand hurricane conditions in southern part of China;
Collision Resistance: Good resilience of UHMWPE hull enables the buoys to have good collision resistance;
Re-deployment: Adjustale ballasts mean multiple locations for the same buoy.
UHMWPE NAVIGATION BUOY SPECIFICATION
Size | Diameter (mm) | Buoying Depth (m) | Free Board(mm) | Focal Plane Height(mm) | Net Weight(kg) | Height(mm) | Reserve Buoyancy(kg) |
CMB800 | 800 | 1.5-10 | 450 | 1580 | 195 | 2900 | 230 |
CMB1200 | 1200 | 2-20 | 510 | 2040 | 550 | 3380 | 570 |
CMB1500 | 1500 | 4-20 | 632 | 2524 | 681 | 4100 | 1012 |
CMB1800 | 1800 | 6-30 | 722 | 3031 | 1686 | 5034 | 1546 |
CMB2100 | 2100 | 8-40 | 800 | 3518 | 1900 | 5757 | 2450 |
CMB2400 | 2400 | 10-50 | 975 | 4527 | 2973 | 6930 | 4015 |
CMB3050 | 3050 | 15-60 | 1114 | 5164 | 3490 | 7610 | 7646 |
CMB3500 | 3500 | 20-70 | 1240 | 6090 | 3863 | 8520 | 11380 |
Comparisions Between Different Material Buoys:
CMB single body plastic buoy | Modular plastic buoy | Steel buoy | |
Material Properties | UHMWPE-Excellent | LDPE-Common | Steel-Common |
After collision | Watertight, non-tilt, not sinking, maintenance-free, can continue to use | Leakage,tilt, non-sinking ,buoys scrapped | Leakage,tilt,subsidence, damagetovessels, buoys scrapped |
Maintenance costs | Maintenance-free, not need to clear the sea biology | Painting once, clear sea biology of four times a year | Painting four times , clear sea biology four times a year |
Dumping costs | Parabolic fit for small vessels | Parabolic fit for small vessels | Parabolic fit for large vessels |
Environmental performance | No pollution | Tailpipe pollution | Strong pollution |
Life | 30 years | 5 years | 2 years |

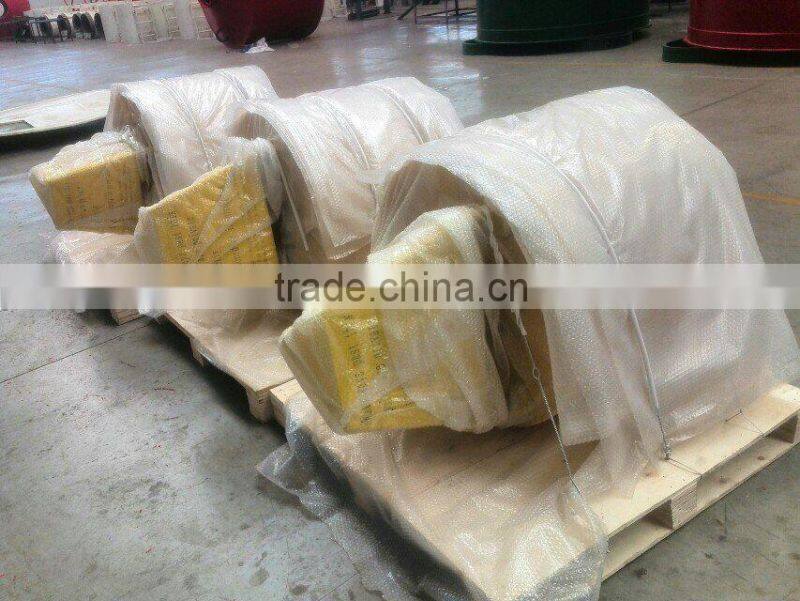

Standard Sea worthy packing:

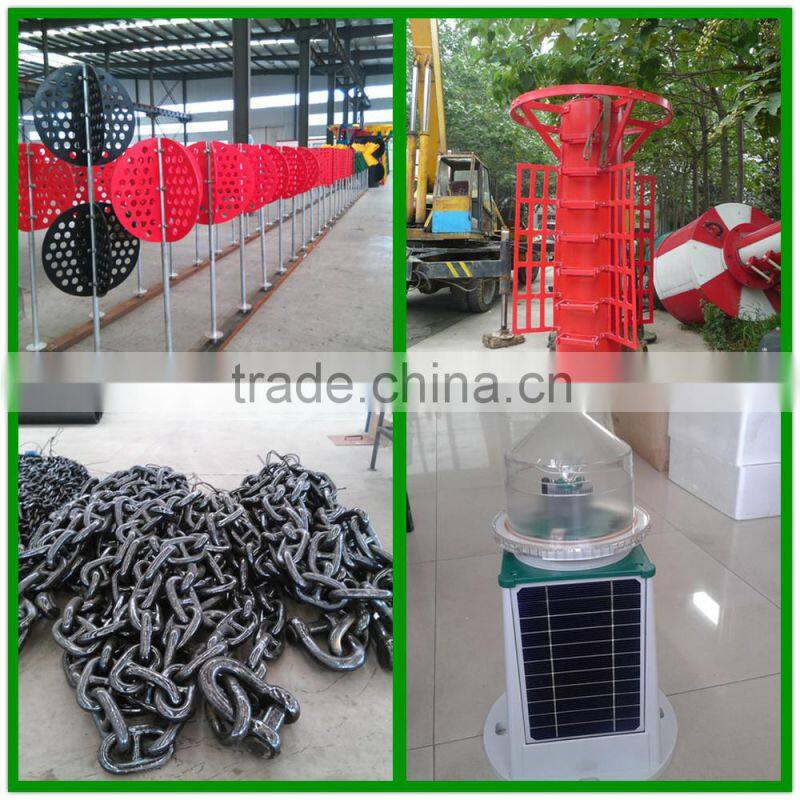

Optional Accessories:
Mooring Chains, Self Contained Solar Powered LED Lantern, UHMWPE Top Mark, UHMWPE Day Mark, Rador Rflector
1-5 yeas according to sea conditions.
OEM service is available for different water conditions.Multiple functional buoys are also available.
Shandong Buoy&Pipe Industry Co.,Ltd, is a manufacturer of UHMWPE navigation aids products since 2007. With professional R&D team, we have good in-house design capability.
We are IALA member since 2011,and all of our navigation aids products are compatbile with IALA guideline.
All of our buoys will be tested in the pond of our company to prove the good stability and performances.
