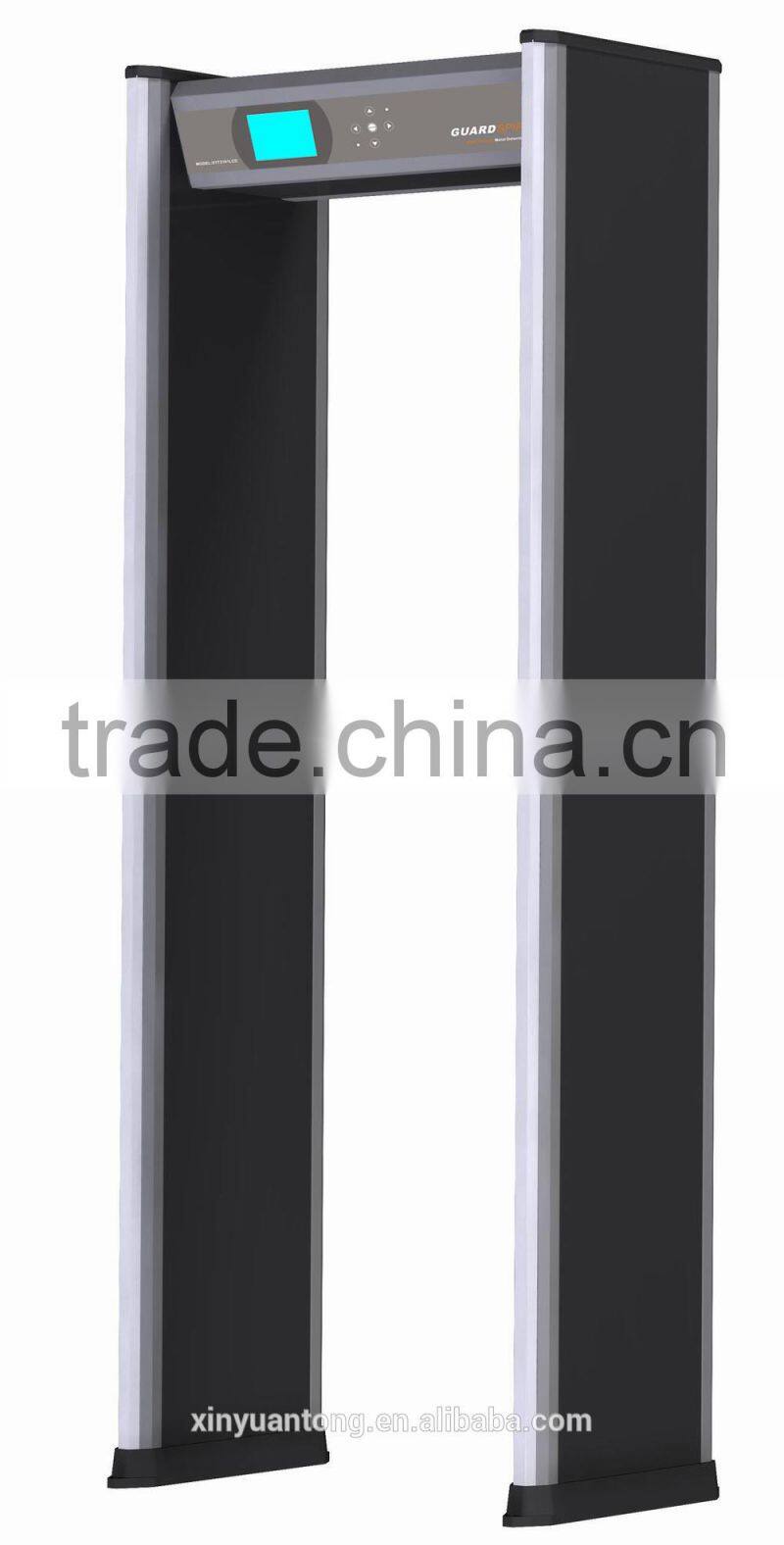

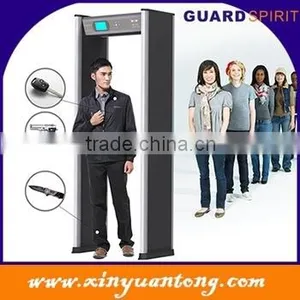

GUARD SPIRIT WALK THROUGH METAL DETECTOR
Model: XYT2101LCD (18 zones)
Power Supply:AC85V-264V,DC 12V 3.5A
Working temperature:-20℃--+50℃
Working Frequency :4KHZ—8KHZ
Standard External size: 2219mm(H)X898mm(W)X706mm(D)
Standard Internal size: 2046mm(H)X750mm(W)X537mm(D)
Package size: 235*68*26cm*1 ctn, 80*48*32cm*1ctn
Multi Zone-18 horizontal& Vertical zones of detection
Target objects are independently detected and displayed in each zone for user’s easy recognition
Self diagnostics& auto function for unskilled user’s convenience
People& detection count function
Sensitivity adjustment in each section(8 channels),detection is available according to the size of metal objects
Operation with remote control for convenience
6 preset programs for application
Easy-to-mount and easy-to-assemble
Complies with international standard CE,ISO9001
5.7inch LCD screen &PVC material
Battery backup function (4 hours standard,up to 8hours)
Network support( for customizing)
Password protection and waterproof for outdoor use
Technical Parameter
Electric current: AC85V~264V/50-60HZ
Power: <20W, low consume, low radiation
Gross weight: 70KG
Workplace environment: -20℃~+50℃
Standard: GB15210-2003, CE
Standard External size: 2230mm(H)X835mm(W)X580mm(D)
Standard Internal size: 1990mm(H)X700mm(W)X500mm(D)
Characteristic & Function
l 5.7 inch LCD screen with Infrared remoter controller
l Adopt advanced digital signal processing control replaced traditional analog signal control, better stability.
l Friendly windows interface, English program, easy to operate.
l Program Self-diagnostic when power on, automatically checking left and right door panel, LED light and choose the best working frequency.
l Automatically count passengers and alarm times, keep alarm records for inquiry (up to 20000 records)
l Detecting Zones: 6 detecting loops, can extend to 12,18 zones by separate left, right, middle side detection to pinpoint detection, Simultaneous alarm from multi- zones;
l Sensitivity adjustable:Each zone has 255 degree sensitivity level, three patterns: High, middle, Low for different requirements. Preset the metal size, weight, volume, location to exclude the coin, key, belt..
l Sound Alarm: 1-25s alarm time, 255 different sound volume and 12 tones for choose
l LED light alarm: LED bar graph on left and right door frame, visible alarm simultaneously to ascertain the layout of metal articles
l Lock and Password protection, only the authorized person can operate.
l Anti-interference function, using advanced interactive transmitting and receiving to avoid interference, frequency range from 4K-8K to avoid frequency interference
l 6 preset programs for security application versatility
l 4 hours Battery backup , the uninterruptible power protection system secure the parameters when power off.
l PVC material and Control unit on the top, waterproof, moisture-proof and cooler.
l Integrated and modularized circuit design lead to simple installation and more convenient after services.
l Adjustable Passing speed: up to 100 persons/min
l Background light: 0-99 seconds for choose
l Battery Backup not less than 4 hours.
l Calendar function: real time display year, month, date, hour, minute, second
l Harmless to heart pacemaker, pregnant women, magnetic floppy, recording tapes, etc.

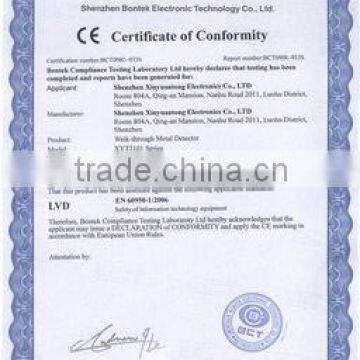

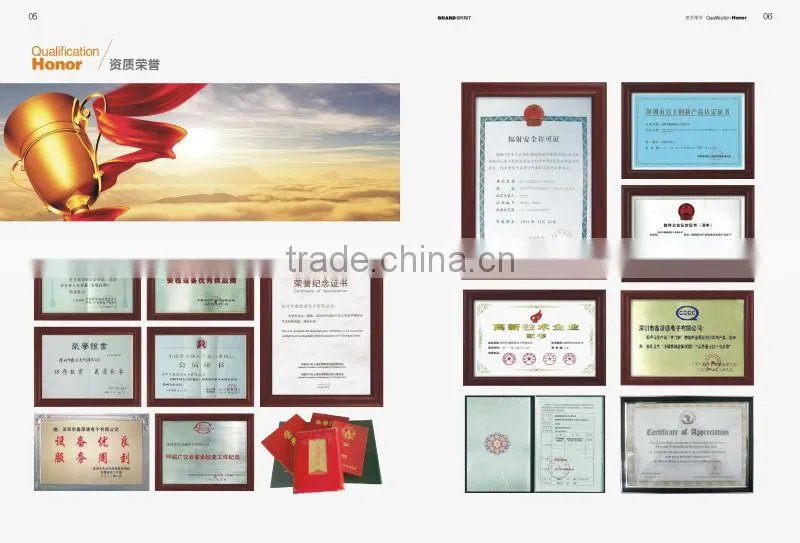

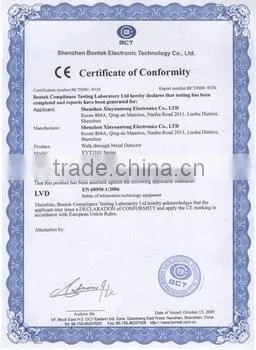

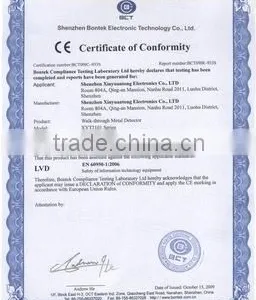

Certification

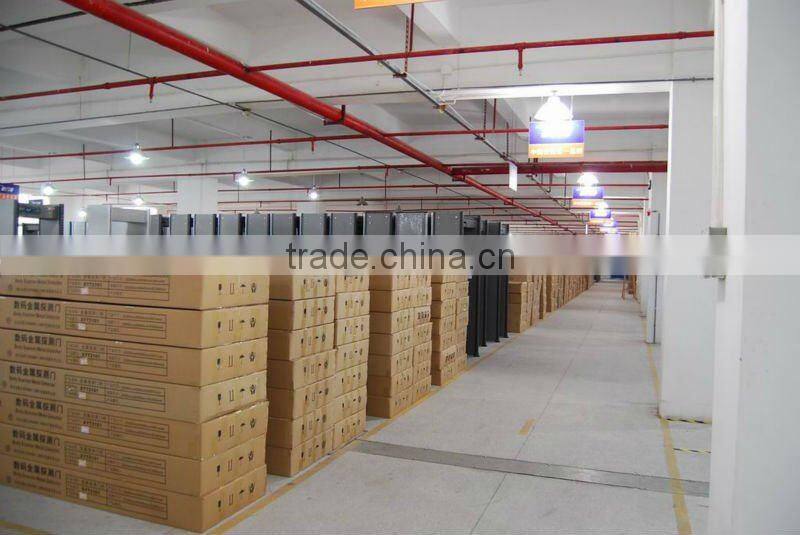

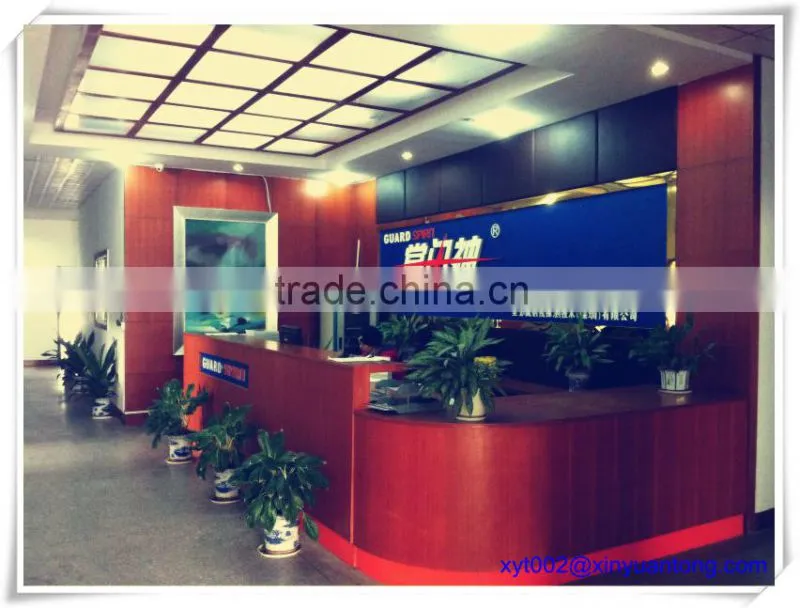

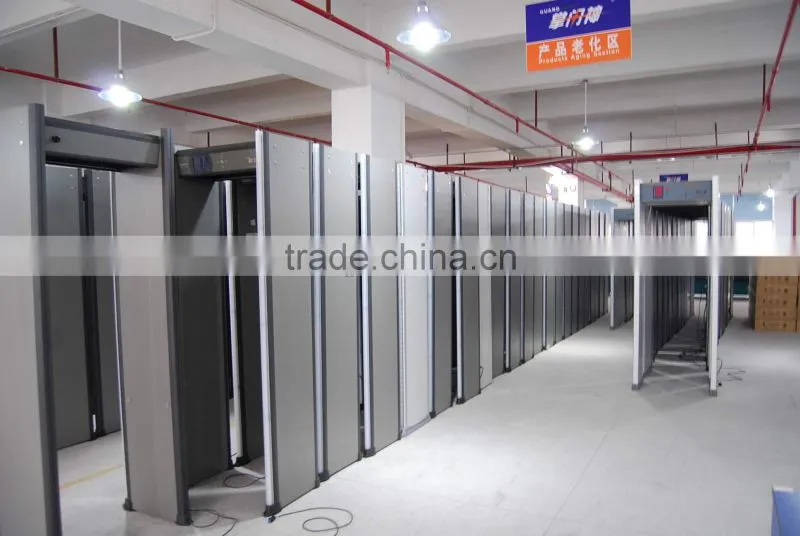

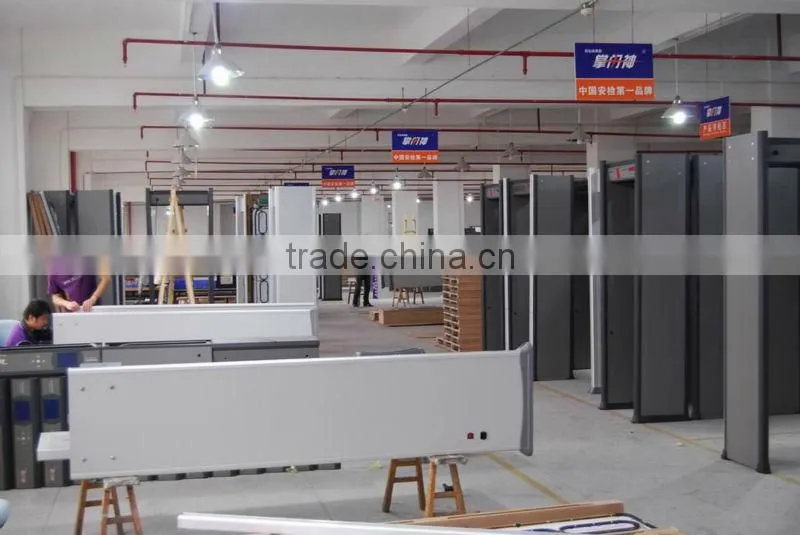

Company
Introduction
Shenzhen Xinyuantong Electronics Co., Ltd.was established in 2000 with the registered capital of RMB 31.5 million, the total business space is 12,000 m2, there are more than 260 employees, including 120 research, engineering and technical personnel; we are one professional high-tech company which provides the solutions to the public safety, and provides the complete production and integration services.Besides,we have professinal R&D technician,who can support OEM and ODM service for all our respectable distributor overseas.
Our main products are secuirity X-ray baggage scanner,multi-zone walk through metal detector,Hand held metal detector,under vechicle scanning system,Anti-explosive products....the developed products have been granted by 28 national patens.
We have attended many securtity exhibitions all over the world, such as Dubai Intersec,SECUREX in sourth Africa,EXPOSEC in Brazil,CPSE..
Our advantages:
Reliable manufacturer, Professinal negotiable,Good quality products, best price,fast delivery and permanet services.
Your Trust, Our Pursuit,Let's create a more safety world together.
