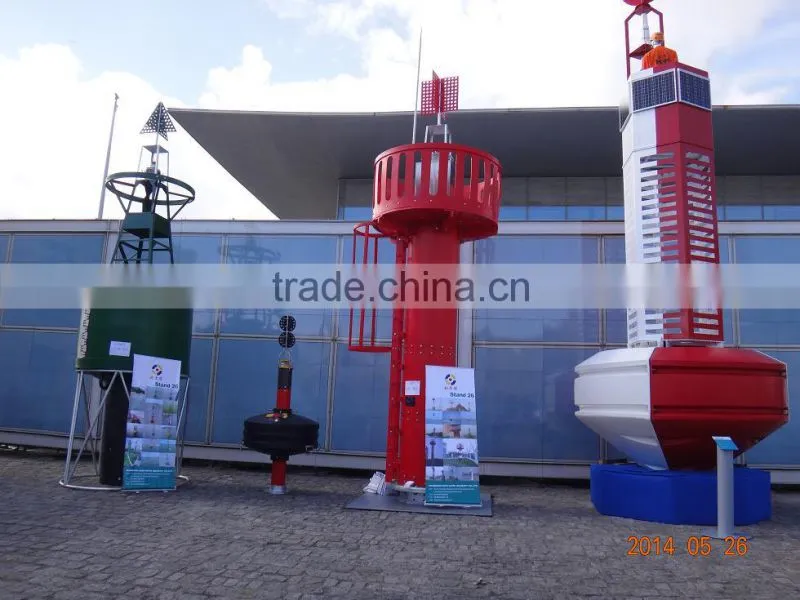

Ultra PE Channel Mark Buoy
Company: Shandong Buoy&Pipe Industry Co.,Ltd
Business type: Manufacturer
Products: UHMWPE pipes&UHMWPE Navigation Aids
Employees: about 200 employees, professional R&D team, professional engineers& installation team
Production Lines: 25 lines, with annual production capacity of 10,000 metric tons
UHMWPE Pipes Sizes: Inner Diameter 77mm to 1200mm
Ultra PE Channel Mark Buoy Size: CMB1.0M, CMB1.2M, CMB1.5M, CMB1.8M, CMB2.1M, CMB2.4M, CMB3.0M
Ultra PE Channel Mark Buoy Characteristics:
Material: ULTRA-HIGH MOLECULAR WEIGHT ≥25,000,000, with Closed Cell Polyethylene Foam inside
Size: 800mm, 1200mm, 1500mm, 1800mm,2100mm,2400mm,3050mm,3500mm

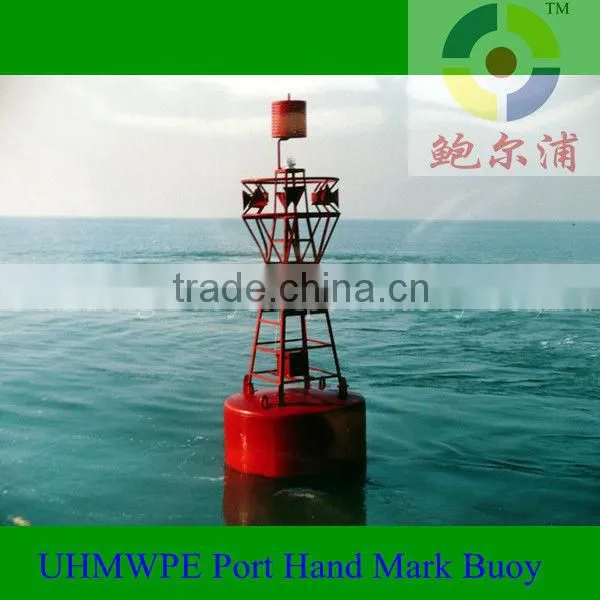

Usage: Port Hand Mark, Starboard Hand Mark, Preferred Channel Mark, Cardinal Mark, Safe Water Mark, Isolated Danger Mark,etc
1.Maintenance Free:
no need to paint, no need to maintain and repair, no need to shovel the water growth, saving manpower and resources.
2.Higher Impact Resistance:
a. The material has higher flexibility and hardness, when impacted, it will not deform.
b. There is steel skeleton inside the floating body, with the pouring density of Polyurethane foam ≥46kg/m³ and it plays a powerful support to the floating body.
3. Long Life
a. With high chemical stability and high anti corrosion, the buoy will not
decompose for decades in the seawater, meanwhile, it will not pollute the water.
b. The floating body and tail pipe are very resistant to outdoor ultraviolet radiation. It will not be aging for decades and the mechanical properties will not change.
Ultra PE Channel Mark Buoy Techinical Parameters
Model |
Diameter
mm |
Buoying depth m |
The smallest freeboard mm |
Focal Height
mm |
CMB800 |
800 |
1.5-10 |
310 |
1100 |
CMB1200 |
1200 |
3-15 |
350 |
1900 |
CMB1500-STP |
1500 |
5-25 |
380 |
2554 |
CMB1500-LTP |
1500 |
10-60 |
440 |
2526 |
CMB1500-LLTP |
1500 |
10-80 |
480 |
2768 |
CMB1800-STP |
1800 |
10-40 |
500 |
2934 |
CMB1800-LTP |
1800 |
10-70 |
560 |
3073 |
CMB1800-LLTP |
1800 |
10-100 |
600 |
3135 |
CMB2100-STP |
2100 |
15-40 |
560 |
3352 |
CMB2100-LTP |
2100 |
15-60 |
660 |
3575 |
CMB2100-LLTP |
2100 |
15-100 |
720 |
3708 |
CMB2400-STP |
2400 |
20-70 |
600 |
4632 |
CMB2400-LTP |
2400 |
20-100 |
660 |
4770 |
CMB2400-LLTP |
2400 |
20-150 |
720 |
4907 |
CMB3050-STP |
3050 |
20-84 |
600 |
6023 |
CMB3050-LTP |
3050 |
20-120 |
660 |
6160 |
CMB3050-LLTP |
3050 |
20-150 |
720 |
6296 |
CMB3500-LLTP |
3500 |
20-150 |
960 |
7010 |
