Specifications
1, material: HDPE dredging floats2, Usage: match with dredging pipeline
3, INSIDE :foam filled
4, MOQ:10units

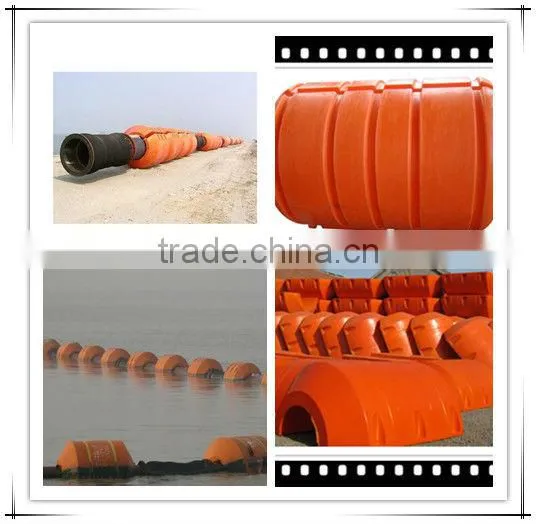

Name: dredging floats:
Floaters

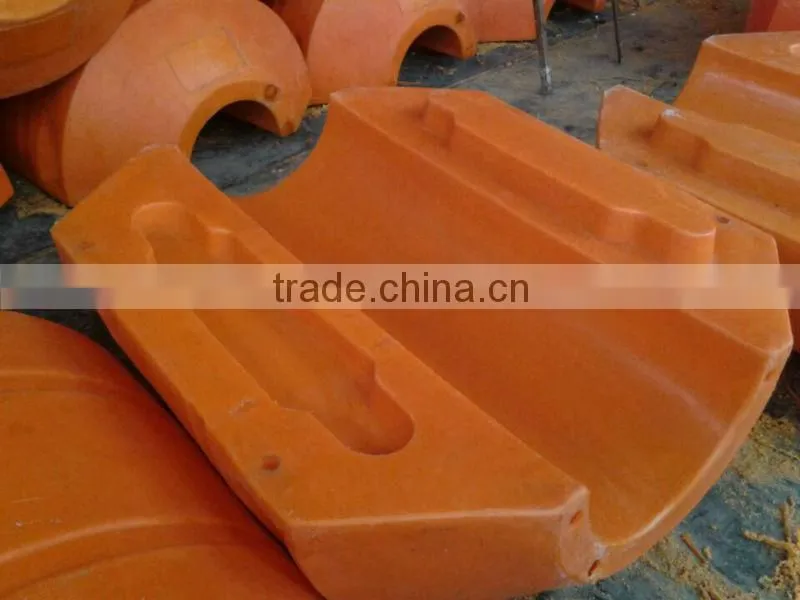

Dredging floats are composed of two empty half shells and can be filled with closed cell PU foam.
They are connected to the pipe by galvanized bolts, nuts and flat washer.
Feature:
PE Floats are generally moulded by a high wear resistant PE.
The design is set up to achieve a strong but flexible float.
Many different types of ring floats are available to suit requested application.
These dredging floats / pipe floats are mainly used in offshore dredging, oil area.
Specification:
Dredge pipe floats are available for pipe diameters 150 till 1000 mm.
Advantage:
-- Maintenance free
-- Great reliability
-- High value of buoyancy per unit
-- Very quick assebly
-- Possible fast variation of reserve buoyancy
-- Easily stored
Size of the HDPE dredging pipeline float:
Pipe I.D mm |
Pipe thickness mm |
I.D of float mm |
O.D of float mm |
Length of float mm |
Thickness mm |
Net buoyance kg |
Note |
350 |
6 |
375 |
1000 |
1000 |
6.5 |
1100 |
Two pieces per unit |
414 |
8 |
430 |
1200 |
1200 |
6.5 |
2200 |
Two pieces per unit |
450 |
8 |
480 |
1300 |
1300 |
7 |
2300 |
Two pieces per unit |
500 |
8 |
530 |
1300 |
1500 |
7 |
2600 |
Two pieces per unit |
550 |
10 |
580 |
1400 |
1600 |
8.5 |
3200 |
Two pieces per unit |
600 |
10 |
630 |
1450 |
1700 |
9 |
3800 |
Two pieces per unit |
650 |
10 |
680 |
1550 |
1800 |
9 |
4020 |
Two pieces per unit |
700 |
12 |
730 |
1530 |
1940 |
10 |
4300 |
Two pieces per unit |
750 |
12 |
780 |
1700 |
1900 |
10 |
5400 |
Two pieces per unit |
800 |
15 |
830 |
1800 |
2000 |
12 |
6100 |
Two pieces per unit |
850 |
15 |
880 |
2000 |
2500 |
14 |
9200 |
Two pieces per unit |
900 |
15 |
930 |
2100 |
2500 |
14 |
11000 |
Two pieces per unit |
900 |
18 |
940 |
2100 |
2500 |
14 |
12000 |
Two pieces per unit |
Business items:
Payment: 1, we prefer 100% fore T/T best, and if the total contract amount is below 50,000usd, we only accept 100% fore T/T .
2, If the contract amount is great, we can accept your 30%fore t/t as deposit, and you can balance the left 70% with L/C.
3, We can also use alibaba Escrow.
4, if you have a much more better idea on the payment, we can communicate together.
Package: Pack in the container directly.
Delivery time: depends on you quantity.
NOTE: we only do 100% virgin material float, if you need cheap ones with recycaled material, then we are not your choice!!!
