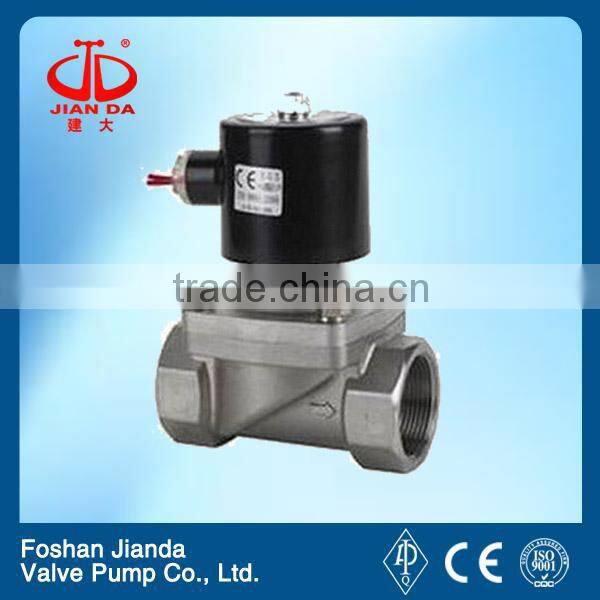

stainless steel electric solenoid valve for steam
Feature
1 this kind of solenoid valve is normal closed/open
2 the type is plug valve
3 certificate: ISO-9001
4 the direction of flowing is one way
5 the standard is DIN
6 the sealing material can be PTFE/VITON/NBR/EPDM
7 the compact structure with coil can save energy
8 it is easy to be controlled and safe.
9 different model can be choosed.
Body material |
Brass,SS304,SS316 |
Environment temperature |
0°C~65°C |
Medium temperature |
0°C~150°C |
voltage |
AC220V/230V DC24V/ DC12V 50/60HZ±10% permitted range |
The highest pressure |
100kgf/cm2 |
Structure form |
Direct acting: Φ1~Φ2.5mm Pilot type:Φ8~Φ25mm |
Connection type |
G thread,NPT thread |
Diaphragm sealing |
VITON,TEFLON,NBR,EPDM,PTFE |
Coil |
Standard class H metal cover shell outlet type |
Applicable medium |
Water,air,oil,gas, steam etc |
Working principle
1 there are different holes in the cavity and a piston in the middle
2 the electromagnet with coil can attract the valve body through electric
3 the valve body can move by the electromagnet
4 the pressure of media can drive the piston and the piston can direct the stem
5 the valve stem can drive the mechanical movement to open or close the solenoid valve.
How to choose the solenoid valve
1 according to pipe, choose the normal dimension and the connector.
2 if the connector is less than DN50, choosing flange; it is more than DN50, choosing by customer request.
3 for corrosive media, the material should be anti corrosive and stainless steel; for edible fluid, choose the sanitary stainless steel.
4 to high temperature, select the solenoid valve with anti high temperature and electric material and the structure of valve should plug valve
5 the voltage specification should be AC220V/ DC24/DC12
6 on the basis of the working time the solenoid valve can be normal close, normal open and sustainable electrifying.
7 choose the solenoid valve according to pressure.
Delivery within 2 days, depends on your order quantity
Standard Export Packing: carton case, wooden pallet and wooden box, or as for clients' requirements.
If you are interested in any of our products, please feel free to contact us.
