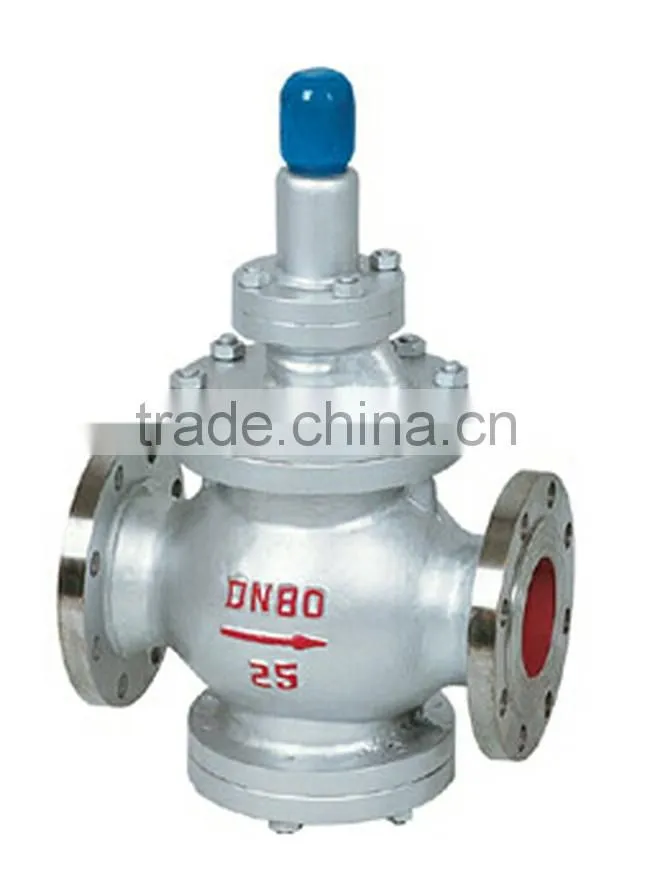

Reducing Valve for Steam
Features:
1. Electric operated, accurate and repeatable pressure control
2. Top and bottom guided stem and diaphragm assembly for long life and reliable performance
3. Two ways to install: horizontally or vertically
4. Disc quickly open but slowly close to prevent a water hammer
5. High precision for decompression and the adjusting range is extensive
6. Valve has two pressure gate indicating upstream pressure and downstream pressure
Technical Parameter:
1. Nominal Pressure:1.0MPa,1.6MPa,2.5MPa
2. Shall Test Pressure:P=1.5PN
3. Seal Test Pressure:P=1.1PN
4. Outlet Pressure: PN1.0MPa --0.09~0.8MPa
PN1.6MPa--0.10~1.2MPa
PN2.5MPa--0.15~1.6MPa
5. Suitable medium:steam
6. Suitable Temperature:125 °C
Specifications:
Model number |
200X |
Structure |
Diaphragm |
Working temperature |
-10°C- 120°C |
Working pressure |
PN10/PN16/PN25 |
Tubes/pilot valve |
Brass |
Seat |
Brass |
Spring/stem |
Stainless steel |
Bolts/washer |
Stainless steel |
Painting |
Epoxy powder coated min 250μm |
Body/Cover material |
Cast iron/ductile iron |
Medium |
Water, Steam |
Port size |
DN25-DN600 (1”-24”) |
End flange connection |
BS EN1092 PN10/PN16/PN25; ANSI Class125/150 FF/RF |
Place of Origin |
Guangdong, China (Mainland) |
Installation requirements:
1. This valve without bearing installation requirements, pay attention to the body to the flow
direction arrow.
2. Need consider the diameter of filter and equipped with gate valve to ensure the maintenance
easy and extend the service life of the valve.
3. When installation, must be careful to avoid external pipeline valve was damaged.

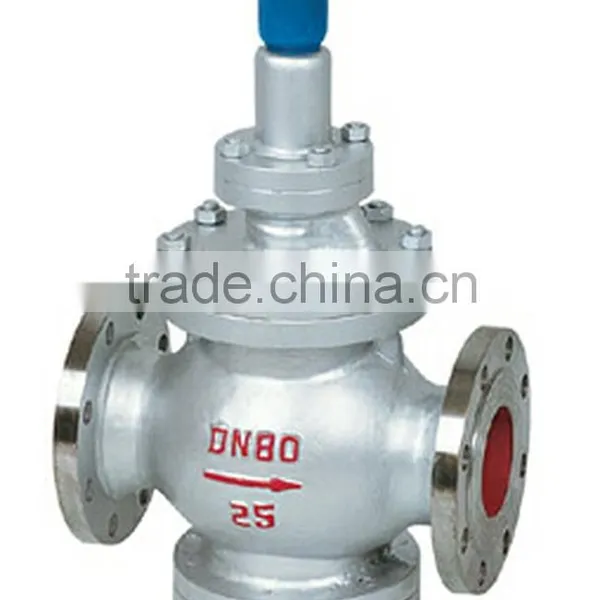

Pictures show:
If you are interested in any of our products, please feel free to contact us.
