Security Application Walk Through Metal Detector .people Screening Walkthrough Gate

Security Application walk through metal detector .people screening walkthrough gate

MODEL:XYT2101LCD (6-18/8-24 zones)

Technical parameter

Electric current: AC85V~264V/50-60HZ

Power: <20W, low consume, low radiation

Gross weight: 70KG

Workplace environment: -20℃~+50℃

Standard: GB15210-2003, CE

StandardExternal size: 2230mm(H)X835mm(W)X580mm(D)

Standard Internal size: 1990mm(H)X700mm(W)X500mm(D)

Characteristic & Function

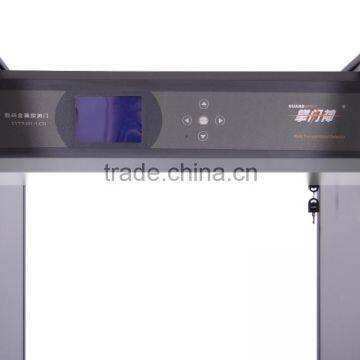

• Ø  5.7 inch LCD screen with Infrared remoter controller
• Ø  Adopt advanced digital signal processing control replaced

traditional analog signal control, better stability.

• Ø  Friendly windows interface, both Chinese and English program, easy to operate.
• Ø  Program Self-diagnostic when power on, automatically checking left and right door panel, LED light and choose the best working frequency.
• Ø  Automatically count passengers and alarm times, keep alarm records for inquiry (up to 20000 records)
• Ø  Detecting Zones: 6 detecting loops, can extend to 12,18 zones by separate left, right, ,middle side detection to pinpoint detection(8,16,24 zone for option)
• Ø  Sensitivity adjustable: Each zone has 255 degree sensitivity level, three patterns: High, middle, Low for different requirements. Preset the metal size, weight, volume, location to exclude the coin, key, belt..
• Ø  Sound Alarm: 1-25s alarm time, 255 different sound volume and 12 tones for choose
• Ø  LED light alarm: LED bar graph on left and right door frame, visible alarm simultaneously to ascertain the layout of metal articles
• Ø  Lock and Password protection, only the authorized person can operate.
• Ø  Anti-interference function, using advanced interactive transmitting and receiving to avoid interference, frequency range from 4K-8K to avoid frequency interference
• Ø  6 preset programs for security application versatility
• Ø  4 hours Battery backup , the uninterruptible power protection system secure the parameters when power off.
• Ø  PVC material and Control unit on the top, waterproof, moisture-proof and cooler.
• Ø  Integrated and modularized circuit design lead to simple installation and more convenient after services.
• Ø  Adjustable Passing speed: up to 100 persons/min
• Ø  Background light: 0-99 seconds for choose
• Ø  Battery Backup not less than 4 hours.
• Ø  Calendar function: real time display year, month, date, hour, minute, second
• Ø  Harmless to heart peacemaker, pregnant women, magnetic floppy, recording tapes, etc.
• Ø  Network support: (For Option)
