Specifications
1. PS201 Heavy Duty DiagnosticTool2. The best solution for diagnose All 1996 and Newer OBD II/EOBD/CANBUS Compliant gasoline
PS201
|

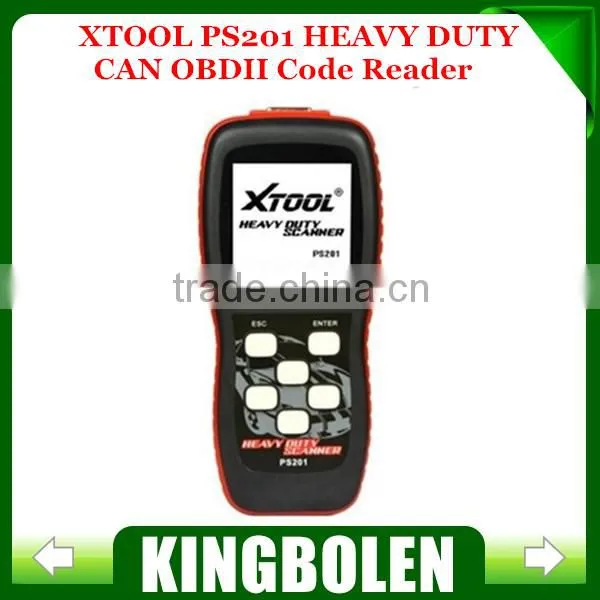

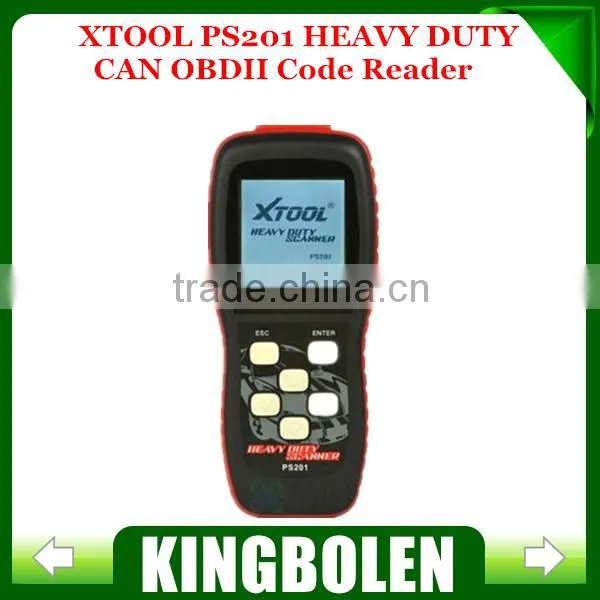

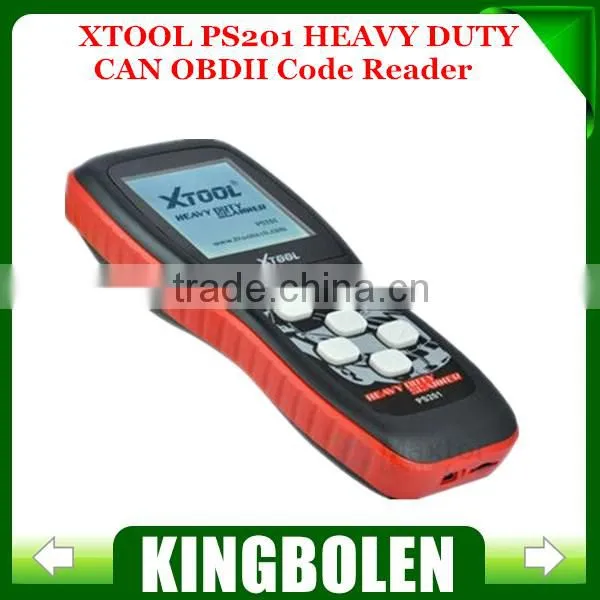

PS201 HEAVY DUTY CAN OBDII CODE READER |
1.Tool Description
The PS201 HEAVY DUTY CAN OBDII Code Reader is the best solution for
diagnose All 1996 and Newer OBD II/EOBD/CANBUS Compliant gasoline
Vehicles, as well as diesel OBD vehicles, provides car owners and DIYers
easy and quick access to Diagnostic all OBD II compliant vehicles sold
worldwide since 1996. Though small in size, it is powerful enough to retrieve
the same information as expensive workshop level scanners.
The scanner works with the following protocols:
Gasoline
--J1850 PWM
--J1850 VPW
--KPW 2000
--ISO 14230-04
--ISO 9141
--SAE J1850
-- ISO14230
-- ISO15765(CAN)
Diesel
--SAE J1939(CAN)
--SAE J1708/J1587
2.Feature
* Natural Ergonomic comfort Curve design * Easy-to-read large mono-color screen* Easy-to-operate large buttons
Diesel
*Class 4 - Class 8 truck coverage featuring "Automatic Protocol Search".
*HD J1587 / J1708 and J1939 CAN, Engine, Transmission/ABS coverage and
more!
*Live vehicle data such as:
- Engine speed
- Engine ECU temperature
- Percent acceleration pedal position
- Engine intercooler temperature
- Engine coolant temperature
- Ambient air temperature
- Air inlet temperature
Gasoline* Work with all 1996 and later OBD II compliant US, European and
Asian vehicles* Easily determine the cause of the Check Engine Light ( MIL)* Retrieve generic (P0, P2, P3, B0, C0, U0), manufacturer specific (P1, P3,
and U1) codes, and pending codes* Turn off Check Engine Light (MIL), clear
codes and reset monitors* Display DTC definitions on unit screen* View freeze
frame data
* Read live data* Display monitor and I/M readiness status (emissions)* Retrieve vehicle information (VIN, CIN and CVN)* Support CAN (Controller Area Network) and all other current OBD II protocols
* Support Mode 6*Multi-Lingua platform* Update via Internet
3.Function
* Read DTC
* Clear DTC
* View Freezing Frame
* View Live Data
* Special tests
-- I/M Readiness
-- MIL Status
-- O2 Sensor Test
--On-board Monitor test
-- EVAP system test
--Vehicle Info
* Code Lookup
4.Specfications
Display: Backlit, 160 x 160 pixel mono-color screen with contrast adjustment
Operation Temperature: 0 ~ 50°C (32~122F°)
Storage Temperature: -20 ~ 70°C (-4~158F°)
Relative Humidity: < 90%
External Power: 8~18 Volts via DLC
Power Consumption: 3W
Mainframe Dimension: 225mm(L) x 98mm(W) x 36mm(H)
Exterior Memory: TF Card
Dear friend,if your area is DHL/UPS remote area,please kindly let us know,since the price is different. thank you for your attention. Regards, Angelia from Kingbolen
