Home > Electrical & Electronics > Sensor > Pressure Sensor > BZJ-511 Detect Blue And Green Color Mark Contrast PhotoCell Photoeye Sensor Switch With CE

BZJ-511 Detect Blue And Green Color Mark Contrast PhotoCell Photoeye Sensor Switch With CE

Name: BZJ-511 Detect Blue And Green Color Mark Contrast PhotoCell Photoeye Sensor Switch With CE
Brand: Winston, Winston
SKU: 110977155
Availability: InStock

BZJ-511 Detect Blue And Green Color Mark Contrast PhotoCell Photoeye Sensor Switch With CE thumbnail-1

BZJ-511 Detect Blue And Green Color Mark Contrast PhotoCell Photoeye Sensor Switch With CE photo-1

US$ 30 - 50 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Winston, Winston

Model Number:

BZJ-511

Contact Supplier Request Quote Chat Now

Yueqing Winston Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Winston, Winston

Model Number BZJ-511

Usage Other, Color sensor

Theory Optical Sensor

Output Digital Sensor

Product Description

BZJ series color code sensor applies the light emitting and the receiving principle.It will send out modulating light,receive the reflecting lights from detected object,and distinguish the color or recognize the existence of objects according the intensity of the receiving signals.It can serve for sensor in the automaticcontrol systems for packing machiney,printing machinery,texture and paper making machinery ect and be used with other instruments to detect the existence of the object marked with color code,pattern code,line or others.It has the functions of self-locating,recognizing colors,rectifying deviation,pattern checking and countering.The sensor applies optical technique,semi-conductor electronic technique and modulation demodulation,and has the features of high sensitivity,quick response speed,strong anti-background interference,compact structure and convenient operation.

Overall dimensions

BZJ Series of color-sensor

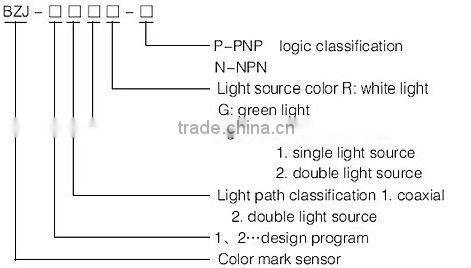

Model and technical parameters
Outward appearance code	BZJ-511
Size(mm)	56x23x40
Supply Voltage	10-30VDC
Ambient temperature	0-50°C
Detecting method	Coaxial reflection
Detecting distance	10mm±2mm
Chromatogram of light	Red,Green,Blue,White
Facula	circular
Response time	200us/500us
Output current	<200mA
Output type	NPN
Shell material	metal
Cable Length	2m
Protection	RP-power protection,load short-circuit protection
Weight	180g

Control diagram
