Under vehicle surveillance system

Under Vehicle Surveillance System 2015

The Under Vehicle Surveillance System mainly used for checking whole structure under cars, Can quickly and accurately identify the hiding contraband in the vehicle and illegal immigration, smuggling people, faster and more accurate than traditional vehicle inspection mirror, greatly improving the speed and accuracy of vehicle safety checks, reducing investment in human resources.

Parameters

Software:

1. using black and white Array CCD scanning technology Dynamic imaging;

1. Scanning Image resolution: > 2048

1. Store or load time: <1 second;

1. Vehicle image display mode: large format transverse;

1. System interface language: English (can be customized);

1. Display resolution: adapt to a variety of display resolution;

1. Vehicleimagedata transfer interface: NetworkRJ45

1. Scene image display:≥1 channel

1. Dedicated image processing functions

Software interface

Under Vehicle Scanning image

Vehicle image system, control equipment and environmental adaptability:

1,Scan mode: automatic , non- external trigger scanning;

2,The maximum scan rate:18kHz;

3,Vehicle speed:≤30km/h;Loading weight: 30 Tons

4,View angle:180 degrees

5,Scanner connecting cable: 10 meters (can be customized more than 10m)

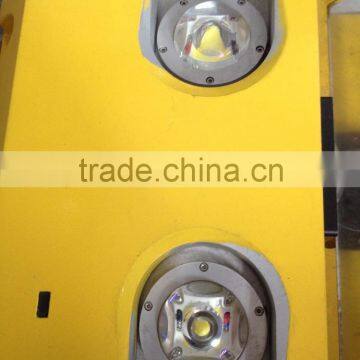

6,Lighting components : Two single sealed LED surface light source ; Life : 50,000h

7,Under Vehicle image scanner with a unique open-wide field scan design;

8,Working voltage: DC24V

9,Power Supply:AC220V/50-60Hz

10,Structure design:single sealed design;

11,Environment temperature: -20 degrees - +55 degrees

12,Appearance: Aluminum copper alloy composite material

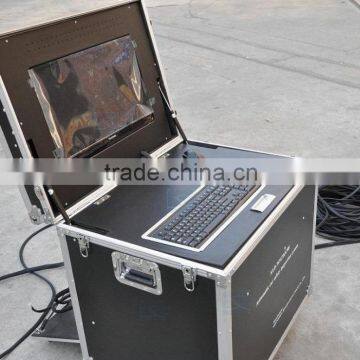

System host server and monitor :

1,Display:22 inch LCD Screen

2,CPU:INTEL Quad-Core Processor

3,Motherboard : dedicated motherboard

4,Memory : DDR3 , more than 2GB

5,Hard disk : 500G high-speed hard disk

6,Graphics card : DDR3, 192BIT independent graphics

7,Working voltage : AC220V 50/60Hz

8,Working temperature : -20 ℃ ~ 55 ℃

9,Data transmission cable length : 10m

License plate recognition system (China domestic only )

1. Standard 1 channel license plate recognition module, can be optionally extended to two or more channels ;
2. A single character recognition accuracy rate : ≥ 99%;
3. Average recognition time : <20ms;
4. Whole plate recognition accuracy rate : ≥ 95%
5. The image of license plate allows horizontal tilt angle: -10 to +10 degrees ;
6. Character(except Kanji) recognition accuracy:≥93%
7. Video SNR > 48db

For foreign countries, Our LPR camera only can take pictures of the license plates. If Our clients need recognition function, they have to offer the recognition software and database locally, and send it before shipment. Our engineer would integrated to our software.
