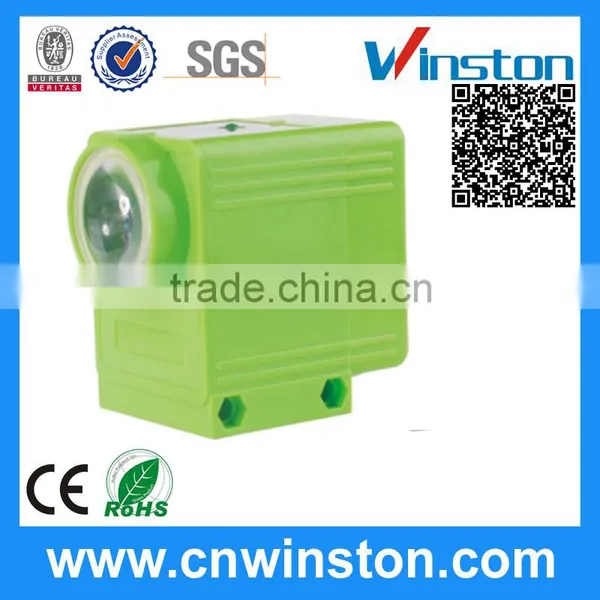

G76 Series 10-30VDC/90-250VAC NPN/PNP/2 Wires With NO/NC/NO+NC Output Infrared Capacitance Photoelectric Sensor Switches

G76 Series 10-30VDC/90-250VAC NPN/PNP/2 Wires With NO/NC/NO+NC Output Infrared Capacitance Photoelectric Sensor Switches thumbnail-1
G76 Series 10-30VDC/90-250VAC NPN/PNP/2 Wires With NO/NC/NO+NC Output Infrared Capacitance Photoelectric Sensor Switches photo-1
US$ 9.9 - 18.7 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Winston, Winston
Model Number:
G76
Contact Supplier Request Quote Chat Now
Yueqing Winston Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Winston, Winston
Model Number G76
Usage Other, photoelectric switch, Consumption Sensor
Theory Other, Photoelectric switch, photoelectric
Output Other, Analog Sensor, Switching Transducer

Main features:


1 . Compact volume
2 . high precision of repeated location
3 . Diversified exterior structures
4 . Good performance of anti-interference
5 . Many output forms
6 . High on-off frequency
7 . Dust proof,vibration proof,water proof and oil proof.
8 . With short-circuit protection and inverted connecting protection.
9 . Long service life

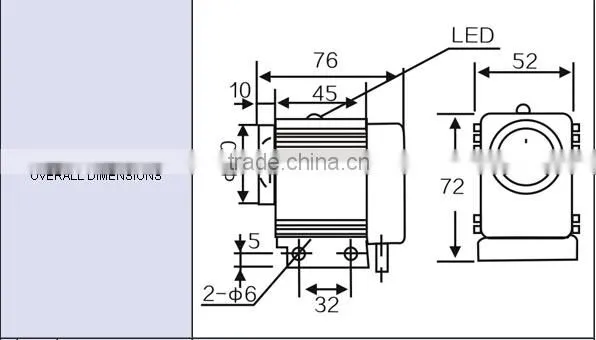

 Overall dimensions




Diffuse type Detection distance 1m
10-30VDC NPN NO G76-3A1NA
NC G76-3A1NB
NO+NC G76-3A1NC
PNP NO G76-3A1PA
90-250VAC NC G76-3A1PB
NO+NC G76-3A1PC
SCR Contro Hable silicon NO G76-2A1LA
NC G76-2A1LB
Relay output G76-2A1JC
Retroreflective type Detection distance 5m
10-30VDC NPN NO G76-3B5NA
NC G76-3B5NB
NO+NC G76-3B5NC
PNP NO G76-3B5PA
90-250VAC NC G76-3B5PB
NO+NC G76-3B5PC
SCR Contro Hable silicon NO G76-2B5LA
NC G76-2B5LB
Relay output G76-2B5JC
Through beam Detection distance 10m-50m
10-30VDC NPN NO G76-3C101NA
NC G76-3C101NB
NO+NC G76-3C101NC
PNP NO G76-3C101PA
90-250VAC NC G76-3C101PB
NO+NC G76-3C101PC
SCR Contro Hable silicon NO G76-2C101LA
NC G76-2C101LB
Relay output G76-2C101JC
DC/SCR Control output DC:200mA
DC/AC Consumption current DC<15mA,AC<10mA
DC/AC Response time AC/Dc<2ms
Directional angle 3 . -10 .
Detected object transparent or opaque body
Working environment temperature 25~+55ºC
Intensity of illumination of working environment Sunlight under 1000LX incandescent lamp under 3000LX
Shell material Plastic
Protection grade IP54





Control diagram



G76 Series 10-30VDC/90-250VAC NPN/PNP/2 Wires with NO/NC/NO+NC output Infrared capacitance Photoelectric Sensor Switches
