Under Vehicle/Car Scanning System XJCTB-2008

  Under Vehicle/Car Scanning System XJCTB-2008

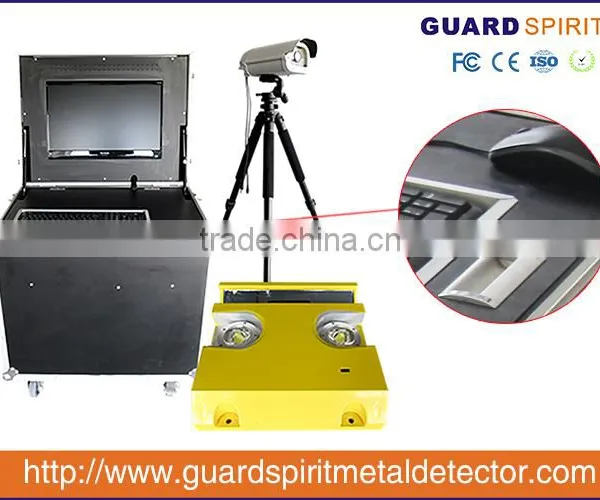

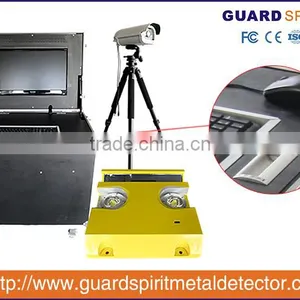

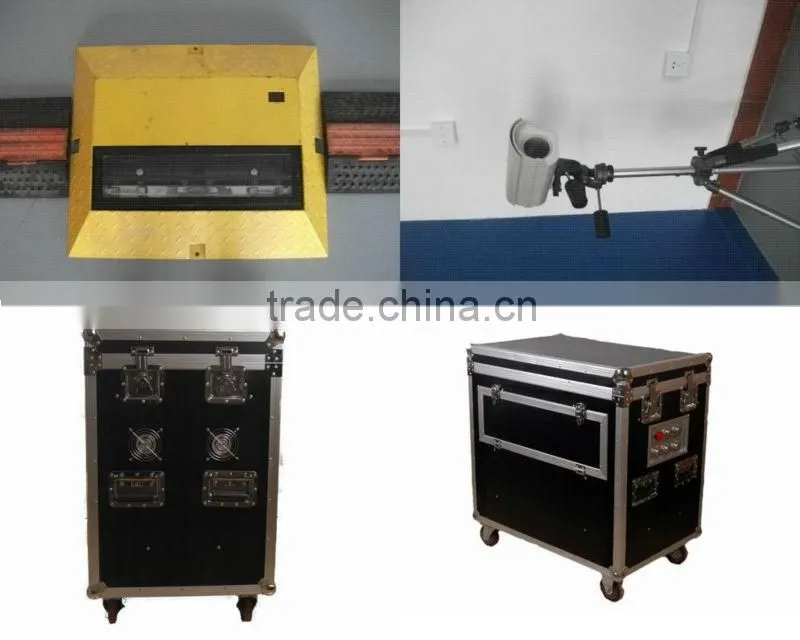

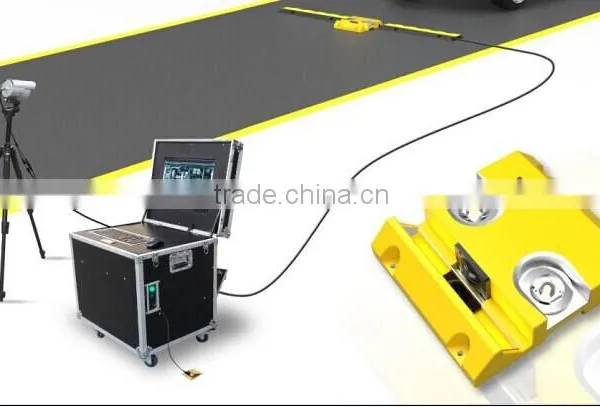

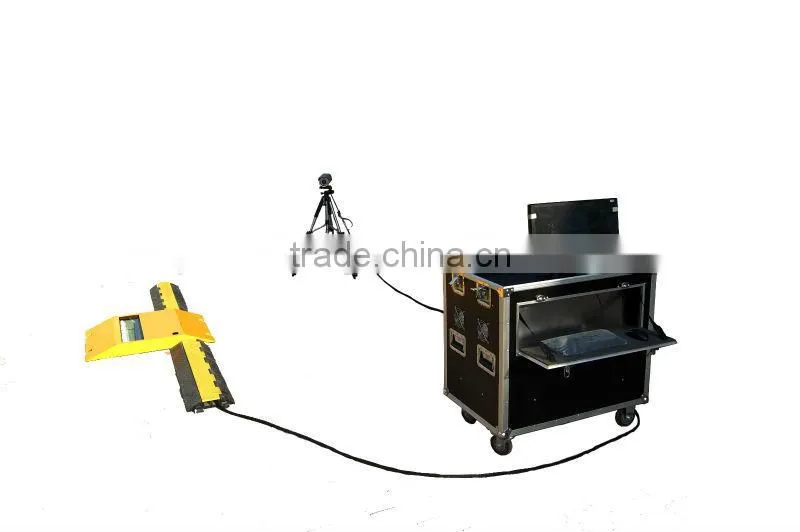

(1)Picture of  Under Vehicle Inspection System

(2). Specifications

Features:

1. viewing angle no less than 135°, the output images are clear and without obvious distortion.
2. Vehicles pass through speed: 1~20km/h; meanwhile, the system will automatically displays the high-definition complete image of vehicle chassis timely and license plate collection system automatically identifies the license plate and takes images.
3. The software will store the under vehicle scanning images and information of license plate as the special database, which supports database query function.
4. Automatic brightness and contrast trimming for photos, in the meantime, brightness and contrast can be adjusted manually and the processing is quick without any time delay. Partial enlargement function is available.
5. High-brightness LED lighting system, no need any external illumination.
6. The system will generate a folder according to the date of computer and store the vehicle images into the folder according to dates and times in consideration of future review.
7. License plate number can be automatically identified and will be automatically saved; in addition, one-to-one correspondence with vehicle chassis images.
8.  Image function: Brightness, Contrast, Sharpen, Magnifier, Review, Print etc.

Camera For Scanning system:
Imaging device……………….1/3 "-type vertical double density interline CCD
Effective pixels……………….784 × 494
Scanning System…………….2:1 Interlace V: 59.94Hz H: 15.734KHz
Sync System………………….Internal synchronization / power synchronization
Horizontal resolution………....540/600TV line (day / night mode)
Dynamic Range………………128X (48db)
Lens……………………………C / CS lens
Digital Focal Length………….26X
Gamma correction……………0.45/1.0 optional

Minimum illumination………Day: 0.009 lux / Night: 0.0003 lux (F 1.4 AGC ON 50IRE)
                                         Day: 0.003 lux / Night: 0.0003 lux (F 1.2 AGC ON 10IRE)

SNR…………………………> 50db (AGC off)
Iris Control………………….Video / DC drive
Gain Control………………. Auto (normal / turbo)
White Balance……………...ATW / ATW2 / Manual
Electronic Shutter…………..Auto / 1/60 (1/50) to 1/150000 sec.
                                         Slow shutter manually from 0.04 seconds to a maximum of 6 seconds
Backlight……………………..BLC1 / BLC2 /BLC3 /BLC4 /User define / off
The secret zone…………….on / off up to 8 zones
Day / Night Mode……………Auto / Manual
OSD menu
Remote control………………Pelco-P / Pelco-d    RS485 (RJ45) interface
Video output…………………1Vpp in line with output, 75 ohm
Power supply
Voltage……………………….DC 12V / AC 24V
Power consumption…………10W (maximum)
Environment
Operating temperature……… -10 °C -50 °C
Operating Humidity………….. 30% -90% RH
Storage temperature………... -20 °C -60 °C

Camera For Number-Plate Recognition System:

Camera element………………..1/3'' CCD

Effective Pixels (HxV)…………..NTSC: 768X494 PLA: 752X582

Scanning System: PAL…………2:1 synchronization, V: 50Hz   H: 15.625KHz

Synchronization System………..Internal Synchronization / line lock

Lens interface……………………CS interface

Horizontal resolution…………….560 lines

Minimum illumination……………0.03Lux, F1.2

Signal-to-noise ratio……………..> 50dB (AGC OFF)

AES: NTSC………………………1/60 ~ 1/10000 seconds

Electronic shutter………………..1/501/200, 1/500, 1/1K (optional)

ALC………………………………..manually adjustable

Gain Control………………………AGC

Backlight compensation…………on, off

White Balance…………………….Auto Tracking White Balance

Video output……………………….Y / C

Power Supply

Voltage…………………………….DC12V/AC24V

Power consumption………………5W (max)

Operating environment

Operating temperature……………-30 °C ~ 50 °C

Operating Humidity………………..30% ~90%

Storage Temperature……………. -30 °C ~ 50 °C

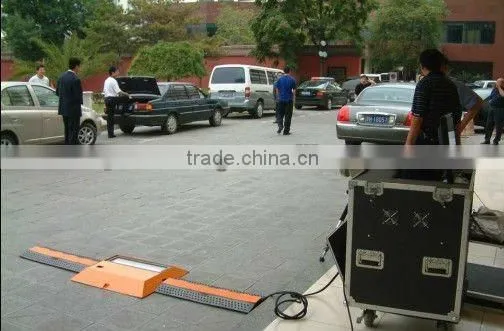

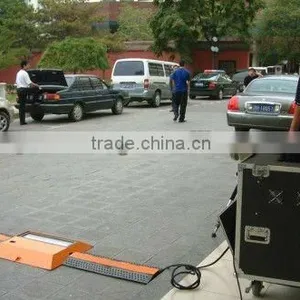

Application:

Vehicle Security Check Scanning System XJCTB2008 is mainly applicable to government organs, customs, garages, airports, troops, embassies, prisons, nuclear power stations, various kinds of arenas and other places where vehicles are required to be checked.

(For more details,please feel free to contact with me on-line)
