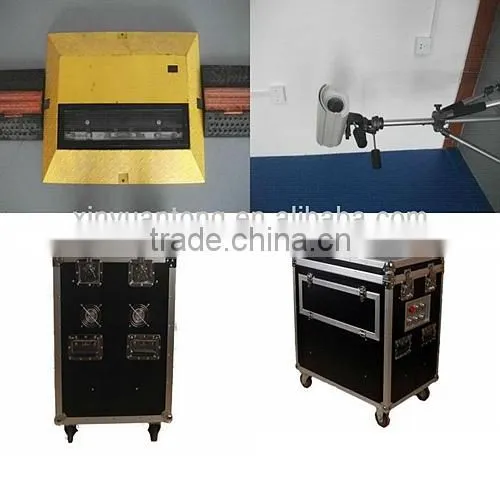

XJCTB2008A Parking Lot Under Vehicle Safety Inspection System with CCTV Camera and LED Scanner

Welcome to visit our Alibaba website and look over our products. We have 15 years experience in the field of  X-ray baggage scanner, multi-zone walk through metal detector, hand held metal detector, under vehicle scanning system and Anti-explosive products

JCTB2008A Parking Lot Under Vehicle Safety Inspection System with CCTV Camera and LED Scanner

Software:

1,using black and white Array CCD scanning technology Dynamic imaging;

2,Scanning Image resolution: >=2048

3,Store or load time: <1 second;

4,Vehicle image display mode: large format transverse;

5,System interface language: English (can be customized);

6,Display resolution: adapt to a variety of display resolution;

7,Vehicleimagedata transfer interface: NetworkRJ45

8,Scene image display:≥1 channel

9,Dedicated image processing functions

Software interface

Under Vehicle Scanning image

Vehicle image system, control equipment and environmental adaptability:

1,Scan mode: automatic , non- external trigger scanning;

2,The maximum scan rate:18kHz;

3,Vehicle speed:≤30km/h;Loading weight: 30 Tons

4,View angle:180 degrees

5,Scanner connecting cable: 10 meters (can be customized more than 10m)

6,Lighting components : Two single sealed LED surface light source ; Life : 50,000h

7,Under Vehicle image scanner with a unique open-wide field scan design;

8,Working voltage: DC24V

9,Power Supply:AC220V/50-60Hz

10,Structure design:single sealed design;

11,Environment temperature: -20 degrees - +55 degrees

12,Appearance: Aluminum copper alloy composite material

System host server and monitor :

1,Display:22 inch LCD Screen

2,CPU:INTEL Quad-Core Processor

3,Motherboard: dedicated motherboard

4,Memory : DDR3 , more than 2GB

5,Hard disk : 500G high-speed hard disk

6,Graphics card : DDR3, 192BIT independent graphics

7,Working voltage : AC220V 50/60Hz

8,Working temperature : -20 ℃ ~ 55 ℃

9,Data transmission cable length : 10m

License plate recognition system (China domestic only )

1,Standard 1 channel license plate recognition module, can be optionally extended to two or more channels ;

2,A single character recognition accuracy rate : ≥ 99%;

3,Average recognition time : <20ms;

4,Whole plate recognition accuracy rate : ≥ 95%

5,The image of license plate allows horizontal tilt angle: -10 to +10 degrees ;

6,Character(except Kanji) recognition accuracy:≥93%

7,Video SNR > 48db

For foreign countries, Our LPR camera only can take pictures of the license plates. If you need recognition function, you have to offer the recognition software and database locally, and send it before shipment. Our engineer would integrated to our software.
