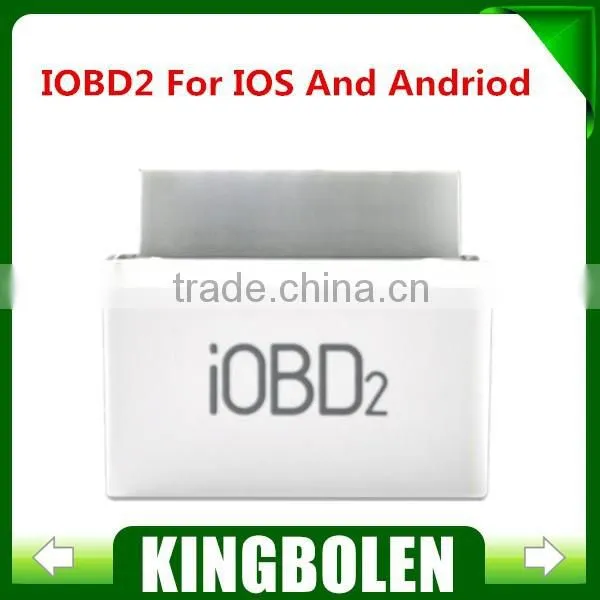

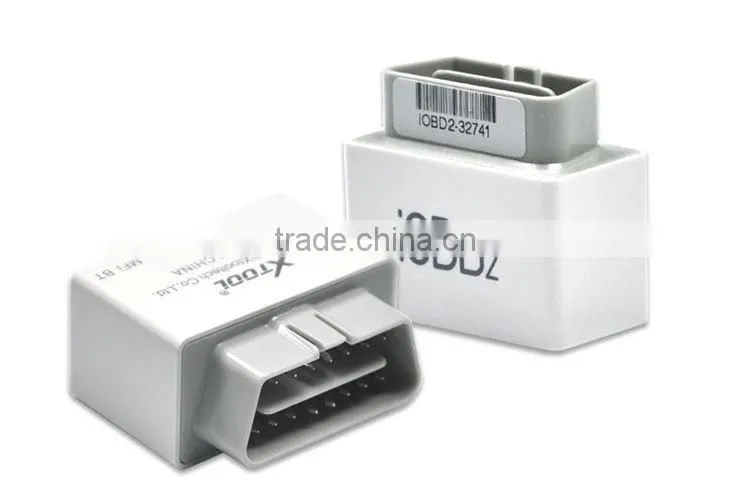

iOBD2 Wireless OBD2 Code Reader Scanner Auto Diagnostic Tool For Iphone and Android
iOBD2 MFi BT works with all 1996 and & newer model year cars and light trucks (OBDII & EOBD2)-domestic and import.
iOBD2 can be connected with all devices based on iOS and Android OS by Bluetooth.
OS |
Device |
Mode |
|
iOS
(Require iOS4.3 or later)
|
For iPod touch |
For iPod Touch 1st generation,2nd generation,3rd genaretion,4th generation |
For iPhone |
For iPhone, iPhone 3, iPhone 3GS iPhone 4, iPhone 4s, iPhone 5 |
|
For iPad |
For iPad, iPad 2,ipad 3,iPad Mini |
|
|
Android
(Require OS2.3 or later )
|
All android smart phone and tablet |
|
Recommended APP: iOBD2 (Can search and download it in Apple store and Google Play Store)
[Read DTC]: Reads the current DTCs stored in the car engine and shows their detailed information.
[Clear DTC]: Clears all the current DTCs.
[Live data]: Reads all the running parameters related to the ECU.
[Freeze frame data]: ECU will set DTCs and record the data stream of the car engine at the moment when emissions related faults occurred. And the data is called freeze frame data.
[Readiness test]: Shows the status of readiness test. Click Readiness test in the menu, the screen will display the test status of the car.
Support and complete: It means the car supports this test and has completed.
Support but incomplete: It means the car supports this test but has not completed.
Not supported: It means the car does not support this test.
My Dashboard
[Idle mode]: show you the engine rotational speed, water temperature, battery voltage, Air-intake temperature, instant fuel consumption (static), average fuel consumption.
[Cruise mode]: show you the vehicle speed, the current engine load, water temperature, Vehicle travel time, vehicle travel average speed, Continuous running mileage; instant fuel consumption (dynamic).
[Sport mode]: show you the engine rotational speed, vehicle speed, water temperature.
[Performance Test Function]:show you the vehicle speed, capacity, torque, horsepower and you can also customize your gauges here.
Support OBDII Protocols
1. ISO15765-4 (CAN)
2. ISO14230-4 (KWP2000)
3. ISO9141-2
4. J1850 VPW
5. J1850 PWM
Trip Route Tracking
This function can track your driving route. Select Setting on the phone, choose Privacy, Open the Location Services, and turn on iOBD2 (Picture 34, Picture 35). Run the iOBD2 app, choose "My dashboard", and start driving the car, it will automatically track the driving route and save it on History menu. When exiting "My dashboard", it will stop tracking the driving route. You can review the saved tracking route in History menu.
Performance Test
[0 to 100km/h accelerate/decelerate test]: Test acceleration/deceleration process time and distance.
[0 to 400m acceleration test]: Test spending time from 0 to 400 meters.
Setting
It allows users to change the unit of temperature, mileage, vehicle speed, fuel, fuel consumption, torque and horsepower, set the alarm for over speed, fatigue driving and water temperature, and set parameters of vehicle weight, fuel consumption coefficient and vehicle speed coefficient according to their needs on [Customize My Dashboard].
History
It is to save and review the recorded diagnostic data of the tested cars, such as live data, freeze frame data, trip record and my dashboard data. The data can be shared to Facebook and Twitter.
Dimension: 48*42*25 mm/1.89*1.66*0.99in.
Weight: 80g/ 2.83oz.
Operating Voltage: 8-19V DC
Operating Temperature: -20 to 50°C
Storage Temperature: -20 to 70°C
Bluetooth Standard: 2.1/2.0/1.2/1.1
IOBD2 is an app for your car. It turns your iPhone/iPod into an advanced display for your engine data.
Now you do not need to drive on with the MIL light on.
Now you do not need to wait to go to the garage with your car to know what is wrong.
Now you can prepare the garage staff in advance by knowing what is wrong with your car.
Now you can see what is wrong with your car on your holiday so that you know if you can drive on.
Now you can know what your fuel consumption, torque, or acceleration is, in real time.
Now ever wished you had your own customizable gauges, showing only the data you were interested in.
Language : English, Chinese, German, Italian, Russian, French, Spanish, Portuguese, Polish, Japanese,Korean
Please verify that your vehicle is OBD-IIEOBD compliant before purchasing
Get the benefit of multiple gauges without the overwhelming clutter and the expense!
Note: Not all OBD-II compliant vehicles will have support for all of these parameters
Performance gauges:
- Engine speed
- Corrected vehicle speed
- Open/closed loop
- Boost/vacuum combo gauge
- Acceleration and braking
Fuel economy gauges:
- Inst. fuel economy
- Avg fuel economy
Engine gauges:
- Timing spark advance
- Engine coolant temp.
- Intake air temp.
- Ambient air temp.
- Manifold absolute pressure
- Mass air flow
- Fuel trims, short and long term
- Percent engine load
- Catalyst temp.
- Fuel pressure
- Lambda gauge
- Air/fuel ratio
The Diagnostic function includes:
Read DTC
Read the current DTC that engine has stored, and DTC info.
Clear DTC
Clear all the current DTC.
Live data
Read all the running parameters that related to the ECU.
Freeze frame data
OBD system will record the system running parameters related to the malfunction the moment when it occurred at the same time when it set the DTC. And this group of data is called freeze frame data.
Readiness test:
Readiness reflects the status that all the valid diagnostic functions. The diagnostic functions are referring to the important monitoring functions in OBD system, e.g. sensor monitoring, sensor heater monitoring, and EGR system monitoring, etc. These diagnostic functions are closely related to the engine emission control.
Read vehicle info
Read vehicle info such as Vehicle Identification Number VIN, Calibration IDs CALID and Calibration Verification Number CVN
Sensor test
This service is to allow access to the on-board oxygen sensor monitoring test results. The same information may be obtained by the use of [Mode 6 test].
Mode 6 test
This service is to allow access to the results for on-board diagnostic monitoring tests of specific components/systems that are not continuously monitored. Examples are catalyst monitoring and the evaporative system monitoring.
EVAP System Test
The purpose of this service is to enable the external test equipment to control the operation of an on-board system, test or component.
My dashboard
The My dashboard function includes:
Idle mode engine rotational speed ,water temperature,battery voltage,Air-intake temperature,Instant fuel consumption static,average fuel consuption ,Ever wished you had your own customizable gauges, showing only the data you were interested in
Cruise mode vehicle speed, The current engine load, water temperature, Vehicle travel time, vehicle travel average speed, Continuous running mileage, instant fuel consumption dynamic,Ever wished you had your own customizable gauges, showing only the data you were interested in.
Sport mode: engine rotational speed, vehicle speed, water temperature
Performance test
The Performance testfunction includes:
Accelerate/Decelerate test: Test acceleration deceleration process time and distance
0 to 400m acceleration test: test spend time from 0 to 400 meters.
Diagnostic software updating
Users can find out the latest software release info, downloading and installing procedures info by logging on to app store.
History
Record DTC, live data, freeze frame data,my dashboard data. And you can share the record what you get from the car by IOBD2 on Twitter and Facebook.
Emissions Testing:
- Read and clear diagnostic trouble codes
- IM Readiness status
Components
The hardware includes: iOBD2 unit
The software includes: iOBD2 client software,you can source iobd2 software and download it from apple store
