Home > Auto, Motorcycle Parts & Accessories > Vehicle Repair Equipment & Tools > Diagnostic Tool > Super TOYOTA It 2 Diagnostic Tool With Suzuki.
US$ 4 - 6
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Engine Analyzer
Voltage:
12v
Power:
Hz
Payment & Shipping
Payment Methods:
Port of Shipment:
HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Popular Tool Toyota IT 2 Tester With Suzuki Two Cards for Toyota,Lexus,suzukiUS$ 1 - 2MOQ: 1 Set -
Latest Software Version Toyota it 2 Shipping Fast and Convenient on Sale.US$ 4 - 6MOQ: 1 Set
-
Toyota Intelligent Tester 2 Best Selling Toyota it 2.US$ 4 - 6MOQ: 1 Set
-
Competitive Price Auto Scanner TOYOTA Lexus Scion TIS Interface MVCIUS$ 1 - 500MOQ: 1 Set
-
Latest 2014 MVCI for TOYOTA TIS, VOLVO VIDA DICE and for H0NDA HDS TOGETHER Diagnostic Scanner ToolNegotiableMOQ: 1 Set
Type
Engine Analyzer
Voltage
12v
Power
Hz
Certification
CE
Applicable Models
Toyota
Place of Origin
Guangdong, China
Brand Name
For TOYOTA ITIS
Model Number
For TOYOTA ITIS
Specifications
Super TOYOTA IT 2:1.Full function
2.Low price in China
3.Hot sale products
4.Timely delivery
Manufacturer Specifications:

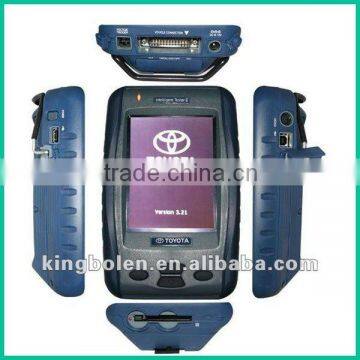

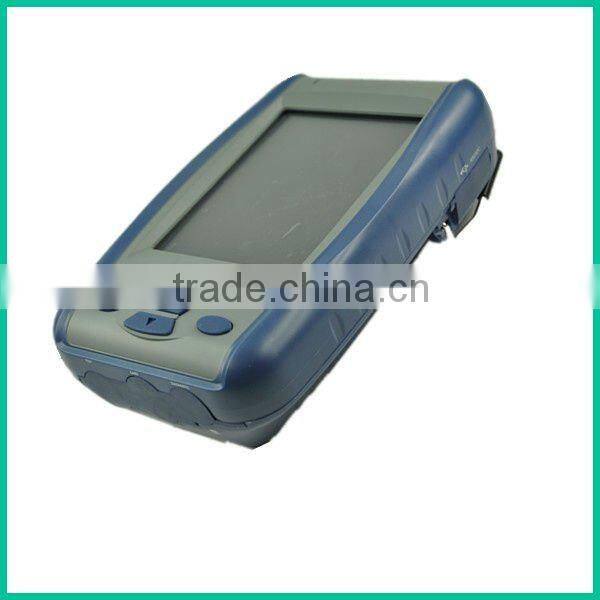

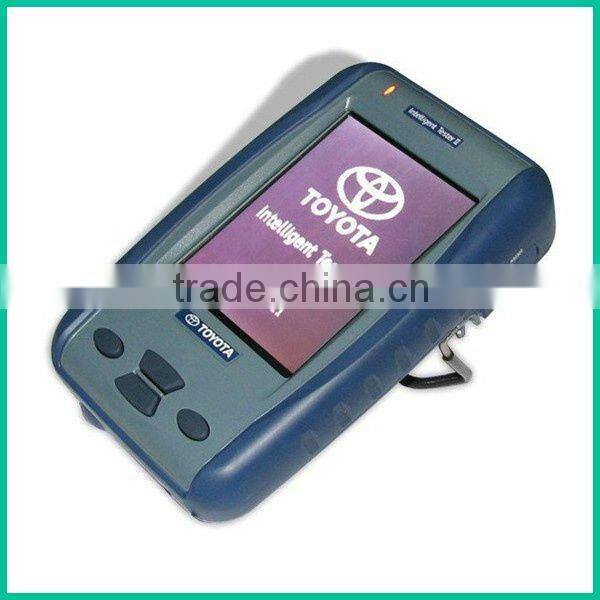

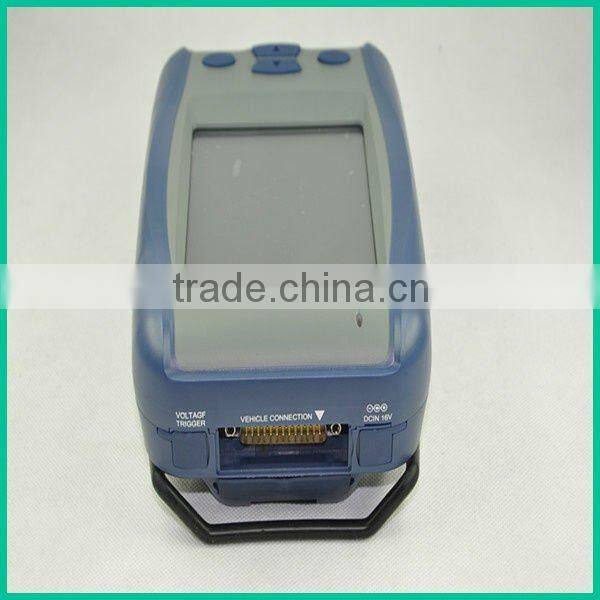

Toyota Intelligent Diagnostic Tester-2(DST-2) for TOYOTA & LEXUS is a touch screen tool that enables you to diagnose control system for engines, ABS and airbag, even through CAN-diagnosis communication.TOYOTA Intelligent,Tester IT2
Function:
1. All type of Toyota(made after 1996) and Lexus included read code, clear code , data flow, action testing and guard against theft initialization function. And it also supports OBD-II.
2.DENSO Diagnostic Tester-2(DST-2) for TOYOTA & LEXUS enables you to diagnose control system for engines, ABS and airbag, even through CAN-diagnosis communication.
3.CAN communication Diagnosis DST-2 realizes more accurate diagnosis through CAN communication that speed is 50 times faster than conventional.
4.Easy operation on LCE display with touch panel 5.7 inch full color display with touch panel assists an easier operation
5.Voltmeter and Oscilloscope not only communication basis diagnosis (Diagnostic code, ECU data monitor, Active test), but also voltmeter and oscilloscope detect alteration in the electric signal to find out the troubling part.
6.Data recording to your PC saved data such as data-list can be downloaded to your pc
2.DENSO Diagnostic Tester-2(DST-2) for TOYOTA & LEXUS enables you to diagnose control system for engines, ABS and airbag, even through CAN-diagnosis communication.
3.CAN communication Diagnosis DST-2 realizes more accurate diagnosis through CAN communication that speed is 50 times faster than conventional.
4.Easy operation on LCE display with touch panel 5.7 inch full color display with touch panel assists an easier operation
5.Voltmeter and Oscilloscope not only communication basis diagnosis (Diagnostic code, ECU data monitor, Active test), but also voltmeter and oscilloscope detect alteration in the electric signal to find out the troubling part.
6.Data recording to your PC saved data such as data-list can be downloaded to your pc
Specification:
1.Feature
Dimensions 145mm x 223mm x 71mm
Source voltage DC 10-32V
Power consumption normail:7w(12VDC) charging:10w(12VDC)
Operation temp: 0~45°C
Storage temp: -10~ 60°C
LCD Display 5.7 inch
Touch panel input: by finger or stylus pen
Key four(up, down, two function keys)
Built-in clock for a time stamp
PC communication PC card slot CF x 1ch
USB Host: 1ch function:1 ch
Serial 1ch ( RS-232C)
Vehicle communication CAN, ISO9141
Back up power supply lithium-ion battery 7.4v 1000mAH
Dimensions 145mm x 223mm x 71mm
Source voltage DC 10-32V
Power consumption normail:7w(12VDC) charging:10w(12VDC)
Operation temp: 0~45°C
Storage temp: -10~ 60°C
LCD Display 5.7 inch
Touch panel input: by finger or stylus pen
Key four(up, down, two function keys)
Built-in clock for a time stamp
PC communication PC card slot CF x 1ch
USB Host: 1ch function:1 ch
Serial 1ch ( RS-232C)
Vehicle communication CAN, ISO9141
Back up power supply lithium-ion battery 7.4v 1000mAH
2.Character
1)Touchscreen & back lighting control
2)Easy & quick
3)User needn't worry about the after service since factory has an open patio for maintenance.
4)Language: English/Germany/French/Spanish/Italian/Chinese
5)how to update:CD update
Product list:
1. Mainframe -- 1pc
2. OBD-II -- 1pc
3. Charging line -- 1pc
4. Lin line -- 1pc
5. Measuring leads for multimeter 1 -- 1pc
6. Measuring leads for multimeter 2 -- 1pc
