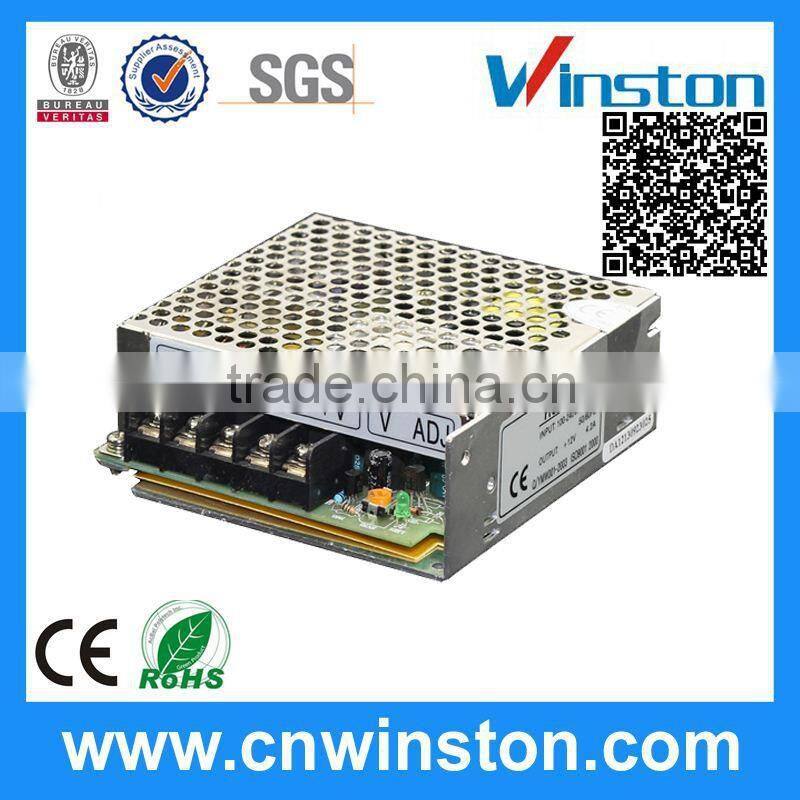

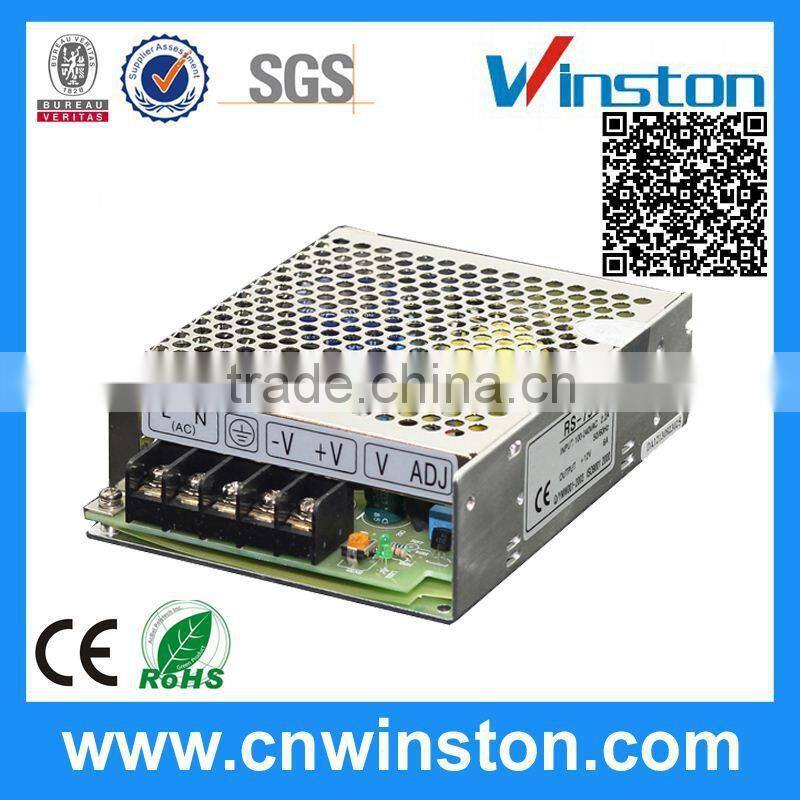

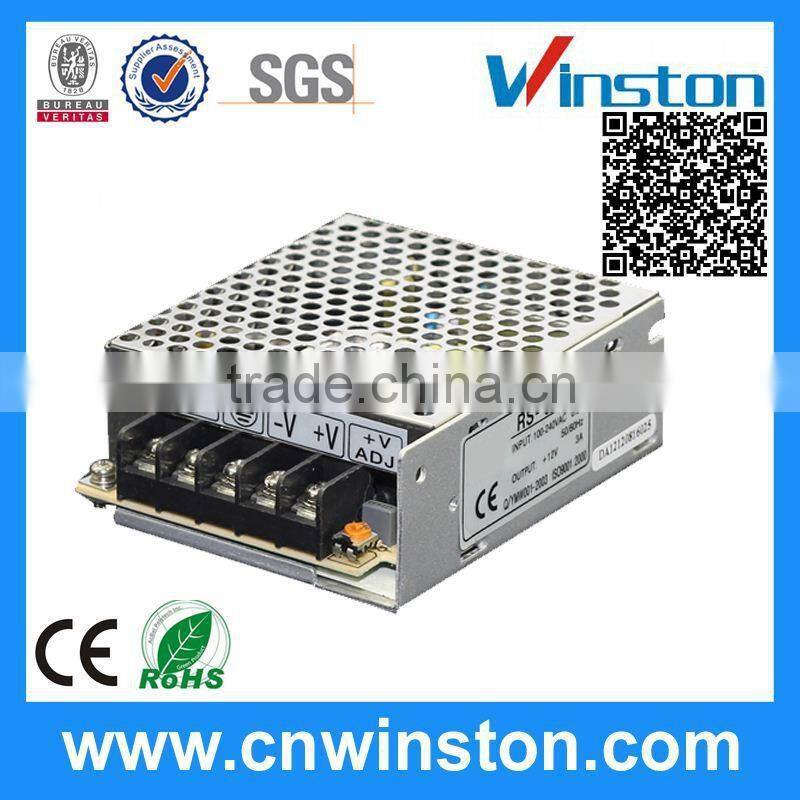

RS-75-15 75W 15VDC 5A 75w 15v smps
1. Features
1. All using 105°C ling life electrolytic capacitors
2. Protections: Short circuit/ OLP/ OVP
3. Meet EMS EN50082-2/EN61000-6 heavy industry level 935~150W)
4. Withstand 300VAC surge input for 5 seconds.
5. High operating temperature up to 70°C withstand 5G vibration test,
6. Miniature size, high power density
7. High efficiency, ling life and high reliability
8. 100% full load burn-in test
9. Suitable for cirtical applications
10. 2 years warranty
11. RS-75 Switch Power Supply Manufacture DC AC PSU
2. Specification
| Model | Output | Tolerance Voltage | Ripple and Noise | Efficiency |
| RS-75-3.3 | 3.3V, 0-15A | ± 3% | 80mvp-p | 71% |
| RS-75-5 | 5V, 0-12A | ± 2% | 80mvp-p | 76% |
| RS-75-12 | 12V, 0-6A | ± 1% | 120mvp-p | 81% |
| RS-75-15 | 15V, 0-5A | ± 1% | 120mvp-p | 82% |
| RS-75-24 | 24V, 0-3.2A | ± 1% | 120mvp-p | 85% |
| RS-75-48 | 48V, 0-1.6A | ± 1% | 200mvp-p | 86% |
1. AC input voltage range: 88-264VAC universal input
2. AC inrush current (max.): Clod start 40A at 230VAC
3. DC adjustment range: ± 10% by potential meter for single output.
4. CH1 -5%~10% by potential meter for multiple output
5. Over load protection: 110%-150% (150%-190% for RID-125-1205/2405)
6. Over voltage protection: 115%-135% rated output voltage, hiccup mode, auto-recovery.
7. Withstand voltage: I/P-O/P: 3KVAC,
8. Working temperature: -20-+70°C (refer to the derating curve for different models)
9. Vibration: 10-500Hz, 2G 10min/ 1cycle, period for 60min each along X,Y,Z axes.
10. Safety standards:UL60950-1,TUV EN60950-1 appoved
11. EMC standards: EN 55022 class B, EN61000-3-2,3,EN6100-4,2,3,4,5,6,8,11en61000-6-2 (EN50082-2)
12. Connection: Terminal block for input and output
13. Dimension (L*W*H): 129*98*38 mm
3. Please Note:
1. The testing condition for the parameter above is: 230VAC input, rated load, 25°C 70%Rh, Humidity.
2. Error, include the setting error, line stability and load stability.
3. Wave test: adopting "A12" double wire for 20MHZ, and 0.1uF&uF capacitor short-circuit for interrupting.
4. Inlet Voltage Stability test: when is over load, the lowest voltage of inler is representative to the highest voltage.
5. Load stability test: the load is from 0% to 100%, others 60%.
6. Total output canbe maximum Current, total load can not exceed the maximum output power.

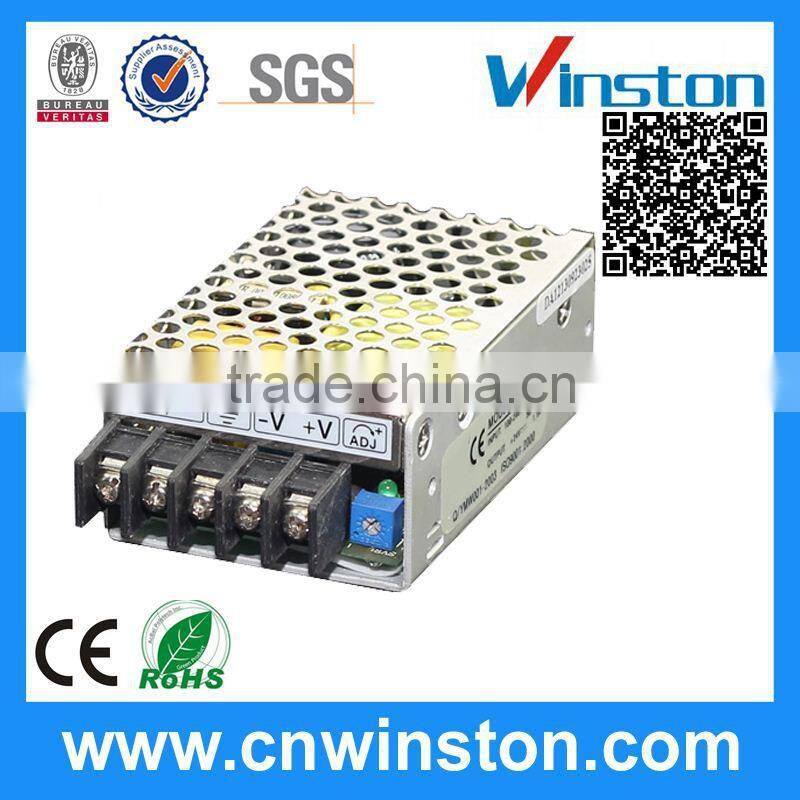

4.More models:
75w 15v smps 75w 15v smps 75w 15v smps
