CKJ5-800 Big Current 3 Phase AC Low Voltage Vacuum Circuit Contactor With CE

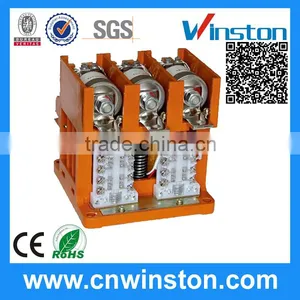

CKJ5-800 Big Current 3 Phase AC Low Voltage Vacuum Circuit Contactor With CE thumbnail-1

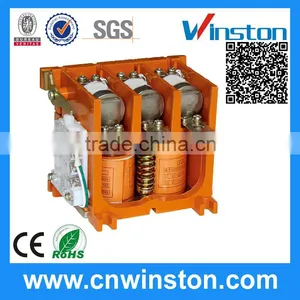

CKJ5-800 Big Current 3 Phase AC Low Voltage Vacuum Circuit Contactor With CE thumbnail-2
CKJ5-800 Big Current 3 Phase AC Low Voltage Vacuum Circuit Contactor With CE photo-1
CKJ5-800 Big Current 3 Phase AC Low Voltage Vacuum Circuit Contactor With CE photo-2
US$ 600 - 650 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
WINSTON/OEM
Model Number:
CKJ5-800
Contact Supplier Request Quote Chat Now
Yueqing Winston Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Shanghai or others
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name WINSTON/OEM
Model Number CKJ5-800
Type Vacuum
Poles Number 3



Product Description



Vacuum contactors utilize vacuum bottle encapsulated contacts to suppress the arc. This arc suppression allows the contacts to be much smaller and use less space than air break contacts at higher currents. As the contacts are encapsulated, vacuum contactors are used fairly extensively in dirty applications, such as mining.

Vacuum contactors are only applicable for use in AC systems. The AC arc generated upon opening of the contacts will self-extinguish at the zero-crossing of the current waveform, with the vacuum preventing a re-strike of the arc across the open contacts. Vacuum contactors are therefore very efficient at disrupting the energy of an electric arc and are used when relatively fast switching is required, as the maximum break time is determined by the periodicity of the AC waveform.

characteristics





Model Rated Voltage Rated Current Main contact parameters
Frequency voltage (V) (RMS)

Main Electric Circuit
Main Electric Circuit Control electric circuit (A) contact distance(mm) contact overtravel(mm) contact pressure(mm) Main Electric Circuit Auxiliary circuit Control electric circuit
CKJ5-63/1140 1140 36,110,220,380 80 1.8±0.2 >1 30±5 4200 2500 2000
CKJ5-125/1140 1140 36,110,220,380 125 1.8±0.2 >1 30±5 4200 2500 2000
CKJ5-160/1140 1140 36,110,220,380 160 1.8±0.2 >1 30±5 4200 2500 2000
CKJ5-250/1140 1140 36,110,220,380 250 2±0.2 >1.5 80±10 4200 2500 2000
CKJ5-400/1140 1140 36,110,220,380 400 2+0.5/0 >1.5 120±20 4200 2500 2000
CKJ5-630/1140 1140 36,110,220,380 630 2+0.5/0 >1.5 190±20 4200 2500 2000
CKJ5-800/1140 1140 36,110,220,380 800 2+0.5/1 >1.5 190±20 4200 2500 2000
CKJ5-1000/1142 1140 36,110,220,380 1000 2+0.5/2 >1.5 190±20 4200 2500 2000






Model 		making capacity breaking capacity Breaking Current(A) Electric life time Mechanical life Weight
AC3 AC4
CKJ5-63/1140 10Ie,100Times 8Ie,25Times 2000,3Times 60×104 6×104 300×104 3.8kg
CKJ5-125/1140 10Ie,100Times 8Ie,25Times 2000,3Times 60×104 6×104 300×104 3.8kg
CKJ5-160/1140 10Ie,100Times 8Ie,25Times 2000,3Times 60×104 6×104 300×104 3.8kg
CKJ5-250/1140 10Ie,100Times 8Ie,25Times 4500,3Times 60×104 6×104 300×104 8kg
CKJ5-400/1140 10Ie,100Times 8Ie,25Times 4500,3Times 60×104 2×104 300×104 11.3kg
CKJ5-630/1140 10Ie,100Times 8Ie,25Times 6000,3Times 60×104 0.5×104 300×104 19.5kg
CKJ5-800/1140 10Ie,100Times 8Ie,25Times 7200,3Times 60×104 0.5×104 300×104 20.5kg
CKJ5-1000/1140 10Ie,100Times 8Ie,25Times 8500,3Times 60×104 0.5×104

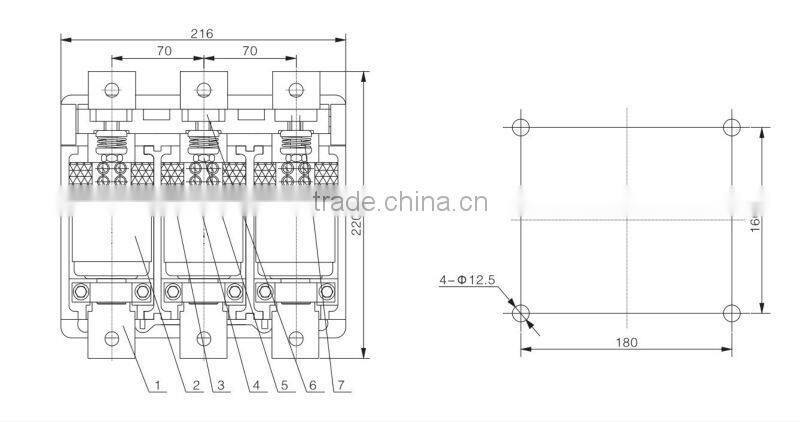

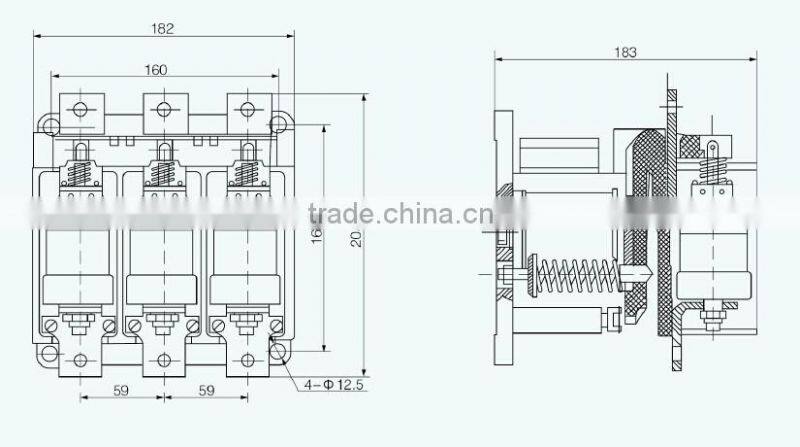

Overall dimensions



Certifications

 CKJ5-800 Big current 3 Phase AC Low Voltage Vacuum Circuit Contactor with CE

CKJ5-800 Big current 3 Phase AC Low Voltage Vacuum Circuit Contactor with CE

Packaging & Shipping


CKJ5-800 Big current 3 Phase AC Low Voltage Vacuum Circuit Contactor with CE

CKJ5-800 Big current 3 Phase AC Low Voltage Vacuum Circuit Contactor with CE

CKJ5-800 Big current 3 Phase AC Low Voltage Vacuum Circuit Contactor with CE

Company Information

 CKJ5-800 Big current 3 Phase AC Low Voltage Vacuum Circuit Contactor with CE

CKJ5-800 Big current 3 Phase AC Low Voltage Vacuum Circuit Contactor with CECKJ5-800 Big current 3 Phase AC Low Voltage Vacuum Circuit Contactor with CECKJ5-800 Big current 3 Phase AC Low Voltage Vacuum Circuit Contactor with CECKJ5-800 Big current 3 Phase AC Low Voltage Vacuum Circuit Contactor with CE

FAQ



Q 1. what's the payment term?

A. We accept TT,30% deposit and 70% balance agaisnt copy of BL


Q 2. how's the delivery time ?

A. usually it will take about 10 days for production


Q 3. tell me the standard of package?

A. Export standard carton box



Q 4.Could you offer Form A or C/O ?

A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.


Q 5.Would you accept to use our logo ?

A.If you have good quantity,it absolute no problem to do OEM.


Q 6.We want to know month capacity.

A. It depends on which model.For example for 100A, month capacity can reach near 20000pcs.


Q 7.Where is your market?

A. Our products are popular in Russia, Indonisia, Philippines,Italy, America, Brazil and so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.





“Facts speak louder than words”. For more informations, Inquiry NOW !!!
