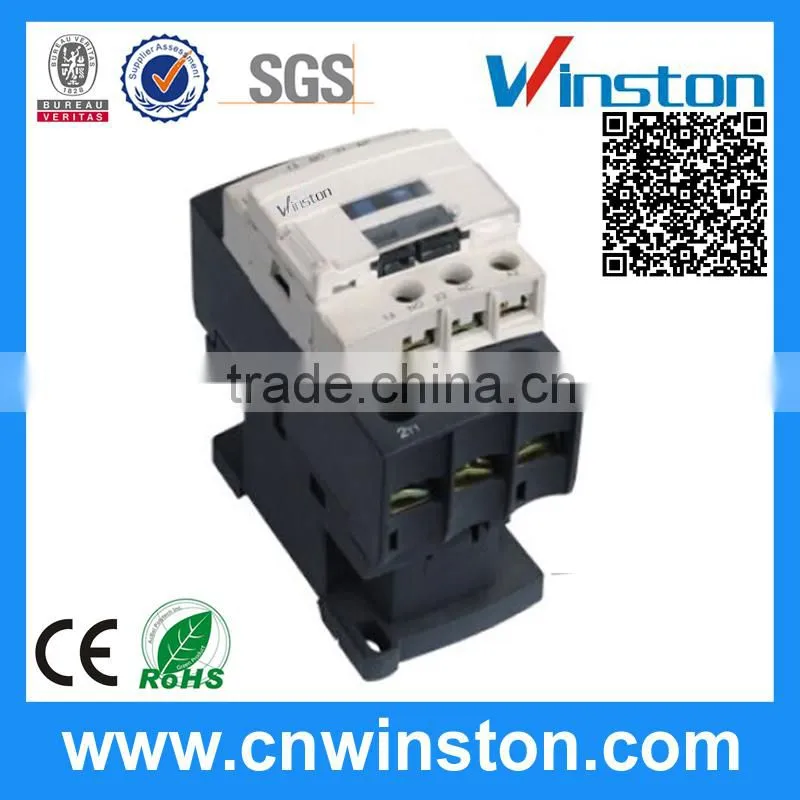

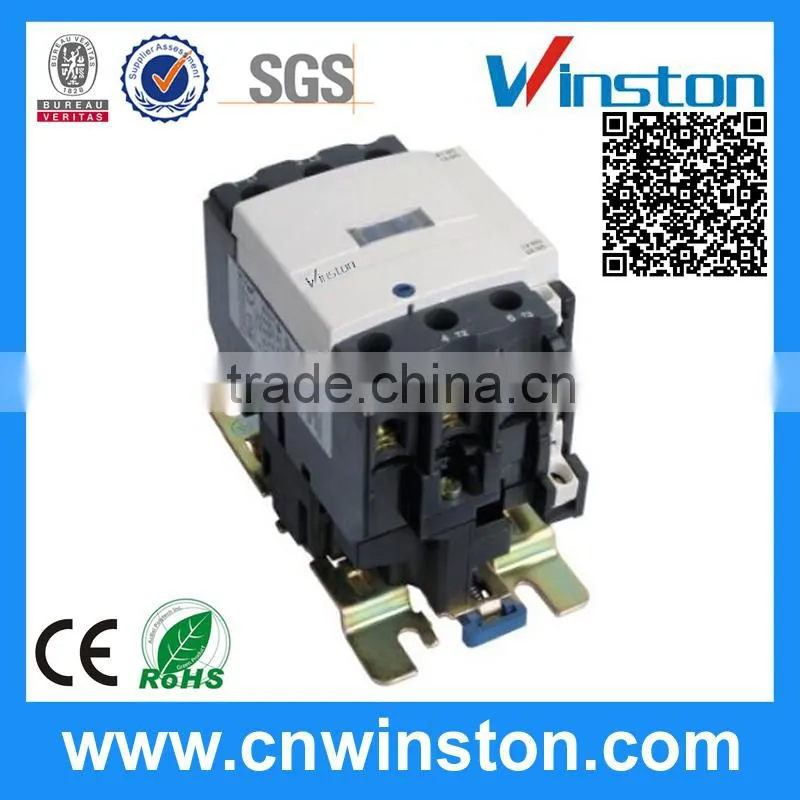

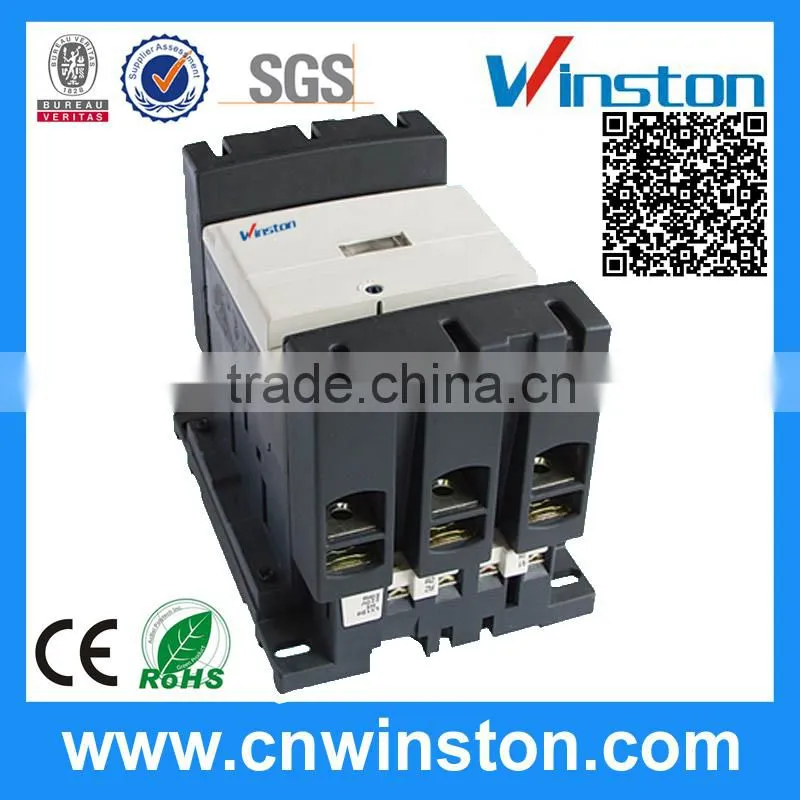

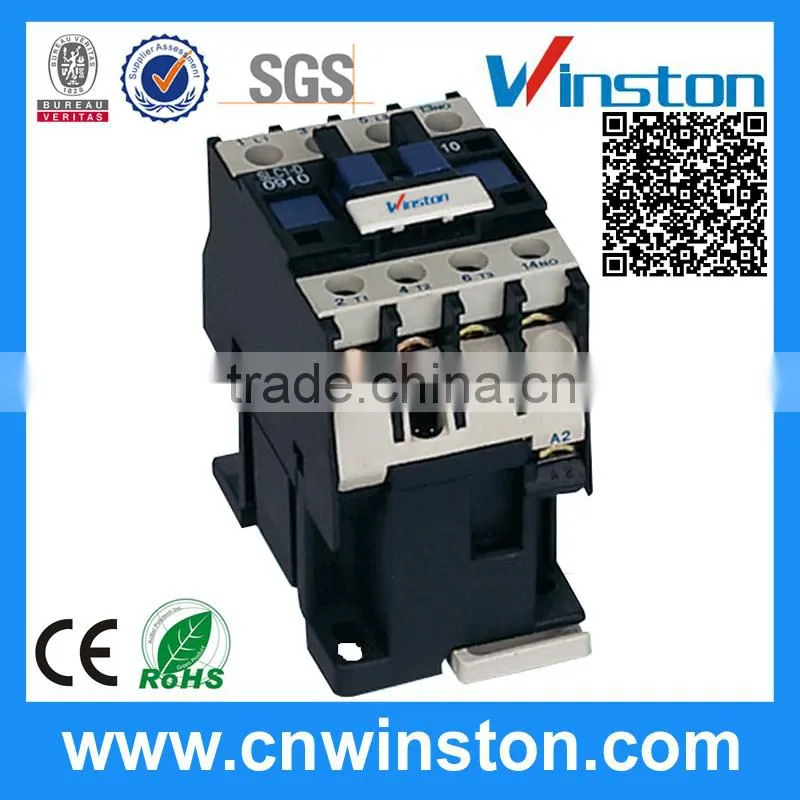

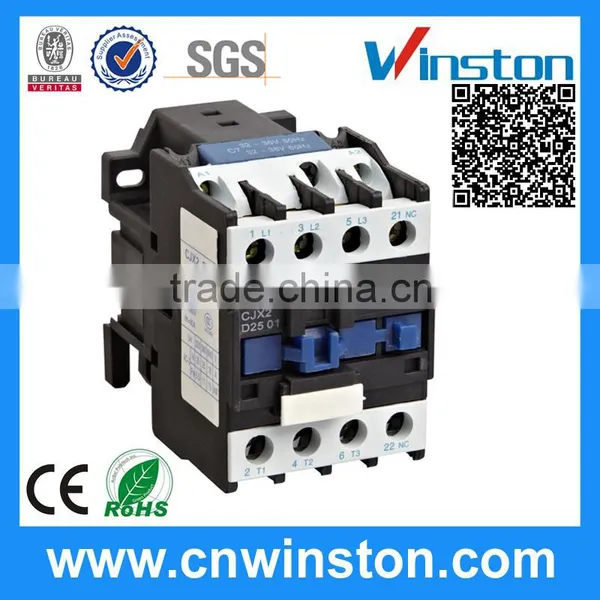

NLC1-32 AC Industrial Electromagnetic Air Conditioner Contactor With CE

NLC1-32 AC Industrial Electromagnetic Air Conditioner Contactor With CE thumbnail-1
NLC1-32 AC Industrial Electromagnetic Air Conditioner Contactor With CE thumbnail-2
NLC1-32 AC Industrial Electromagnetic Air Conditioner Contactor With CE thumbnail-3
NLC1-32 AC Industrial Electromagnetic Air Conditioner Contactor With CE thumbnail-4
NLC1-32 AC Industrial Electromagnetic Air Conditioner Contactor With CE thumbnail-5
NLC1-32 AC Industrial Electromagnetic Air Conditioner Contactor With CE photo-1
NLC1-32 AC Industrial Electromagnetic Air Conditioner Contactor With CE photo-2
NLC1-32 AC Industrial Electromagnetic Air Conditioner Contactor With CE photo-3
NLC1-32 AC Industrial Electromagnetic Air Conditioner Contactor With CE photo-4
NLC1-32 AC Industrial Electromagnetic Air Conditioner Contactor With CE photo-5
US$ 4.4 - 5.5 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
WINSTON/OEM
Model Number:
NLC1-3210,NLC1-3201
Contact Supplier Request Quote Chat Now
Yueqing Winston Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Shanghai or others
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name WINSTON/OEM
Model Number NLC1-3210,NLC1-3201
Type Air
Poles Number 3



Product Description

 Installation method



1.with two screws



2.35mm din rail



 NLC1-D Series AC contactor(simplified AC contactor in the following)is suitable for using in the circuits up to the rated voltage 660V AC 50Hz or 60Hz,rated current 95A,for making and breaking and frequent starting,controlling the AC motor.Combined with the auxiliary contact group,air delayer,machine interlocking devece etc,it is combined into the delay contactor,mechanical interlocking device etc, it is combined into the delay contactor,mechanical interlocking contactor,star-triangle starter, with the thermal relay,it is combined into the electromagnetic starter.

characteristics



Type
NLC1-09
NLC1-12
NLC1-18
NLC1-25
NLC1-32
NLC1-40
NLC1-50
NLC1-65
NLC1-80
NLC1-95
Rated insulation
660
660
660
660
660
660
660
660
660
660
Conventional thermal current
20
25
32
40
50
60
75
80
110
125
C3 Rated operational current
9
12
16
25
32
40
50
63
80
95
Controlled power(kw)
2.2
3
4
5.5

11
15
18.5
22
25
4
5.5
7.5
11

18.5
20
30
37
45
4
5.5
9
11

22
25
37
45
45
4
5.5
9
11

22
30
37
45
45
5.5
7.5
10
15

30
33
37
45
45
Note
The installation of the relays can use two screws and also use the 35mm installation rail
The installation of the relays can use three screws and also use the 75mm or 35mm installation rail







Type NLC1-09 NLC1-12 NLC1-18 NLC1-25 NLC1-32 NLC1-40 NLC1-50 NLC1-65 NLC1-80 NLC1-95
Pick-up voltage
50/60Hz(V) 		(0.85~
1.1)Us 		(0.85~
1.1) Us 		(0.85~
1.1)Us 		(0.85~
1.1)Us 		(0.85~
1.1)Us 		(0.85~
1.1)Us 		(0.85~
1.1)Us 		(0.85
~1.1)Us 		(0.85~
1.1)Us 		(0.85~
1.1)Us
Release voltage
50/60Hz(v) 		(0.2~
0.75)Us 		(0.2~
0.75)Us 		(0.2~
0.75)Us 		(0.2~
0.75)Us 		(0.2~
0.75)Us 		(0.2~
0.75)Us 		(0.2~
0.75)Us 		(0.2~
0.75)Us 		(0.2~
0.75)Us 		(0.2~
0.75)Us
Coil power 50Hz

60Hz

  		Pick-up(VA) 70 70 110 110 110 200 200 200 200 200
Holding(VA) 8 8 11 11 11 20 20 20 20 20
Pick-up(VA) 80 80 115 115 115 200 200 200 200 200
Holding(VA) 8 8 11 11 11 20 20 20 20 20
Power
consumption
(W) 		1.8~2.7 1.8~2.7 3~4 3~4 3~4 6~10 6~10 6~10 6~10 6~10




Overall dimensions

 NLC1-32 AC Industrial Electromagnetic Air Conditioner Contactor with CENLC1-32 AC Industrial Electromagnetic Air Conditioner Contactor with CE

NLC1-32 AC Industrial Electromagnetic Air Conditioner Contactor with CENLC1-32 AC Industrial Electromagnetic Air Conditioner Contactor with CE

Certifications

 NLC1-32 AC Industrial Electromagnetic Air Conditioner Contactor with CE

NLC1-32 AC Industrial Electromagnetic Air Conditioner Contactor with CE

Packaging & Shipping


NLC1-32 AC Industrial Electromagnetic Air Conditioner Contactor with CE

NLC1-32 AC Industrial Electromagnetic Air Conditioner Contactor with CE

NLC1-32 AC Industrial Electromagnetic Air Conditioner Contactor with CE

Company Information

 NLC1-32 AC Industrial Electromagnetic Air Conditioner Contactor with CE

NLC1-32 AC Industrial Electromagnetic Air Conditioner Contactor with CENLC1-32 AC Industrial Electromagnetic Air Conditioner Contactor with CENLC1-32 AC Industrial Electromagnetic Air Conditioner Contactor with CENLC1-32 AC Industrial Electromagnetic Air Conditioner Contactor with CE

FAQ



Q 1. what's the payment term?

A. We accept TT,30% deposit and 70% balance agaisnt copy of BL


Q 2. how's the delivery time ?

A. usually it will take about 10 days for production


Q 3. tell me the standard of package?

A. Export standard carton box



Q 4.Could you offer Form A or C/O ?

A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.


Q 5.Would you accept to use our logo ?

A.If you have good quantity,it absolute no problem to do OEM.


Q 6.We want to know month capacity.

A. It depends on which model.For example for 100A, month capacity can reach near 20000pcs.


Q 7.Where is your market?

A. Our products are popular in Russia, Indonisia, Philippines,Italy, America, Brazil and so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
