Product Details
Place of Origin: | Hebei, China | Brand Name: | Qirun | Model Number: | QR-KR/S/B/WRe |
Product Description
Packaging & Delivery
Packaging Details: | 1Piece/Carton |
---|---|
Delivery Detail: | 20 days after receiving the deposit |
Specifications
Many years' experience in detecting instrument ' manufactures
We have obtained the ISO 9001
The acousto-optics alarm:
a.The gree light bright expression thermcouple puts through,the measuring appliance enters the preparation condiction.
b.The yellow light brightly expressed the measuring appliance is surveying.
c.The red candle bright expressiong survey process ended,at the same time the electric bell inspires the sound,4-20mA or 1-5V analog output interface (specify when ordering),BCD at-large external display for the parallel interface
(specify when ordering),(Printer interface (specify when ordering)).
The basic parameters and structure

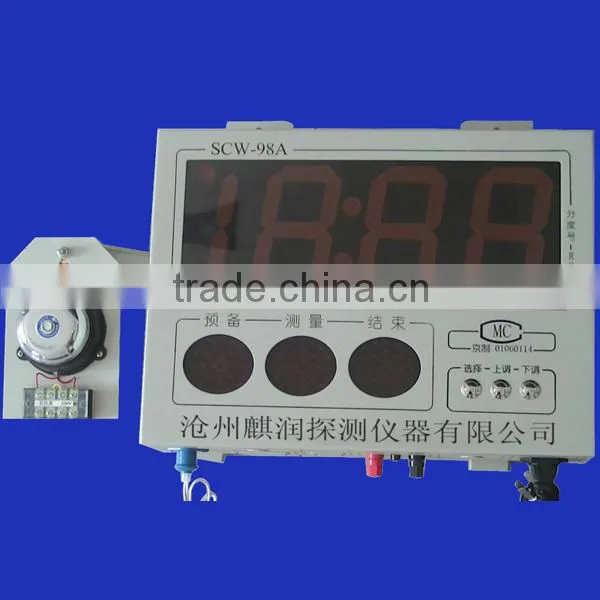

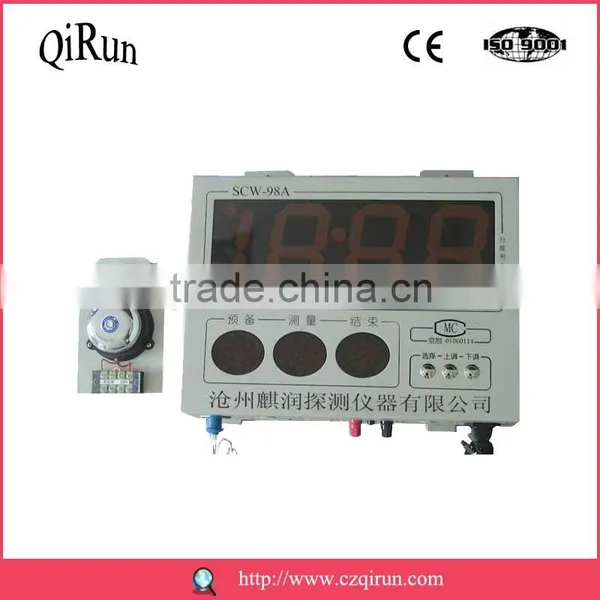

Type | SCW-98A | |||
Graduation | S | D | R | B |
Temperature range: | 1200-1769 | 1000-1999 | 1200-1769 | 1200-1820 |
Continuous measuring temperature range | 0-1769 | 0-1999 | 0-1769 | 400-1820 |
External Port | 1.Print port 2. Bell 3 Isolator BCD code 4Analogue port | |||
display screen | Three and a half display ,Text height 127mm, High-brightness red LED | |||
size | 410mm*300mm*95mm hooking distance:230mm | |||
Structure | Wall hanging | |||
Weight | 4KG |
Temperaure Devices of thermocouple
The devices of thermocouple is must need to connect thermocouple Lance Assemblies and thermocouple.
Type | SCW-98A | |||
Graduation | S | D | R | B |
Temperature range: | 1200°C-1769°C | 1000°C-1999°C | 1200°C-1769°C | 1200°C-1820°C |
Continuous measuring temperature range | 0°C-1769°C | 0°C-1999°C | 0°C-1769°C | 400°C-1820°C |
External Port | 1.Print port 2. Bell 3 Isolator BCD code 4Analogue port | |||
display screen | Three and a half display ,Text height 127mm, High-brightness red LED | |||
size | 410mm*300mm*95mm hooking distance:230mm | |||
Structure | Wall hanging | |||
Weight | 4KG | |||
Type | SCW-98AP | |||
Graduation | S | D | R | B |
Temperature range: | 1200°C-1769°C | 1000°C-1999°C | 1200°C-1769°C | 1200°C-1820°C |
Continuous measuring temperature range | 0°C-1769°C | 0°C-1999°C | 0°C-1769°C | 400°C-1820°C |
External Port | 1.Print port 2. Bell 3 Isolator BCD code 4Analogue port | |||
display screen | Four figures display ,Text height 46mm, High-brightness red LED | |||
size | 322mm*346mm*106mm Size of hole:322mm(wide)*92mm(high) | |||
Structure | Put in tray | |||
Weight | 4KG | |||
Type | SCW-98B | |||
Graduation | S | D | R | B |
Temperature range: | 1200°C-1769°C | 1000°C-1999°C | 1200°C-1769°C | 1200°C-1820°C |
Continuous measuring temperature range | 0°C-1769°C | 0°C-1999°C | 0°C-1769°C | 400°C-1820°C |
External Port | bell | |||
display screen | Four figures display ,Text height 60mm, High-brightness red LED | |||
size | 322mm*346mm*106mm Size of hole:322mm(wide)*92mm(high) | |||
Structure | Wall hanging | |||
Weight | 3KG | |||
|
