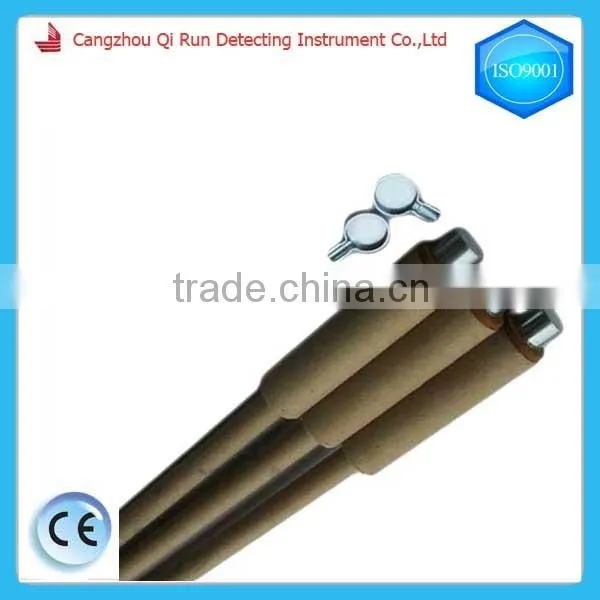

Compound Sublance Probe 3 in 1 Immersion Probe for Iron-works

Compound Sublance Probe 3 in 1 Immersion Probe for Iron-works thumbnail-1
Compound Sublance Probe 3 in 1 Immersion Probe for Iron-works photo-1
US$ 2.5 - 9.5 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
qirun
Model Number:
QR
Contact Supplier Request Quote Chat Now
Cangzhou Qirun Detecting Instrument Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name qirun
Model Number QR
Product Description
Sampling Cup
Sampling Size
Round:

Ø30*14mm, 12mm, 9mm; Ø32*14mm,13mm; Ø34*12mm,11mm;

Ø35* 12mm,8mm,6mm Ø37*17mm;

Oval: Ø34*40*12mm
Paper Tube
600mm-1200mm
Cap
iron,steel,etc



According to shape and size of sampler cup:

Name: Immersion molten steel sampler

Model:QR-KQY/N-301

The dimension of the sampling mould is Ø30*14mm

Model:QR-KQY/N-302

The dimension of the sampling mould is Ø30*12mm

Model:QR-KQY/N-305

The dimension of the sampling mould is Ø30*9mm



Model:QR-KQY/N-341
The dimension of the sampling mould is Ø34*11mm

Model:QR-KQY/N-342
The dimension of the sampling mould is Ø34*12mm


Model:QR-KQY/N-32
The dimension of the sampling mould is Ø32*13mm

Model:QR-KQY/N-37
The dimension of the sampling mould is Ø37*17mm

We have all kinds of shapes and sizes. Customers can choose the best ones according to the request and can also order the special sizes.


According to shape of paper tube:


We can also custom-made the length according to the customer’s requirements.


According the different thermocouple wire, thermocouple has four type are S,R,B & WRe Type.


Type
Model
+leg
-leg
R
QR-KR
PtRh13%
Pt
S
QR-KS
PtRh10%
Pt
B
QR-KB
PtRh30%
PtRh6%
Type
Model
Max. working Temperature(°c)
Wire diameter(mm)
R
QR-KR
1760°c
0.05
S
QR-KS
1760°c
0.05
B
QR-KB
1800°c
0.05



According the different thermocouple connector, thermocouple head can be dividing in 604 type.


Type
Model
604(Triangle bottom)
QR-KR/S/B/W-604

According the different thermocouple wire tolerance, It have two type are common thermocouple wire(P) and exact thermocouple wire(J).


Type
Model
Accuracy
P(common wire)
QR-KR/S/B/W-604/602P
≤5°c
J (exact wire)
QR-KR/S/B/W-604/602J
≤2°c

Oxygen activity measuring:

A,) Range: 1~1000ppm

B,) Tolerance: >150ppm, 5ppm

<20ppm, 0.5ppm

C,) Measuring Time: <5s

Oxygen electrical potential measuring:

A,) Range: -300/+350mv

B,) Tolerance: 2mv

C,) Measuring Time: <5s


According to whether the deoxidant is added in sampler:

Type: 3 in 1 sampler with deoxidant

Model:QR-KQY/zr /AL

Type: Immersion molten steel sampler without deoxidant

Model:QR-KQN


Our Company

Cangzhou Qirun Detecting Instrument Co., Ltd is formerly named Nanpi Electronics factory has been engaged in manufacturing metallurgical industry, detection, sensing and instrumentation since 1996.We are located in Cangzhou city, Hebei province. The company covers an area of 20000 square meters. A group of highly experienced professionals and technical talents provide the powerful guarantee for the product quality.

Meanwhile, we can offer OEM service to our customers. We have obtained the ISO 9001certificate and all of our products are up to the international standards in this industry. At present, our products are not only popular in domestic, but also sold to England, Korea, Russia, North America, South America, Eastern Europe, Southeast Asia, Africa, Mid East, Eastern Asia and other counties.


Our pursuit is to grow to be a worldwide leader in the manufacture and supply of detecting instruments to meet different customers’ demands.

Our company upholds "reasonable prices, high-quality service, quality first, altogether wins advances together, creates magnificently". The operating principle of providing professional services, credibility of the first and stable quality products for domestic and foreign customers new and old.

We are certain you will find doing business with us smooth and hassle free and invite you to contact us soon. We are looking forward to working with you and your company.

Certifications
Packing & Delivery
FAQ

Q: 1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q: 2. What is the lead time?

A:Sample needs 1-3 days, mass production time needs 5-7 days for order less than 1000 pcs.


Q: 3. Do you have any MOQ limit?

A: Our MOQ is 10 pieces


Q: 4. How do you ship the goods and how long does it take arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.


Q: 5. Do you offer guarantee for the products?

A: Yes,because All of product is made by hands,we have the production department control and all tested strictly by QC.
