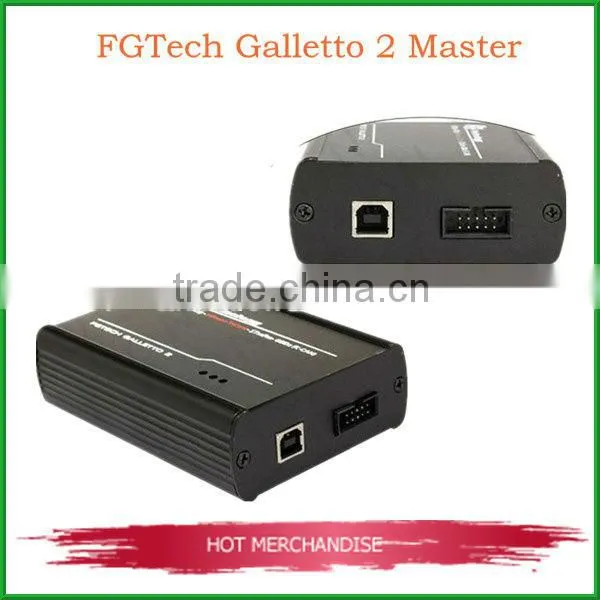

2013 NEW FGTECH GALLETTO 2 MASTER V53 - Lite version, fg tech v53 with usb key
FG tech 2
1.newest version
2.best service
3.one year warranty
nic support
New Version FGTECH Galletto 2 Master EOBD2 V53 new add VAG SIMOS PCR 2.1, add New JTAG BDM and so on. New version FGTech Galletto 2-Master V53 developed with high-speed USB2 technology is the fastest and most secure product on the market, it is easy to install and use by anyone.
Hardware version: V53
Software version: V2012
New Version V53 FGTECH Galletto 2-Master EOBD2
Note: Some customers have problem with FGTECH software running, we advice you better choose FGTECH Galletto V53 Plus DELL D630, because fgtech v53 can work well with Dell D630.
Attention:
1.Your computer need to change the time to 2013.1.1 firstly.
2.Computer configuration:Intel processors Core = 2000Hz,RAM = 2GB.
3.The computer can not have any of the software fgtech before.
4.Can not install anti-virus software.
Most importantly,ensure that the hard drive of your PC is NTFS format, it can not used by FAT32 format.If it is FAT32,pls format disk to NTFS.
Language: Italian, English, German, French, Spanish Portuguese, Czech, Turkish
Compared with FGTECH V50, FGTECH Galletto 2 Master V53 New Added Fcuntion:
NEW VAG SIMOS PCR2.1
NEW JTAG - BDM - MOTOROLA - FREESCALE - INFINEON
NEW JTAG RENESAS
Freescale MPC 5553/5554/5565/5566 NEXSUS PORT New IAW MJD 8F2
Mair 8GMF New Delphy DCM3.5xx DCM3.7xx TRW.
Motorola Freescale MPC 555/556/561/562/563/564/565
Motorola MC 68332 - MC YQQCU - MC 68377 Trionic 5/7/8 GM-OPEL-SAAB
Motorola MC 68376 Campi 01 Lamborghini - Lotus
Motorola MC 68336 MEMS D5 ROVER
Motorola ZC 439615 - ZC 439507 IAW FIAT - VAG
New Line OBD protocols VPM GM Hummer-Corvette-Munstang-Blazer-Cadilac
New Line OBD protocols Tx - Rx Subaru - Mitsubischi - Hitachi - Denso ecu
All EDC17 MED17 is good always modify with Boot Mode tricore.
FGTECH Galletto 2 Master Softwar display:
The interface works with this Operating System:
Windows 2000
Windows XP - 32 bit / 64 bit
Windows Vista 32 bit / 64 bit
Windows 7- 32 bit / 64 bit
Automatic Checksum
All old protocols included from Bosch MExx /
EDCxx/Marelli/Siemens/Delpy/Lucas/Denso
Boot Mode C167x / ST10,
Boot Mode Infineon Tricore With password Bosch , Siemens
Motorola MC68332 - MCYQQCU - MC68377 , MC68376 , MC68336, ZC439615 ,ZC439507
Motorola Freescale MPC 555/556/561/562/563/564/565
Freescale MPC 5553/5554/5565/5566
BDM Tricore.
5-30V Car / Industrial Vehicles,
L line / K line KWP, CAN
Can Bus V2.0 50Kb > 1000Kb
J1850 VPW PWM GM -FORD
Rx Tx RS232,
RS 485,
Automatic setup Pull up K-L line 250, 500, 1000 ohm,
Automatic setup termination Can bus 0, 60,120 ohm,
Master Version
Recovery Mode Completa
Funzione scan tool per eliminare i DTC
Function scan tool for erase the DTC
Controllo tensione di batteria auto in tempo reale
Check tension of battery car in real time
Packing:
* New version main interface
* ECU cable for TriCore boot
* Adapter for BDM to CMD with bdm cables
* BDM adapters (3 pcs )
* BDM connectors ( 6 pcs )
* Power cable ( 2 pcs )
* OBD2 cable
* USB cable (1.5meter)
* CD (2012 version SW -MASTER, documents pdf, pictures, etc.)
* Dongle
