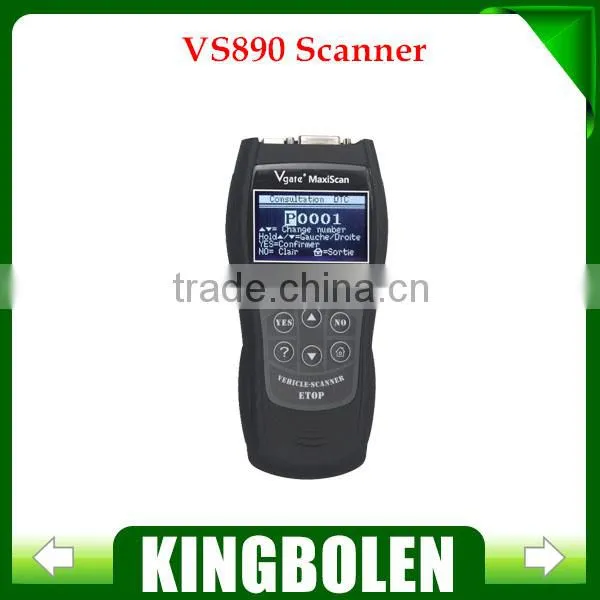

New Arrival Universal Diagnostic Scanner Multi-language Auto Scantool Vgate MaxiScan VS890 Free Shipping

Specifications

Vgate Scantool Maxiscan VS890
supports up to 13 languages



Vgate MaxiScanVS-890

Multi-language user interface, supports up to 13 languages



Application layer fully complies with ISO 15031 and is compliant with SAE J1979.



Fully functional Mode$01~Mode$09 operation.



Supports  a large number of vehicles made by 70 manufacturers.



DTC includes  generic (P0, P2, P3, B0, U0 and C0) & manufacturer specific (P1, P3, B1,B2 ,U1 and C1,C2,) codes.



Detailed DTC library: DTCs are explained in easy to understand words rather than obscure jargons. Online help information is available for 80% of all the DTCs,which shows the probable  cause of the code.

Supported Protocol:



 SAE J1850 PWM

 SAE J1850 VPW

 ISO9141

 KWP FAST INIT

 KWP 5BAUD INIT

 CAN 11BIT 500K

 CAN 29BIT 500K

 CAN 11BIT 250K

 CAN 29BIT 250K

 CAN_USER1 11B 125K

 CAN_USER1 29B 125K

 CAN_USER2 11B 50K

 CAN_USER2 29B 50K



  *** Full CAN BUS support for new cars

  *** 11 Bit and 29Bit CAN

  *** Capable of communicating with multi-ECU System



1.Color: Scarlet ,dark blue, Pearl Blue,Green Blue,Metal Black,Orange

2.LCD:3 inch black mask LCD, wide visible area, high contrast .The contents is readable even in strong sun shine.

3.ABS+PC Engineer Plastic Housing (passed 6-meter free fall test.) Patent No.200830010963.5.

4Harmless fade-resistant paint.

5.Rubber oil sprayed housing; slide, dirty, and vibration proof.

6.Passed EMI/EMC test.

7.High quality PET 6-key film keypad.(3M harmless glue)

8.CE,FCC,RoHs Certified

9.Support manually input DTC Look-up

10.Read DTCs

11.Clear DTCs

12.Data stream

13.Freeze Frame

14.I/M Readiness

15.O2 Monitor Test

16.On-Board Mon Test

17.Component Test

18.Vehicle Info.

19.Modules Present

20.Unit of Measure

21.State Emission

22.Read All DTCs

23.Read Stored DTCs

24.Read Pending DTCs

25.Detailed help information

26.Capable of showing probable cause of a DTCs.

27.Up to 161 data items,each of them is with online help information.

28.Reset engine MIL

29.This operation will  erase all DTCs , freeze frame Data , oxygen sensor data, and reset  IM Monitors and MIL.



Spanish, Portuguese, Korean, Japanese, Italian,Hebrew, German, French, Finnish, English, Dutch,Danish and Chinese.
