Autel MaxiService VAG505 For AU-DI For VW For SEAT For SKODA Scanner Tool With Powerful Function OBD2 Diagnostic Tool

Autel MaxiService VAG505 For AU-DI For VW For SEAT For SKODA Scanner Tool With Powerful Function OBD2 Diagnostic Tool thumbnail-1
Autel MaxiService VAG505 For AU-DI For VW For SEAT For SKODA Scanner Tool With Powerful Function OBD2 Diagnostic Tool thumbnail-2
Autel MaxiService VAG505 For AU-DI For VW For SEAT For SKODA Scanner Tool With Powerful Function OBD2 Diagnostic Tool thumbnail-3
Autel MaxiService VAG505 For AU-DI For VW For SEAT For SKODA Scanner Tool With Powerful Function OBD2 Diagnostic Tool thumbnail-4
Autel MaxiService VAG505 For AU-DI For VW For SEAT For SKODA Scanner Tool With Powerful Function OBD2 Diagnostic Tool thumbnail-5
Autel MaxiService VAG505 For AU-DI For VW For SEAT For SKODA Scanner Tool With Powerful Function OBD2 Diagnostic Tool photo-1
Autel MaxiService VAG505 For AU-DI For VW For SEAT For SKODA Scanner Tool With Powerful Function OBD2 Diagnostic Tool photo-2
Autel MaxiService VAG505 For AU-DI For VW For SEAT For SKODA Scanner Tool With Powerful Function OBD2 Diagnostic Tool photo-3
Autel MaxiService VAG505 For AU-DI For VW For SEAT For SKODA Scanner Tool With Powerful Function OBD2 Diagnostic Tool photo-4
Autel MaxiService VAG505 For AU-DI For VW For SEAT For SKODA Scanner Tool With Powerful Function OBD2 Diagnostic Tool photo-5
US$ 1 - 2 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Code Reader
Voltage:
12V DC, 12V
Power:
9W, 9W
Contact Supplier Request Quote Chat Now
Shenzhen Kingbolen Electrics Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Guangdong China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Code Reader
Voltage 12V DC, 12V
Power 9W, 9W
Certification CE,CE,FCC,RoHS
Applicable Models universal cars
Place of Origin Guangdong, China
Brand Name Autel
Model Number Autel Maxiservice Vag505
Warranty 1 Years

Autel MaxiService VAG505 For AU-DI For VW For SEAT For SKODA Scanner Tool with Powerful Function OBD2 Diagnostic Tool

Autel MaxiService VAG505 For AU-DI For VW For SEAT For SKODA Scanner Tool with Powerful Function OBD2 Diagnostic Tool

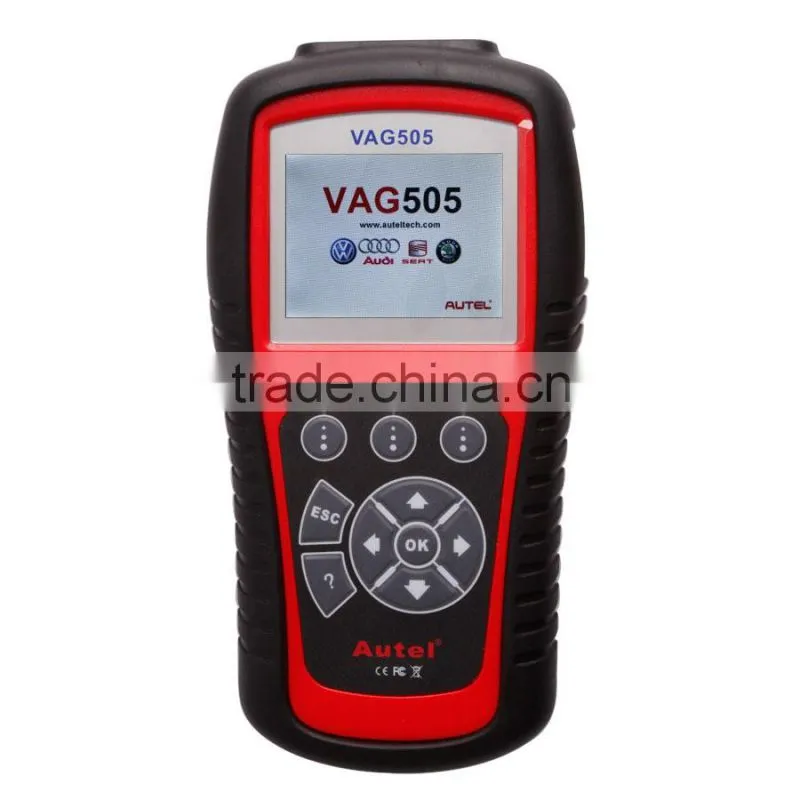

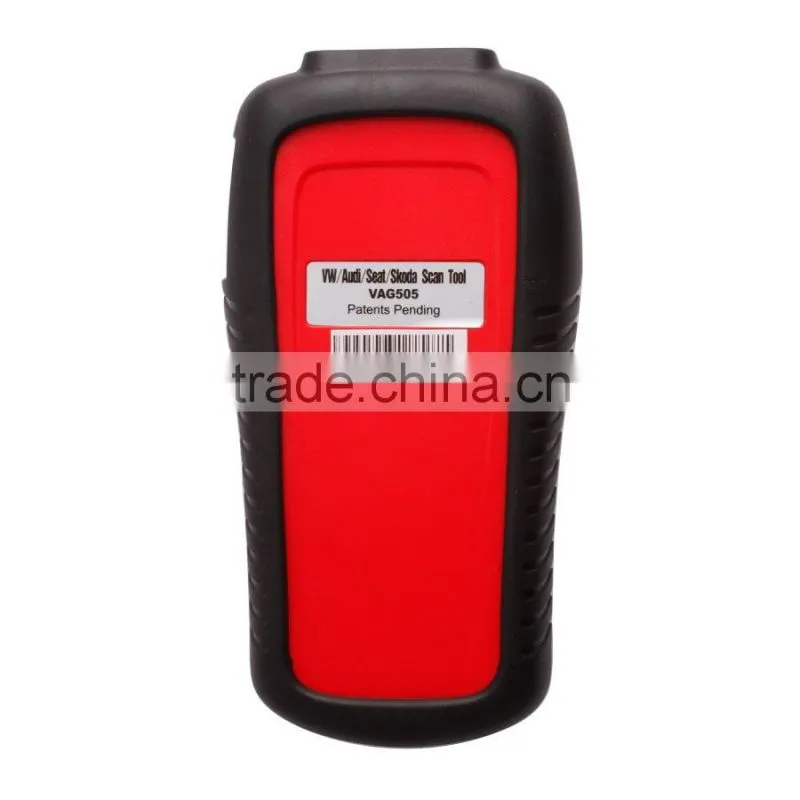

Autel MaxiService VAG505 for VW/AD/SKODA/SEAT Scan Tool

Autel MaxiService VAG505 Supported Vehicle: VW, AD, Bently, Bugatti, Skoda, Seat

Autel MaxiService VAG505 Language: English

Autel MaxiService VAG505 Feature & Functions:

1. Works with Volkswagen, Ad, Seat and Skoda vehicles sold worldwide since 1996
2. Reads and erases Diagnostic Trouble Codes (DTCs) of almost all the systems
3. Resets Oil Service Light, service mileage and service intervals
4. Turns off MILs of engine, airbag, ABS, A/T and most other systems
5. Supports ALL 10 test modes of the latest J1979 OBD II test specs, including Read Codes, Erase Codes, Live Data, Freeze Frame, I/M Readiness, O2 Mon. Test, On-Board Mon. Test, Component Test and Vehicle Information
6. Replaces and recalibrates brake pads safely
7. TF memory card for data backup and software update.
8. Troubleshooter codes tips guide technicians to the root cause of trouble code faster, saving diagnosis and repair time
9. Data graphing
10. One year free online software updates
11. Prints data via PC

Autel MaxiService VAG505 Specification:

Display: TFT color display (320 x 240 dpi)
Operating Temperature: 0 to 60°C (32 to 140 °F)
Storage Temperature: -20 to 70°C (-4 to 158 °F)
External Power: 12.0 to 18.0 V power provided via vehicle battery
LengthWidthHeight: 199 mm (7.83”)104.5 mm (4.11”)37.5 mm (1.48”)
Main unit Weight: 0.28kg(without wire),0.484kg(with wire)

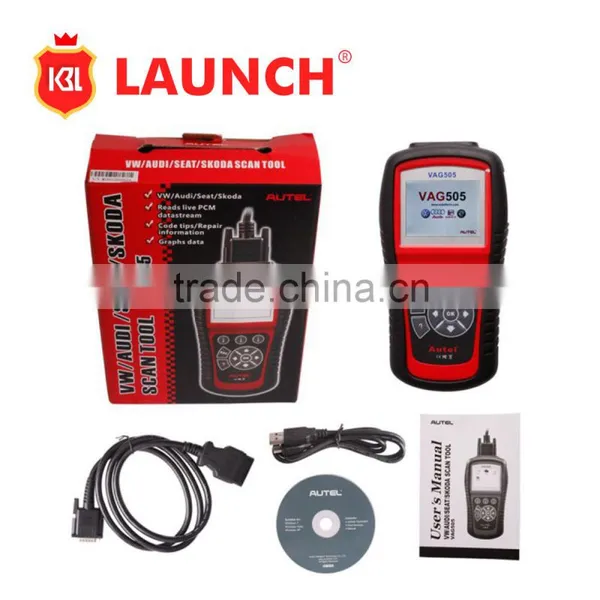

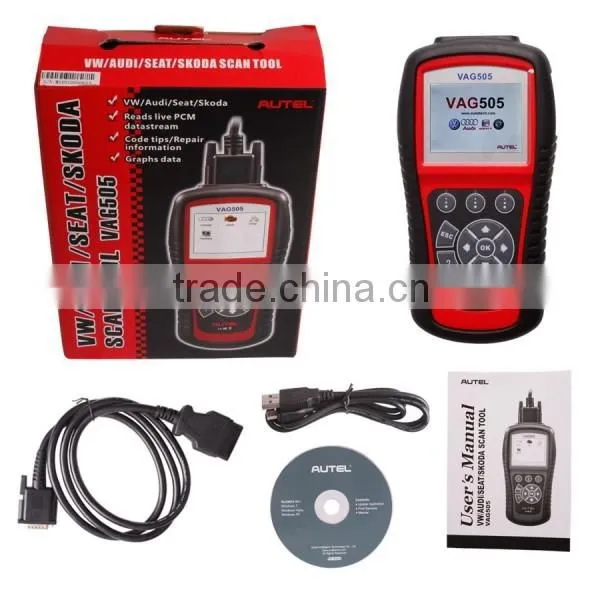

Autel MaxiService VAG505 Package List:

1pc X VAG505 Main Unit
1pc x Micro SD Card
1pc x OBDII Cable
1pc x USB Cable
1pc x User's Manual
1pc x CD
1pc x Protective Nylon Bag

Autel MaxiService VAG505 For AU-DI For VW For SEAT For SKODA Scanner Tool with Powerful Function OBD2 Diagnostic Tool

Autel MaxiService VAG505 For AU-DI For VW For SEAT For SKODA Scanner Tool with Powerful Function OBD2 Diagnostic Tool

Autel MaxiService VAG505 For AU-DI For VW For SEAT For SKODA Scanner Tool with Powerful Function OBD2 Diagnostic Tool

Autel MaxiService VAG505 For AU-DI For VW For SEAT For SKODA Scanner Tool with Powerful Function OBD2 Diagnostic Tool

Autel MaxiService VAG505 For AU-DI For VW For SEAT For SKODA Scanner Tool with Powerful Function OBD2 Diagnostic Tool

Autel MaxiService VAG505 For AU-DI For VW For SEAT For SKODA Scanner Tool with Powerful Function OBD2 Diagnostic Tool

Autel MaxiService VAG505 For AU-DI For VW For SEAT For SKODA Scanner Tool with Powerful Function OBD2 Diagnostic Tool
