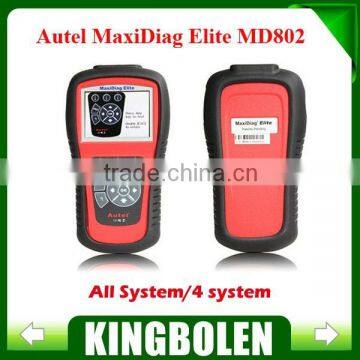

New Original Code Reader Autel MD802 All System/4 System Autel Code Scanner Maxidiag Elite MD802 One Year Warranty

Specifications

2013 Top-Rated MaxiDiag Autel Elite MD802 all system+DS model

1.Autel maxidiag elite md802
2.MD701+MD702+MD703+MD704
3.Engine+Transmission+ABS+airbag
4.many vehicles coverage
5.Original

What is DS model?

Autel Maxidiag Elite MD802 for all System+data stream function.

MaxiDiag Elite MD802 Features

One tool can do it all-reads and clears trouble codes on either the basic 4 systems (engine, transmission, ABS and airbag) or all the systems

Turns off warning lights for all major Asian vehicle

Reads live datastream

Supports all 10 test modes of the latest J1979 OBD II test specs,including Read Codes, Erase Codes, Live Data, Freeze Frame,I/M Readiness, O2 Mon.Test, On-Board Mon.Test, Component Test and Vehicle Information

Enhanced OBD II Mode 6

OBD II code tips guide technicians to the root cause of trouble code faster

Data graphing

One year free software upgrade

Prints data via PC

Specifications

Display                        TFT color display (320 x 240 dpi)

Operating Temperature        0 to 60°C (32 to 140 °F)

Storage Temperature            -20 to 70°C (-4 to 158°F)

External Power                12.0 to 18.0 V power provided via vehicle battery or adapter

LengthWidthHeight            212 mm (8.35”)110.5 mm (4.35”)37.5 mm (1.48”)

Weight                        0.28kg(without wire) 0.484kg(with wire)

MaxiDiag Elite MD802 Accessories

1xCarry case

1xSD Card

1xCD

1xUSB Cable

1xOBDII Cable

1xUser's Manual
