Home > Products > OTHER BREAK STEM RIVETS > HIGH QUALITY FACTORY OPEN END ALUMINUM GROOVED BLIND RIVETS FOR WOOD

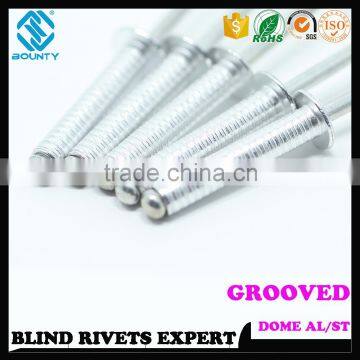

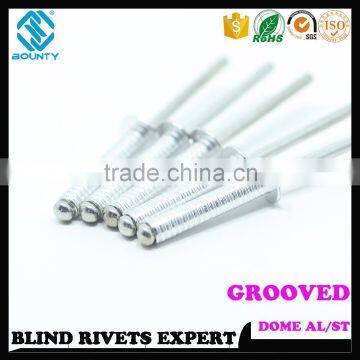

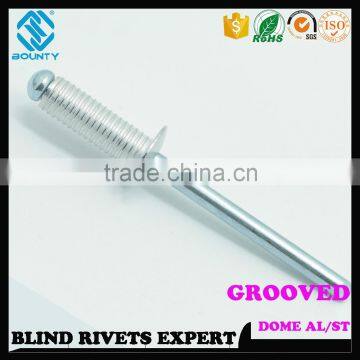

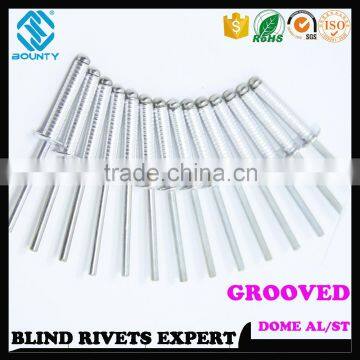

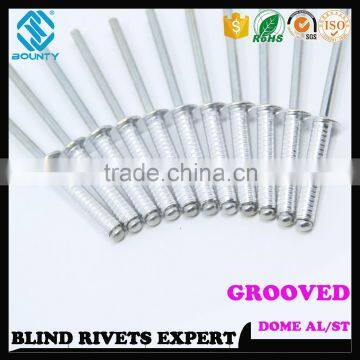

HIGH QUALITY FACTORY OPEN END ALUMINUM GROOVED BLIND RIVETS FOR WOOD
- 400 Piece / Pieces per Month
- Shanghai
- T/T L/C D/P D/A Credit Card
Product Details
| Place of Origin: | Jiangsu, China | Brand Name: | BOUNTY | Model Number: | BOUNTY GROOVED RIVETS |
| Standard: | Other, ISO/IFI/DIN/ASTM |
Product Description
HIGH QUALITY FACTORY OPEN END ALUMINUM GROOVED BLIND RIVETS FOR WOOD
WUXI RUNTING:BLIND RIVET EXPERT
HIGH QUALITY FACTORY OPEN END ALUMINUM GROOVED BLIND RIVETS FOR WOOD Grooved Rivets are designed to be installed within a hole made of a fibered material such as wood and some low-medium density plastics. when set properly, the annular rings of the grooved rivet will bite into the wood or plastic and will radially expand within the hole. keep in mind, this rivet is designed to expand within a hole and not at the rear side like most blind rivets. only one fibered material is necessary as long as it is the final substrate. other materials can be fastened to wood products as long as it is between the head and the wood. In this case be sure there is enough material thickness of the fiber material so the rivet can seat properly.
| HIGH QUALITY FACTORY OPEN END ALUMINUM GROOVED BLIND RIVETS FOR WOOD MORE INFORMATION | |
| ITEM | HIGH QUALITY FACTORY OPEN END ALUMINUM GROOVED BLIND RIVETS FOR WOOD |
| MATERIAL | (1)RIVET BODY :ALUMINUM |
| (2)MANDREL:STEEL | |
| COLOR | (1)RIVET BODY : POLISHED |
| (2)MANDREL: CrIII ZINC PALTED | |
| SIZE | DIA:2.4-6.4MM,3/32"-1/4" LENGTH:4-40MM 5/32"-1 5/8" |
| MANUFACTYRE | YES |
| OEM/ODM | YES |
SAMPLE | (1)3-5DAYS-IF YOU WANT TO CUSTOMIZE YOUR FINISHING |
| (2)1DAY-FOR OUR EXISTING SAMPLES FOR REFERENCE | |
| PACKING | PLOYBAG,COLOR BOX,BLISTER,SMALL PACKAGE,BULK |
| CAPACITY | 324000MPCS/400 TONS per month |
| PAYMENT | (1) L/C,T/T,D/P,D/A,PAYPAL,WESTERN UNION,MONEY GRAM |
| (2) WE ALSO CAN PROVIDE A MONTHLY STATEMENT PAYMENT SERVICES | |
| OTHER RIVETS | PEEL,CSK,MULTIGRIP,STRUCTURE,TRI-FOLD,GROOVED,FLANGE, |
| OTHER MATERIAL | STEEL,STAINLESS STEEL,COPPER,MONEL |
| HIGH QUALITY FACTORY OPEN END ALUMINUM GROOVED BLIND RIVETS FOR WOOD AVAILABLE SIZE AND MATERIAL | |||||||||
| MATERIAL | DIAMETER(MM) | ||||||||
| BODY | MANDREL | 2.4MM | 3.0MM | 3.2MM | 4.0MM | 4.8MM | 5.0MM | 6.0MM | 6.4MM |
| 3/32" | 1/8" | 5/32" | 3/16" | 1/4" | |||||
| ALUMINUM ALLOY | STEEL | √ | √ | √ | √ | √ | √ | √ | √ |
| ALUMINUM ALLOY | ALUMINUM ALLOY | √ | √ | √ | √ | √ | √ | ||
| ALUMINUM ALLOY | STAINLESS STEEL | √ | √ | √ | √ | √ | √ | √ | √ |
| STEEL | STEEL | √ | √ | √ | √ | √ | √ | √ | √ |
| STAINLESS STEEL | STEEL | √ | √ | √ | √ | √ | √ | √ | √ |
| STAINLESS STEEL | STAINLESS STEEL | √ | √ | √ | √ | √ | √ | √ | √ |
| COPPER | STEEL | √ | √ | √ | √ | √ | |||
| COPPER | STAINLESS STEEL | √ | √ | √ | √ | √ | |||
| COPPER | BRASS | √ | √ | √ | √ | ||||
| MONEL | STEEL | √ | √ | √ | |||||
| MONEL | STAINLESS STEEL | √ | √ | √ | |||||
| HIGH QUALITY FACTORY OPEN END ALUMINUM GROOVED BLIND RIVETS FOR WOOD AVAILABLE HEAD TYPE | ||||
| MATERIAL | HEAD TYPE | |||
| RIVETS BODY | MANDREL | DOME | CSK | FALNGE |
| ALUMINUM ALLOY | STEEL | √ | √ | √ |
| ALUMINUM ALLOY | ALUMINUM ALLOY | √ | √ | √ |
| ALUMINUM ALLOY | STAINLESS STEEL | √ | √ | √ |
| STEEL | STEEL | √ | √ | √ |
| STAINLESS STEEL | STEEL | √ | √ | √ |
| STAINLESS STEEL | STAINLESS STEEL | √ | √ | √ |
| COPPER | STEEL | √ | √ | |
| COPPER | STAINLESS STEEL | √ | √ | |
| COPPER | BRASS | √ | √ | |
| MONEL | STEEL | √ | √ | |
| MONEL | STAINLESS STEEL | √ | √ | |
| HIGH QUALITY FACTORY OPEN END ALUMINUM GROOVED BLIND RIVETS FOR WOOD SURFACE FINISHING | |
| Material | Finishing |
| Aluminum alloy | polished / Power coated / Oxidation / Dacromet |
| Steel | power coated / Oxidation / zinc-nickel / Galvanized / phosphorization |
| Stainless steel | power coated |
| Copper | Polished |
| Monel | Polished |
| HIGH QUALITY FACTORY OPEN END ALUMINUM GROOVED BLIND RIVETS FOR WOOD AVAILIABLE STANDARD | |||
| CHINA | USA | ISO | EUROPEAN |
GB/T 12618 GB/T 12619 | IFI-114 IFI-117 IFI-126 IFI-134 IFI-505 IFI-520 IFI-551 | ISO-15977 ISO-15978 ISO-15979 ISO-15980 ISO-15981 ISO-15983 ISO-15984 ISO-16582 ISO-16583 | DIN 7337 UNI 9200A NF E 25-714 NF E 25-716 NF E 25-718 NF E 25-720 NF E 25-722 NF E 25-724 NF E 25-727 |
| Q1. How can I get a sample to confirm the quality? |
| A:1. Please give the exactly details,size,requirment 2. You can send us a sample, we can according to your sample give you a counter sample. |
| Q2. I don't know rivets information, how can i order this from you. |
A: It's the best way if you can send us a sample, so we can according to your sample give you a counter sample for check the quality, also we will quote a price for you check the cost. After confirm all of this. You can contact our sales for an order |
| Q3. I am a small wholesaler, do you accept small order? |
| A: It's no problem if you are a small wholesaler, we would like to grow up with you together. |
| Q4. We want to be your agent of our area. How to apply for this? |
| A: Please send your idea and your profile to info ( @ ) |
| Q5. Do you have some special policies for Brand company? |
A:Yes, we have some special support for the company who has own brand but also in our VIP customers list. Please send us your selling data of last year. So we can see how to support you for your products in your market. |
| Q6. Can you make Door to Door service? Because i don't know how to do customs clearance. |
A:Yes. We can make Door to Door service to help you save much time of shipping. Also we have big discount with shipping company because we have do much of this every day. So it will save your time also money. |
Q7. |
| ANSWER |
