Truck and commercial buildings often require a turntable due to limited space and requirement of efficiency. Vehicle turntables can add ease and reduce manpower in warehouses, shopping centers, departments stores, super markets and car parks.
All require a revolving platform in their loading area. These revolving platform provide safer work conditions for employees as well as improving turnaround times for loading and unloading merchandise therefore decreasing company overheads.
This type of platform enables a U-turn in tight spaces for trucks and equipment for road construction and rail.
Advantages:
-Mobility of the platform.
-U-turn closest the site.
-Avoid steps back over long distances.
-Manoeuvring secured.
Characteristics of this model:
Rotation type:360°.
Rotation time:30 seconds.
Vehicle lenght:11 meters.
Vehicle width:2 meters.
Power source:3 phase 380V AC ~480V AC
This model is equipped with an anti-collision system to avoid any clash between the platform and a vehicle, a man or any other object.
| Diameter | 9-meter | 12-meter | 15-meter | 18-meter | 24-meter |
| Height | 500mm | 500mm | 550mm | 550mm | 550mm |
| Rotating Speed | 0.1~0.5RPM | 0.1~0.5RPM | 0.1~0.5RPM | 0.1~0.25RPM | 0.1~0.25RPM |
| Loading | 30 tons | 40 tons | 60 tons | 80 tons | 100 tons |
| Motor Power | 4.0KW | 11KW | 18.5KW | 15KW | 22KW |
| Power Required | 3 phase 380V AC ~480V AC | ||||
| Drive Position | Weizhong Patent Pin-Gear Drive System | ||||
| Steel Coating | Rust resistant paint and primer / Hot-dipped galvanized | ||||
| Top Surface | 6mm~8mm thick diamond tread steel plate |
||||

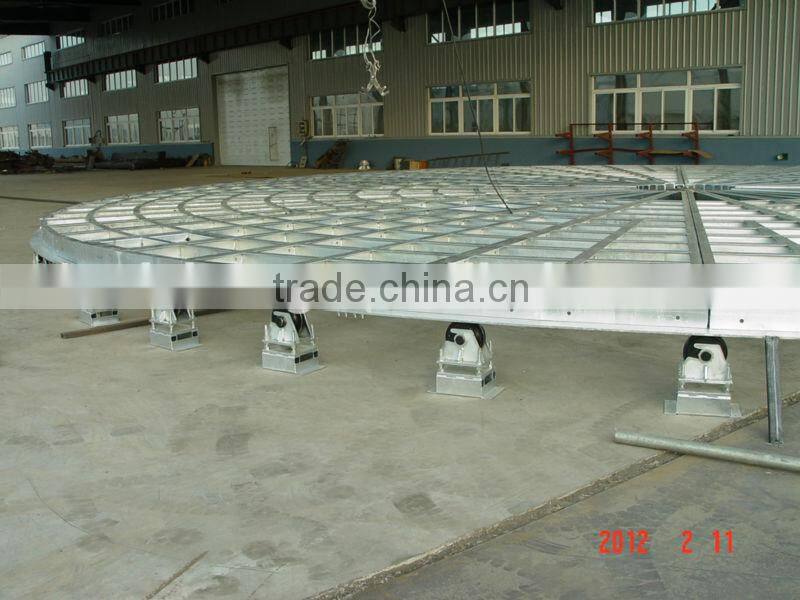

Product pictures:
Torronto Trumps Tower
80 Feet Truck Turntable
Standard export packing
21 Days after confirm order
Car turntable, display turntable, revolving turntable,truck turntable, garage turntable, driveway turntable, revolving platform, revolving restaurant, railway turntable, industrial Turntables, positioning turntable
Weizhong Revolving Machinery Co., Ltd. has been operating since 1991 and is the world's leading manufacturer of revolving restaurants, car turntables, truck turntables and industrial turntables. We can supply turntables of any size and load capability, in diameter from 3-meter to 60-meter and capable of accommodating loads weighting 500KG to 1,000 metric tons.
Weizhong turntables apply our own Patent Pin-Gear Drive system. It's a technically superior drive system, without the problems that are typically associated with friction drive systems. The advantages of Pin-Gear Drive are smooth revolving, reliable operation, long life with minimal wear and tear.
Since 2000, Weizhong has devoted to develope an oversea market. Up until 2011, our turntables have been exported to North America, South America, Europe, Asia, Africa, Australia and Middle East about more than 30 counties throughout the world.
In addition, Weizhong achieved ISO9001 quality control system in 1999 and now has subsequently achieved the ISO9001-2008 certificate. By choosing Weizhong turntables you can be assured of its quality, honesty and reliability.
