Product Details
| Place of Origin: | Liaoning, China | Brand Name: | WEIZHONG | Model Number: | OEM |
Product Description
2015 Wholesale popular swivel plate bearing turntable
A driveway turntable or garage turntable is a rotating platform designed for use by a car; They can be motorized or manually rotated and are usually installed in a driveway or in a garage floor. They rotate a motor vehicle to facilitate its easier or safer egress. Sometimes a local zoning prohibition of vehicles backing onto busy roadways prompts the installation of car turntables.
Weizhong provides two type of turntables for driveway and garage. One is concrete top and another is aluminum top. They are both perfect for outdoor or indoor use. All metals are hot-dipped galvanized. It can be running at least 30-year.
Products Show

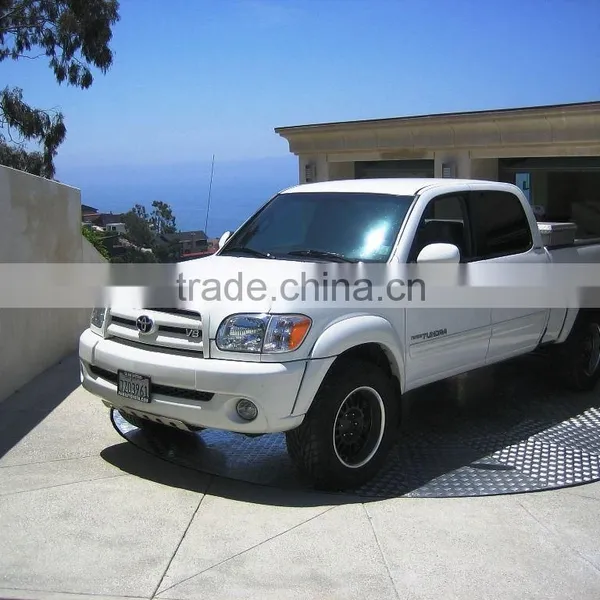

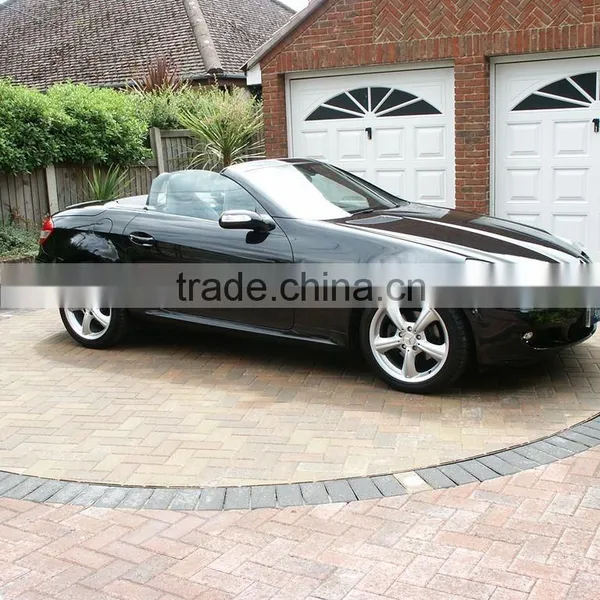

UK Driveway Turntable
Newport Beach Garage Turntable
Laguna Beach 4.5m Driveway Turntable

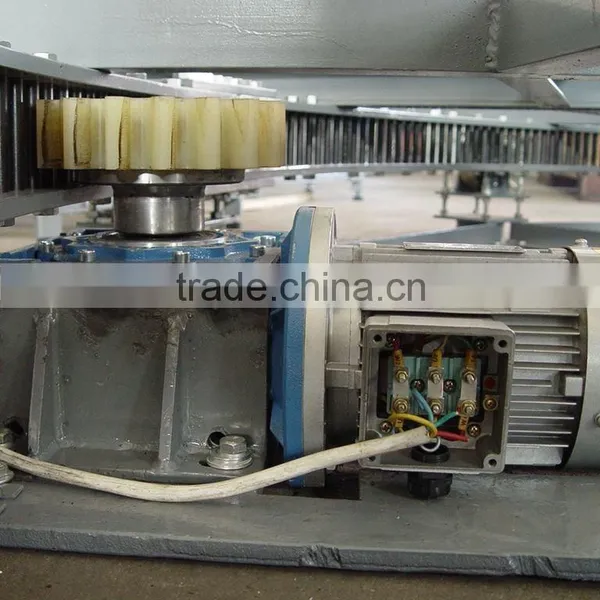

Weizhong Patent Pin-Gear Drive System
ZX Model Specification
Diameter | 4-meter | 4.5-meter | 5-meter | 5.5-meter | 6-meter |
Height (without top) | 305mm | 305mm | 305mm | 305mm | 305mm |
Speed | 0.2~1Rpm | 0.2~1Rpm | 0.2~1Rpm | 0.2~1Rpm | 0.2~1Rpm |
Loading | 2,500Kg | 3,000Kg | 3,000Kg | 3,500Kg | 4,000Kg |
Motor Power | 0.55KW German Nord Motor and Gearbox with CE Certificate | ||||
Power Required | 1 phase 110V AC ~ 240V AC | ||||
Drive Position | Weizhong Patent Pin-Gear Drive System | ||||
Control Box | On/Off buttons, CW/CCW selector, STOP button, Various speed control | ||||
Remote Control system | Sweden Tele-Radio Remote control system | ||||
Steel Coating | Rust resistant paint and primer / Hot-dipped galvanized | ||||
Top Surface | 18mm thick MDF board / 19mm thick Plywood / 4mm thick diamond steel plate / 6mm thick diamond aluminum alloy | ||||
Packing & Shipment
Standard export packing
21 Days after confirm order
Company Information
Weizhong Revolving Machinery Co., Ltd. has been operating since 1991 and is the world's leading manufacturer of revolving restaurants, car turntables, truck turntables and industrial turntables. We can supply turntables of any size and load capability, in diameter from 3-meter to 60-meter and capable of accommodating loads weighting 500KG to 1,000 metric tons.
Weizhong turntables apply our own Patent Pin-Gear Drive system. It's a technically superior drive system, without the problems that are typically associated with friction drive systems. The advantages of Pin-Gear Drive are smooth revolving, reliable operation, long life with minimal wear and tear.
Since 2000, Weizhong has devoted to develope an oversea market. Up until 2011, our turntables have been exported to North America, South America, Europe, Asia, Africa, Australia and Middle East about more than 30 counties throughout the world.
In addition, Weizhong achieved ISO9001 quality control system in 1999 and now has subsequently achieved the ISO9001-2008 certificate. By choosing Weizhong turntables you can be assured of its quality, honesty and reliability.
