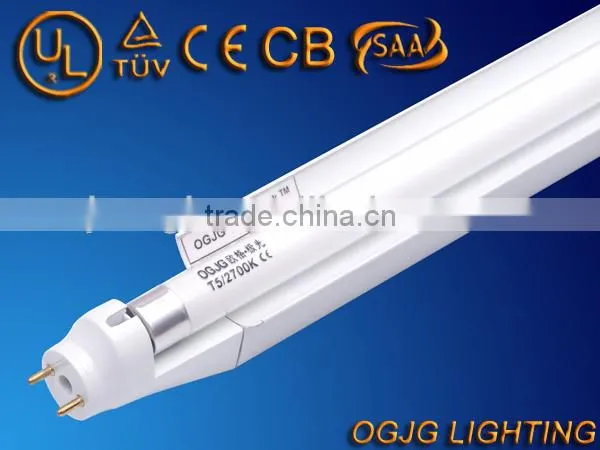

Aluminium Reflector T8 to T5 Fluorescent Light

Aluminium Reflector T8 to T5 Fluorescent Light thumbnail-1
Aluminium Reflector T8 to T5 Fluorescent Light photo-1
US$ 6.63 - 10 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OGJG
Model Number:
OG-T8/T5-28(UL-WV)
Contact Supplier Request Quote Chat Now
Jiangmen Ogjg Lighting And Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Jiangmen/Shenzhen/Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name OGJG
Model Number OG-T8/T5-28(UL-WV)
Base Material Other, pc
Cover Material Other, pc
Light Source Fluorescent
Color White

 aluminium reflector T8 to T5 fluorescent light





Material PC/Aluminium
Power 14W,21W,28W,35W
Voltage 110V-277V,110V,277V,220V-240V
Certificate UL TUV-CE SAA C-Tick
 Function  replace T8,T10,T12 fluorescent tube
 Payment Terms  T/T 30% deposit,70% before shipment
 Sample lead time  3-5 days
 Remarks  OEM and ODM order are warmly welcome





Feature:

Cost Savings
  1. Readuces elctric bill by 50-60% or more.
  2. Redeuces maintenance costs.
  3. Short payback period.

Enviromental

  1. Use existing fixtures, don’t need to dispose of old fixtures .
  2. Saves energy, reduces carbon output and CO2 emissions
  3. Contains less mercury than standard T12 lamps
General
  1. Instant start
  2. No flicker or hum
  3. Quick, clean installation
  4. Compatible with T12 and T8 fluorescent technology
  5. Flame resistant PC housing with Nano mirror reflector - 120° angle
  6. 90°angle Rotating, adjustable end caps
  7. Reduces heat load
  8.  UL listed
Light Output
  1. Color rendering index (CRI) up to 85 - T12 rated at 62
  2. Better quality light; easier on the eyes
  3. Retains maximum light output longer - only 10% light
  4. loss from T5 vs. 40% from T12 after 10,000 hours
  5. T5 lamps rated at 2,400 lumens
Warranty and Ratings
  1. Electronic ballasts have 3year warranty and are rated at 40,000 hours
  2. Lamps are rated at 20,000 hours



 Installation:

For retrofittingT8/T10/T12 flourescent light fittings with magnetic ballasts, please refer to below wiring diagram.
aluminium reflector T8 to T5 fluorescent light
For retrofittingT8/T10/T12 flourescent light fittings with electronic ballasts, please refer to below wiring diagram
aluminium reflector T8 to T5 fluorescent light



Specification:







Model No. Power Replace T8/T12 fixture Dim(mm) Remark

OG-T8/T5-35(D)

  T5 1X 35W  58W  1514X40X38 with Reflector

OG-T8/T5-28(D)

 T5 1X 28W

  36W/40W  1214X40X38

OG-T8/T5-21(D)

 T5 1X 21W

  30W  910X40X38
OG-T8/T5-14(D)  T51X 14W  18W/20W  606X40X38
OG-T8/T5-35(C) T5 1X35W 58W 1514X25X38 without reflector
OG-T8/T5-28(C) T5 1X28W 36W/40W 1214X25X38
OG-T8/T5-21(C) T5 1X21W 30W 910X25X38
OG-T8/T5-14(C) T5 1X14W 18W/20W 606X25X38















IMAGE:

aluminium reflector T8 to T5 fluorescent light



 aluminium reflector T8 to T5 fluorescent light

 aluminium reflector T8 to T5 fluorescent lightaluminium reflector T8 to T5 fluorescent lightaluminium reflector T8 to T5 fluorescent light



 aluminium reflector T8 to T5 fluorescent light





If there is any question about our product,pls do not hesitate to  contact us!



Hope the successful cooperation between us !!
