PACKING&SHIPING
PACKING WAY:
COLOR BOX
PLOYBAG
BULK
BLISTER
KITES
HANGING BAGS
COLOR BOX:
E-GRADE CARDBOARD BOX-250G/SQUARE METER

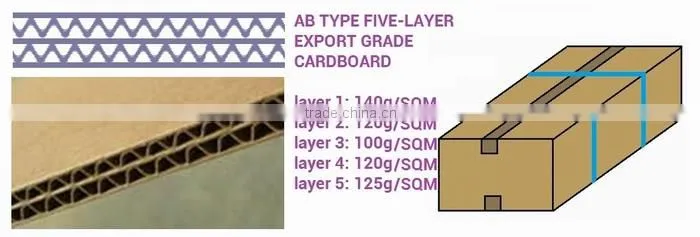

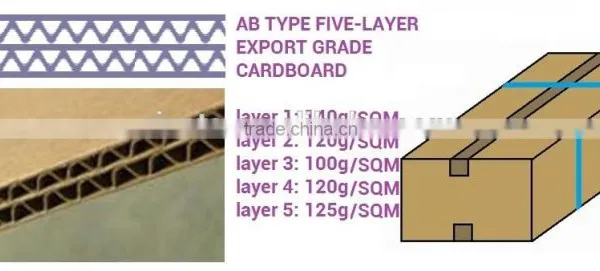

CARTON:
DROP TEST:
| PACKAGE WEIGHT | DROP HEIGHT |
| UP TO 20.9 POUNDS(9.5KGS) | 30INCHES(760MM) |
| 21.0-40.9 POUNDS(9.6-18.6KGS) | 24INCHES(610MM) |
| 41.0-60.9 POUNGS(18.7-27.7KGS) | 18INCHES(460MM) |
| 61.0-100 POUNDS(27.8-45.5KGS) | 12INCHES(310MM) |

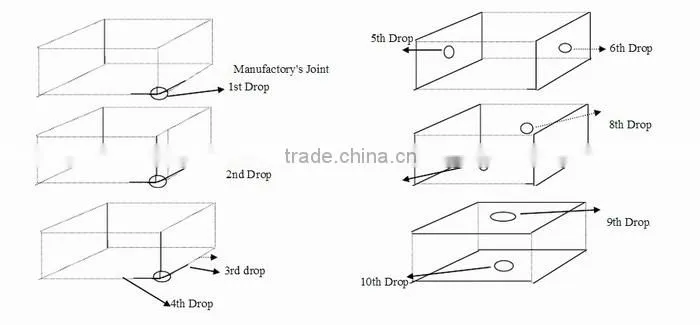

1:Test the corner of most fragile face which is near to the manufacturer's joint.
2:The shortest edge radiating from the corner tested.
3:The next longest edge from the corner tested.
4: The longest edge radiating from the corner tested.
5-6:Flat on one of the smallest face.
7-8:Flat on one of the medium faces.
9-10:Flat on one of the largest faces.

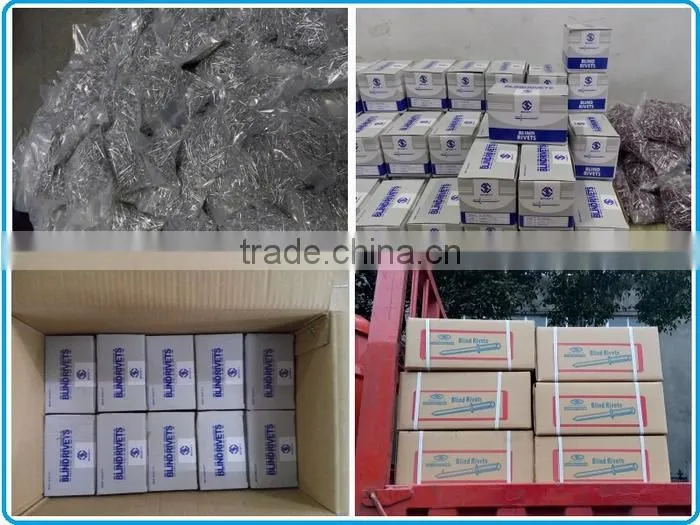

COLOR BOX PACKING:
1000/500/250 PCS PER PLOYBAG THAN INTO COLOR BOX,
20BOXES OR 10 BOXES PER CARTON,
NON-FUMIGATION PALLET WILL BE SUPPLIED IF NEEDED.
| SIZE | PCS/BOX | BOX SIZE | BOXES/CTN | CTN SIZE | G.W./N.W. PER CTN | |
| 1/8" X 1/4" | 3.2 X 6MM | 1000 | 114X84X80 | 20 | 45X29X18CM | 17.8/16.8KGS |
| 1/8" X 5/16" | 3.2 X 8MM | 1000 | 114X84X80 | 20 | 45X29X18CM | 18.9/17.9KGS |
| 1/8" X 3/8" | 3.2 X 10MM | 1000 | 114X84X90 | 20 | 45X29X20CM | 20.1/19.1KGS |
| 1/8" X 1/2" | 3.2 X 12MM | 1000 | 114X84X90 | 20 | 45X29X20CM | 22.5/21.5KGS |
| 1/8" X 9/16" | 3.2 X 14MM | 1000 | 114X84X110 | 20 | 45X29X24CM | 23.4/22.4KGS |
| 1/8" X 5/8" | 3.2 X 16MM | 1000 | 114X84X110 | 20 | 45X29X24CM | 24.4/23.4KGS |
| 1/8" X3/4" | 3.2 X 19MM | 1000 | 114X84X110 | 20 | 45X29X24CM | 26.7/25.7KGS |
| 1/8" X 7/8" | 3.2 X 22MM | 500 | 114X84X90 | 20 | 45X29X20CM | 14.9/13.9KGS |
| 1/8" X 1" | 3.2 X 25MM | 500 | 114X84X90 | 20 | 45X29X20CM | 15.6/14.6KGS |
| 5/32" X 1/4" | 4.0 X 6MM | 1000 | 114X84X80 | 20 | 45X29X18CM | 240./23.0KGS |
| 5/32" X 5/16" | 4.0 X 8MM | 1000 | 114X84X90 | 20 | 45X29X20CM | 27.2/26.2KGS |
| 5/32" X 3/8" | 4.0 X 10MM | 1000 |
114X84X110 | 20 | 45X29X24CM | 28.4/27.4KGS |
| 5/32" X 1/2" | 4.0 X 12MM | 1000 | 114X84X110 | 20 | 45X29X24CM | 31.3/30.3KGS |
| 5/32" X 9/16" | 4.0 X 14MM | 1000 | 114X84X130 | 20 | 45X29X28CM | 33.1/32.1KGS |
| 5/32" X 5/8" | 4.0 X 16MM | 500 | 114X84X80 | 20 | 45X29X18CM | 18.0/17.0KGS |
| 5/32" X 3/4" | 4.0 X 19MM | 500 | 114X84X90 | 20 | 45X29X20CM | 19.6/18.6KGS |
| 5/32" X 7/8" | 4.0 X 22MM | 500 | 114X84X110 | 20 | 45X29X24CM | 21.2/20.2KGS |
| 5/32" X 1" | 4.0 X 25MM | 500 | 114X84X110 | 20 | 45X29X24CM | 22.2/21.2KGS |
| 3/16" X 1/4" | 4.8 X 6MM | 500 |
114X84X80 | 20 | 45X29X18CM | 20.2/19.2KGS |
| 3/16" X 5/16" | 4.8 X 8MM | 500 | 114X84X80 | 20 | 45X29X18CM | 22.0/21.0KGS |
| 3/16" X 3/8" | 4.8 X 10MM | 500 | 114X84X90 | 20 | 45X29X20CM | 23.0/22.0KGS |
| 3/16" X 1/2" | 4.8 X 12MM | 500 | 114X84X90 | 20 | 45X29X20CM | 25.3/24.3KGS |
| 3/16" X 9/16" | 4.8 X 14MM | 500 | 114X84X90 | 20 | 45X29X20CM | 26.6/25.6KGS |
| 3/16" X 5/8" | 4.8 X 16MM | 500 | 114X84X90 | 20 | 45X29X20CM | 27.7/26.7KGS |
| 3/16" X 3/4" | 4.8 X 19MM | 500 | 114X84X110 | 20 | 45X29X24CM | 31.1/30.1KGS |
| 3/16" X 7/8" | 4.8 X 22MM | 500 | 114X84X130 | 20 | 45X29X28CM | 33.0/32.0KGS |
| 3/16" X 1" | 4.8 X 25MM | 250 | 114X84X80 | 20 | 45X29X18CM | 17.7/16.7KGS |

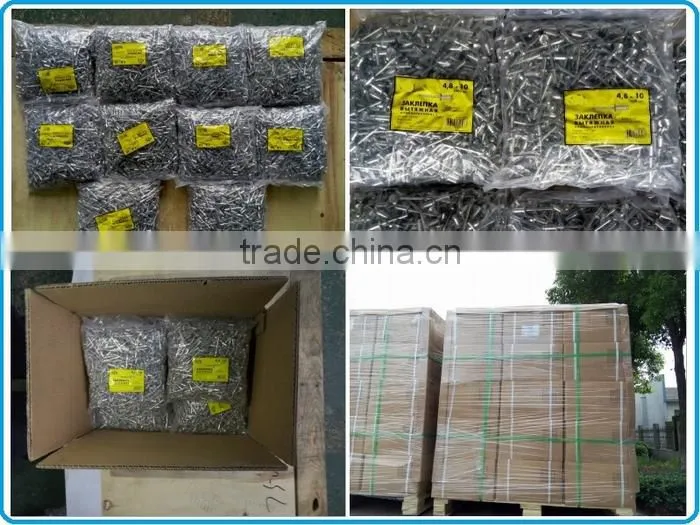

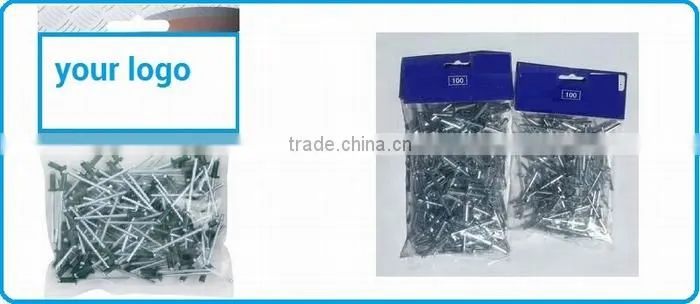

PLOYBAG PACKING:
1000PCS OR 500PCS PER PLOYBAG WITH LABLE.
20 BAGS PUT INTO CARTON
NON-FUMIGATION PALLET WILL BE SUPPLIED IF NEEDED.

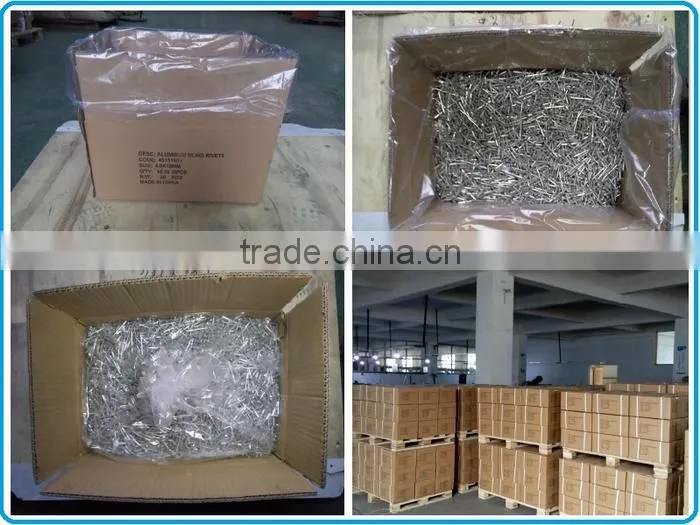

BULK PACKING:
15KGS-20KGS PER CARTON,THAN PALLETS.

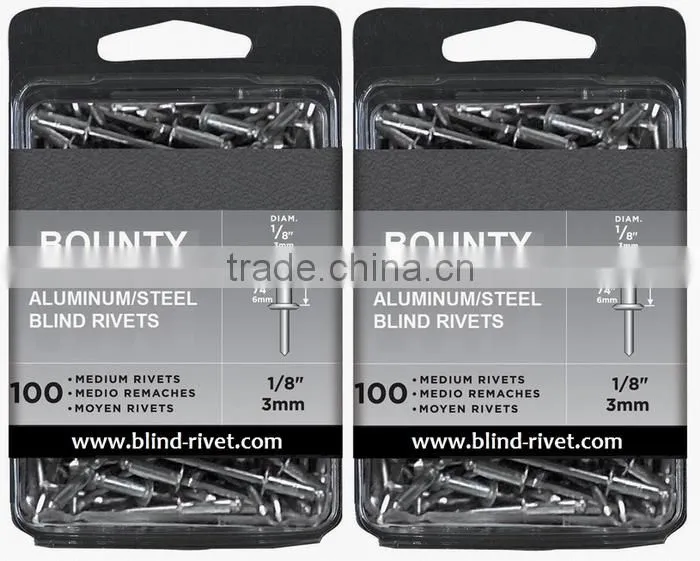

BLISTER:
SEND US YOUR DESIGN.
HANGING BAG:

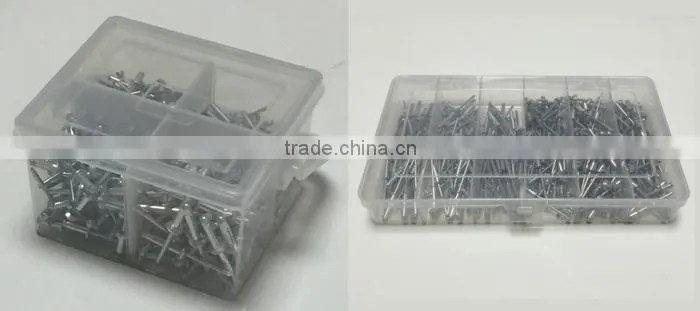

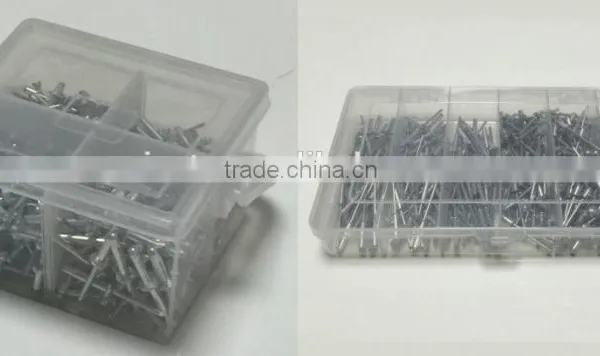

KITS:
SHIPPING WAY:
BY SEA
BY AIR
BY CARRIER
FOB/CNF/DOOR TO DOOR ARE WORKABLE FOR US.
Also we have big discount with shipping company because we have do much of this every day. So it will save your time also money.
