Outdoor Lighting Ideas IP65 Waterproof Linear Led Light

FOB Price

US$ 7.94 - 13.02 / Piece

300 Pieces(Min. Order)

Port jiangmen guangzhou shenzhen
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

LED Light Source	SMD2835	Shade Type	Other, PC
Style	Contemporary	Input Voltage(V)	100-240
Lamp Power(W)	24	Lamp Luminous Flux(lm)	2280-2640
Lamp Luminous Efficiency(lm/w)	100	Color Temperature(CCT)	Warm White
Working Temperature(℃)	-20, 40	Working Lifetime(Hour)	50000
Lamp Body Material	Aluminum Alloy	Certification	CE, SAA, UL
Place of Origin	Guangdong, China	Brand Name	OGJG LIGHTING
Model Number	OG-LED24-FPC

Product Description

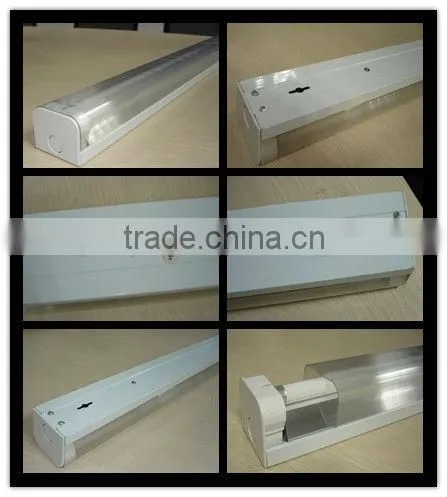

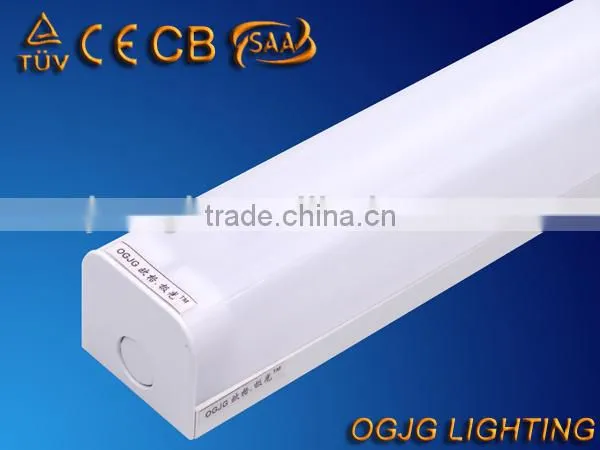

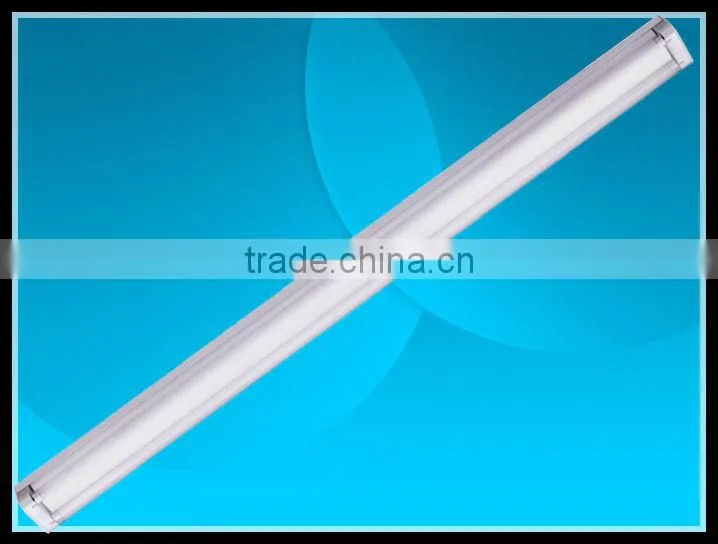

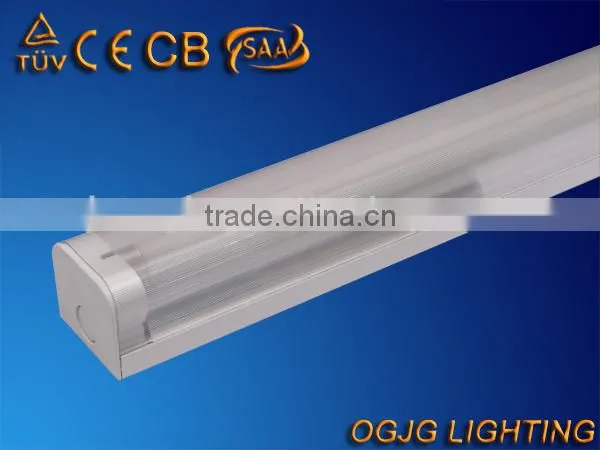

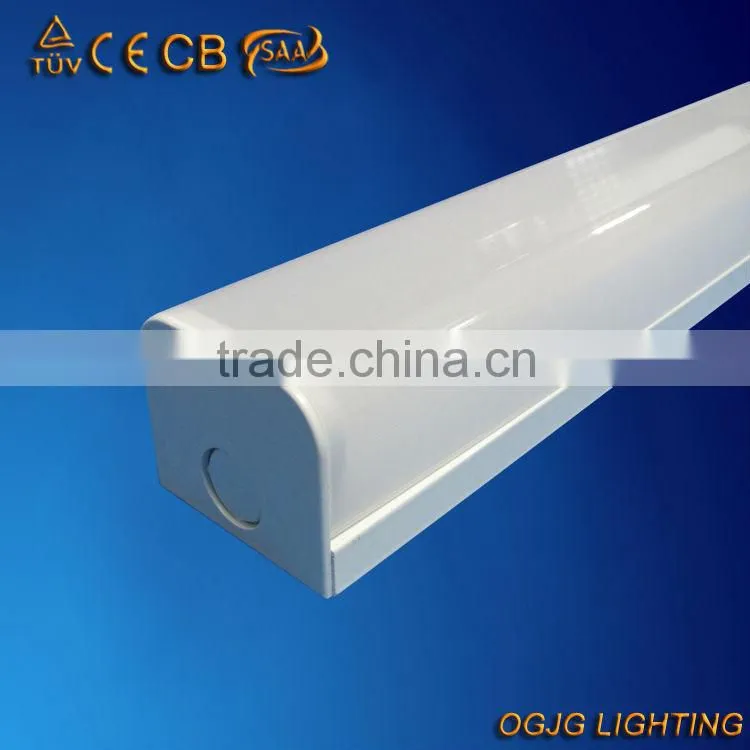

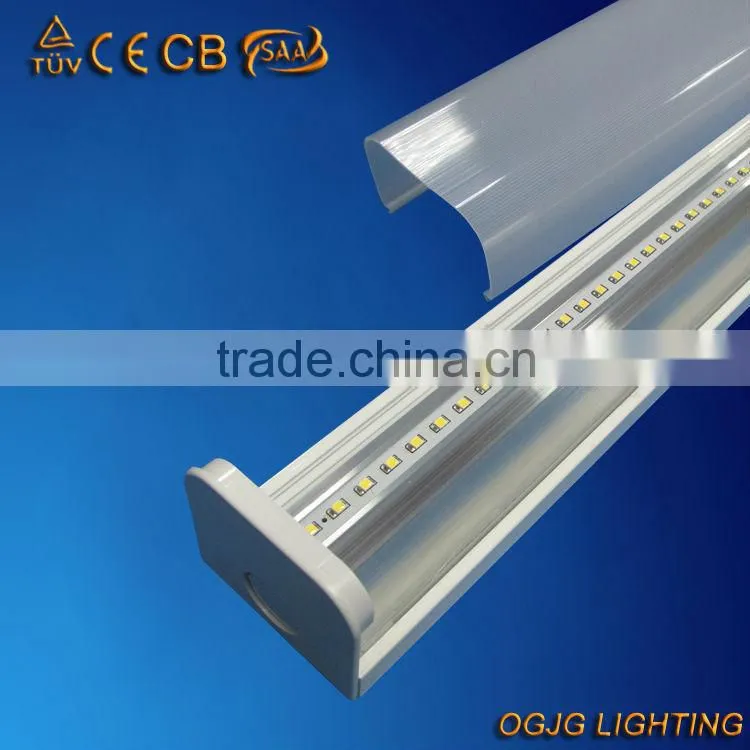

Outdoor lighting ideas IP65 waterproof linear led light

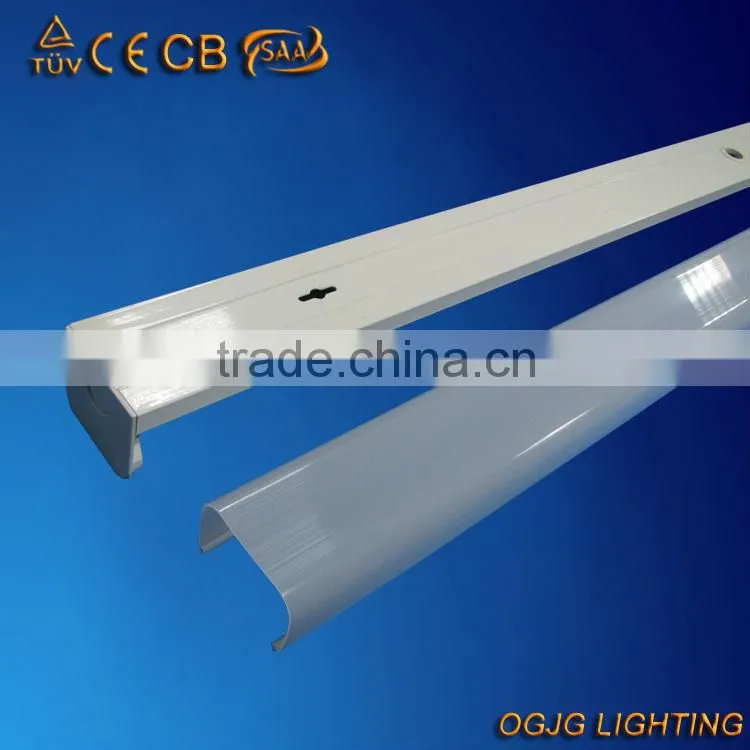

1.Material:

A.High quality aluminium alloy fixture body with powder coating treatment,1.2mm in thickness;

B.Flame-retarden PC diffuser, no broken, no discoloring, reeded clear/milky white optional;

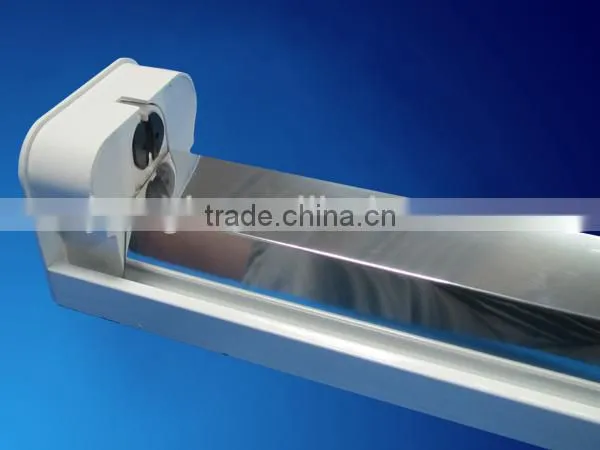

C.mirror aluminum reflector improves brightness.

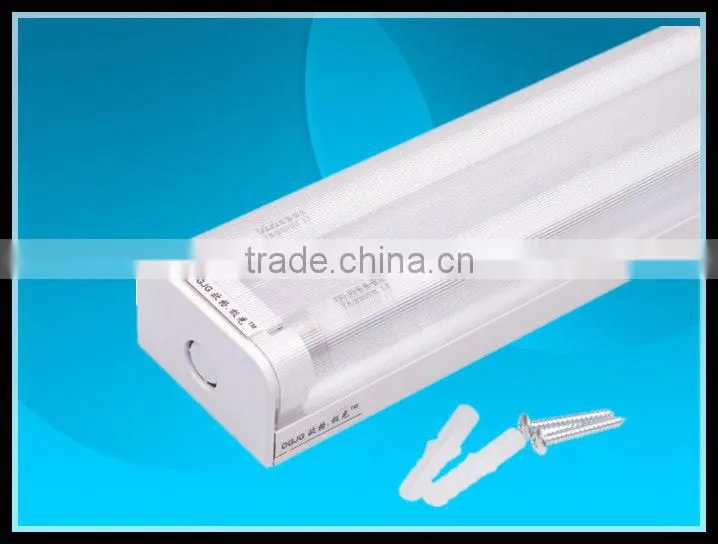

2. Installation:

Surface mounted, please specify for ceiling pendant installation.

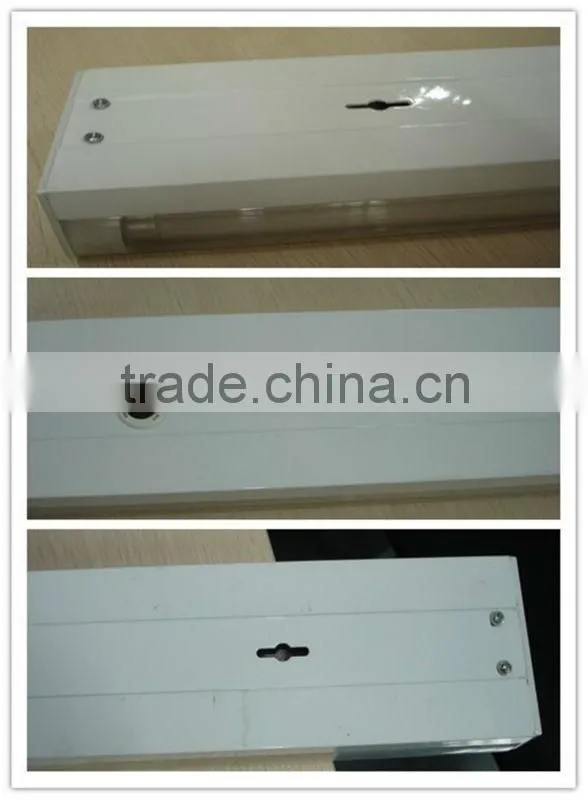

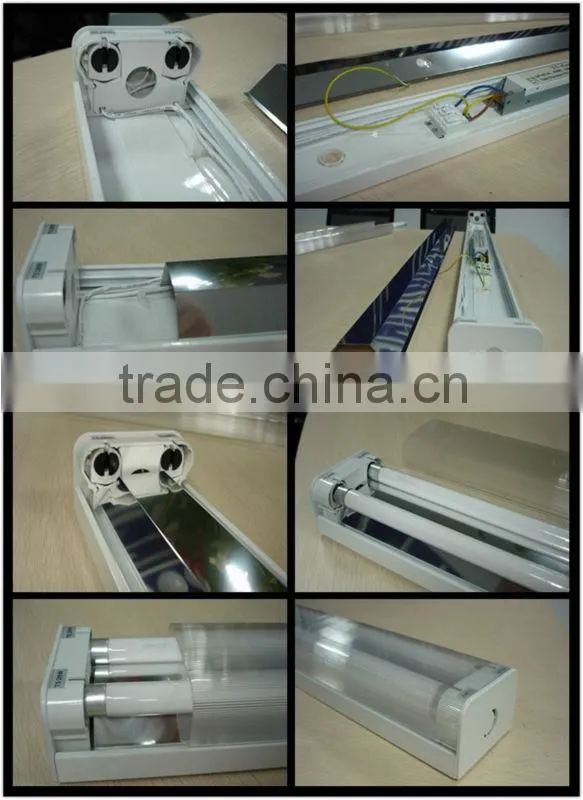

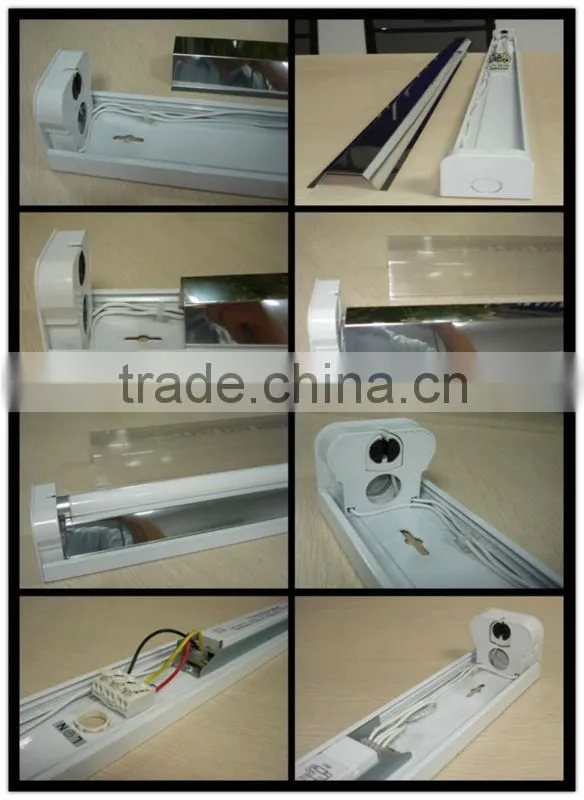

3. Wiring:

At the center back of the fitting, or from fitting side.

4.Certificate:

TUV-CB TUV-CE SAA CCC

5.Aplications:

office,factory,supermarket etc.

6.Lamps:

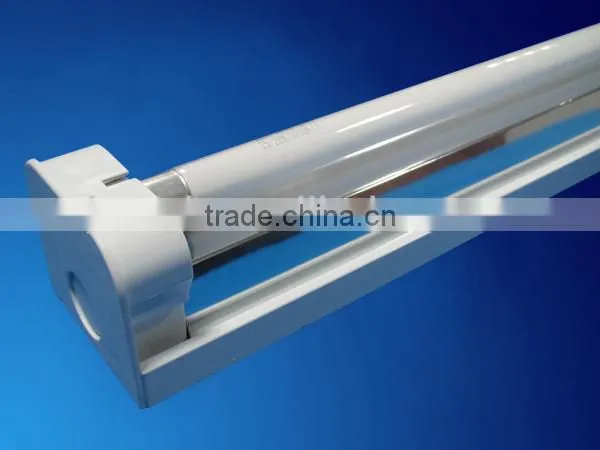

For single or twin T5 lamps

Specification:

led strip type

model	LED Type	LED Qty.	luminous flux(LM)	CRI	Life Span	Color Temp.	Volt./Freq.	Dimensions	Carton Dim.	Pcs/ctn.
model	LED Type	LED Qty.	luminous flux(LM)	CRI	Life Span	Color Temp.	Volt./Freq.	L×W×H(mm)	L×W×H(mm)	Pcs/ctn.
OG- LED10W-FPC	2835	60	950-1100	≥80	50000H	30 00/ 40 00/ 50 00/ 60 00K	80-265V	582×60×53	675×225×140	6
OG- LED12W-FPC	2835	72	1140-1320					758×60×53	830×225×140	6
OG- LED15W-FPC	2835	96	1425-1650					908×60×53	975×225×140	6
OG- LED20W-FPC	2835	120	1900-2200					1192×60×53	1275×225×140	6
OG- LED24W-FPC	2835	144	2280-2640					1498×60×53	1575×225×140	6

single tube:

Model	Power(w)	Tube Dia. (mm)	Fixture Dim. L×W×H(mm)	Carton Dim. L×W×H(mm)	Pcs./ctn. (pcs)
OG-ZT5-G80(FPC)	1×80W	16	1487×60×53	1520×210×130	6
OG-ZT5-G49(FPC)	1×49W	16	1487×60×53	1520×210×130	6
OG-ZT5-G54(FPC)	1×54W	16	1187×60×53	1220×210×130	6
OG-ZT5-G39(FPC)	1×39W	16	887×60×53	920×210×130	6
OG-ZT5-G24(FPC)	1×24W	16	587×60×53	620×210×130	6
OG-ZT5-G35(FPC)	1×35W	16	1487×60×53	1520×210×130	6
OG-ZT5-G28(FPC)	1×28W	16	1187×60×53	1220×210×130	6
OG-ZT5-G21(FPC)	1×21W	16	887×60×53	920×210×130	6
OG-ZT5-G14(FPC)	1×14W	16	587×60×53	620×210×130	6


LED light type:

single tube:
