Practical Ultra Thin Wall Light, Slim Led Linear Light
- Jiangmen Guangzhou Shenzhen
- T/T Credit Card
You May Like
Product Details
| LED Light Source | 2835 | Install Style | Surface Mounted | |
| Input Voltage(V) | 100-240V | Lamp Power(W) | 40 | |
| Lamp Luminous Flux(lm) | 4000 | Lamp Luminous Efficiency(lm/w) | 100 | |
| Color Temperature(CCT) | Other, 3000k, 4000k, 5000k,6000k | Working Temperature(℃) | -20, 40 | |
| Working Lifetime(Hour) | 50000 | Lamp Body Material | Aluminum | |
| IP Rating | IP44 | Certification | CE, EMC, LVD, SAA | |
| Place of Origin | Guangdong, China | Brand Name | OGJG | |
| Model Number | OG-LED220-BPC |
Product Description

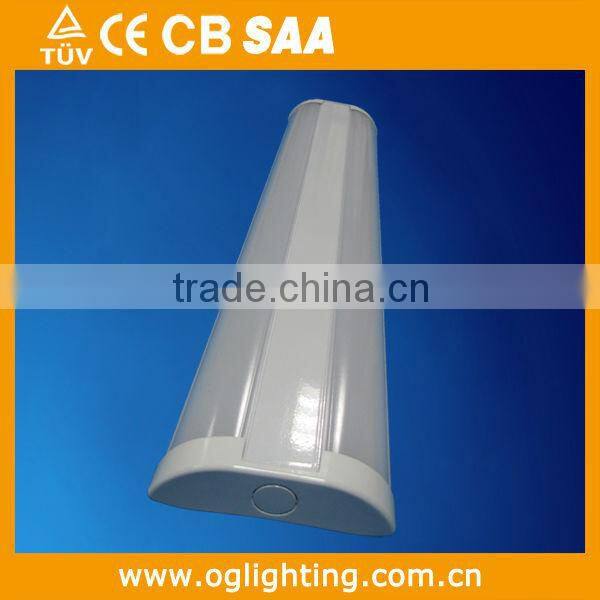

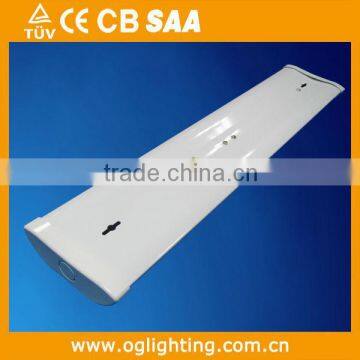

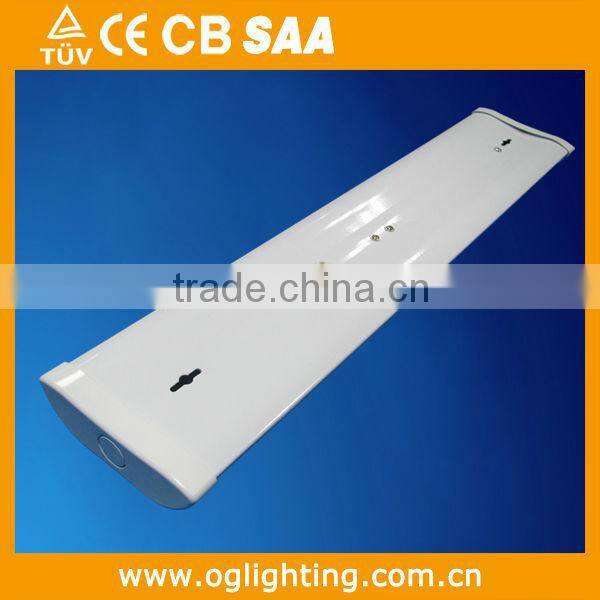

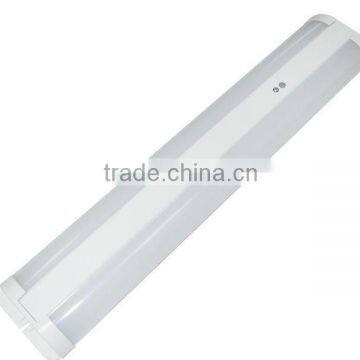

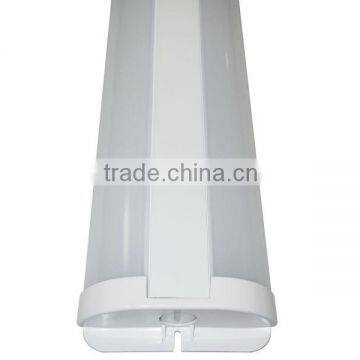

Practical ultra thin wall light, slim led linear light
Features:

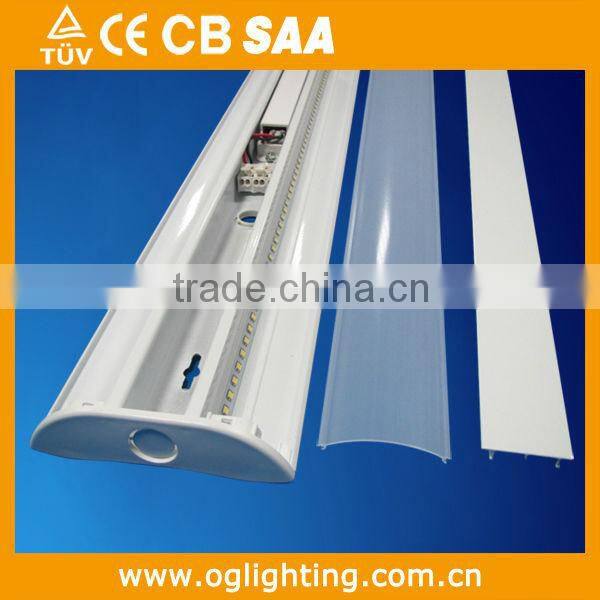

1. 1.2mm thickness powder coated aluminum fixture housing, performs superior heat dissipation
and rust resistance.
2. Non-discoloring opal polycarbonate diffuser, makes the light soft and comfortable.
3. Adopt high quality chips with high luminous efficiency.
4. Built-in reliable power driver, with wide range voltage input and constant current output.
5. Fixtures in different length are available to meet different requirements for illumination.
6. Integrated modular LED Aluminium base board design, LED strip PCB can be replaced, convenient to maintain.
7. Practical commercial linear light slim led light exhibition hall indoor lighting has Dimmable and non-dimmable optional.
8. Enough inner space for the installation of Microwave motion sensor.
9.3 years warranty
10.SAA,CE,CB-IEC,SAA certified.
Application: Residential, office, commercial and other indoor lighting applications
Specifications of Practical ultra thin wall light, slim led linear light
| Voltage | 100-240V |
| LED chip type | SMD2835 |
| Ra | 80 |
| Color Temp. | 3000k, 4000k,5000k,6000k |
| Lifespan | 50000 hours |
| Warranty | 3 years |
| Materials | aluminium housing, PC diffuser |
| Ambient Temp. | -20~40°c |
Practical ultra thin wall light, slim led linear light
Model | Input voltage | Power | LED Type | LED QTY | Luminous Flux | Fixture Dim (mm) | Pcs./ctn. (pcs) |

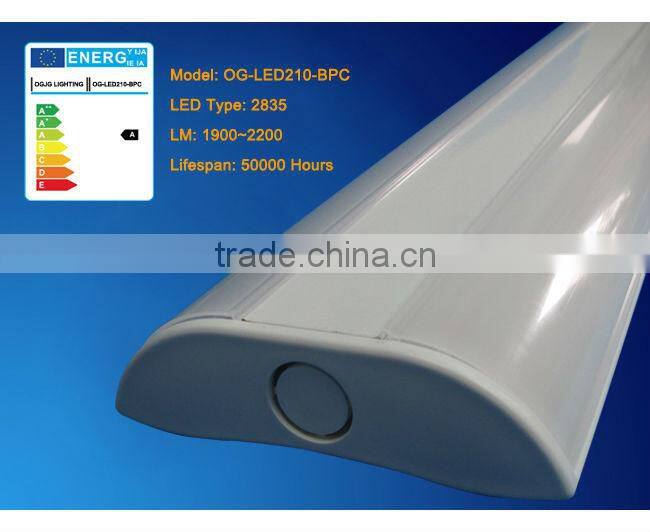

| OG-LED210-BPC | 100~240V | 20W | 2835 | 2x60 | 1900-2200 | 585x115x33 | 6 |
| OG-LED212-BPC | 100~240V | 24W | 2835 | 2x72 | 2280-2640 | 761x115x33 | 6 |
| OG-LED215-BPC | 100~240V | 30W | 2835 | 2x96 | 2850-3300 | 911x115x33 | 6 |
| OG-LED220-BPC | 100~240V | 40W | 2835 | 2x120 | 3800-4400 | 1195x115x33 | 6 |
| OG-LED224-BPC | 100~240V | 48W | 2835 | 2x144 | 4560-5280 | 1501x115x33 | 6 |
Contact Us
- Jiangmen Ogjg Lighting And Electronic Co., Ltd.
- Contact nameCathy Ren Chat Now
- Phone86-750-3131535
- AddressPlant A, No. 4-5, Xincun 2nd Road, Sanya, Hetang Town, Jiangmen, Guangdong
