Classroom recessed ceiling grille LED lights fixture
- 3000 Piece / Pieces per Month
- jiangmen/guangzhou/shenzhen
- T/T Credit Card
- Grille Lamp 3x28W High Quality Ceiling Louver Panel Light
- Top Quality 120x60 T8 Grille Lamp 40W LED Light Panel
- Double Sided LED Tube LED Light Panel Rechargeable LED Light Grille Lamp
- 60x60 Grille Louver Ceiling Light T8 Fluorescent Fitting With Transparent Diffuser
- High Quality T8 LED Clear Diffuser lumInaries With Acrylic Diffuser Clean Room Grille Light
- Troffer Lights Louver 2X14W Light Fixture Indirect Troffer Grille Light
Product Details
LED Light Source: | 2835 | Grid Shape: | I | Input Voltage(V): | 100-277 |
Lamp Power(W): | 60 | Lamp Luminous Flux(lm): | 6000 | Lamp Luminous Efficiency(lm/w): | 100 |
Color Temperature(CCT): | Cool White | Working Temperature(℃): | -20, 40 | Working Lifetime(Hour): | 50000 |
Lamp Body Material: | Stainless Steel | Certification: | CCC, CE, SAA | Base Type: | 2G7 |
Place of Origin: | Guangdong, China | Brand Name: | OGJG | Model Number: | OG-PLED-320(S) |
Product Description

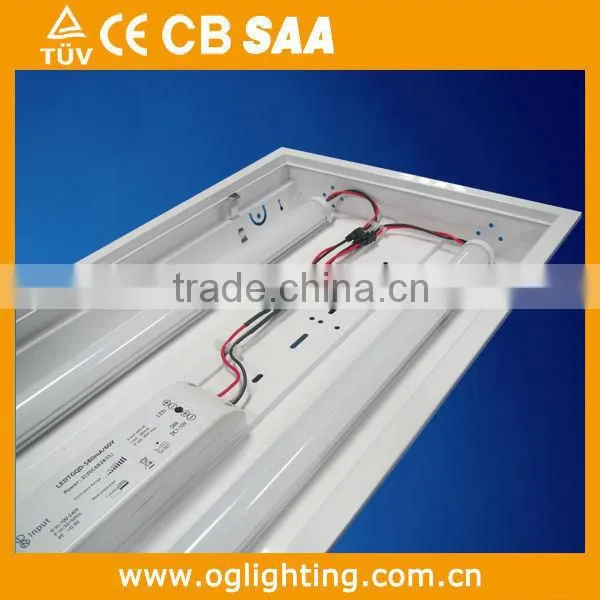

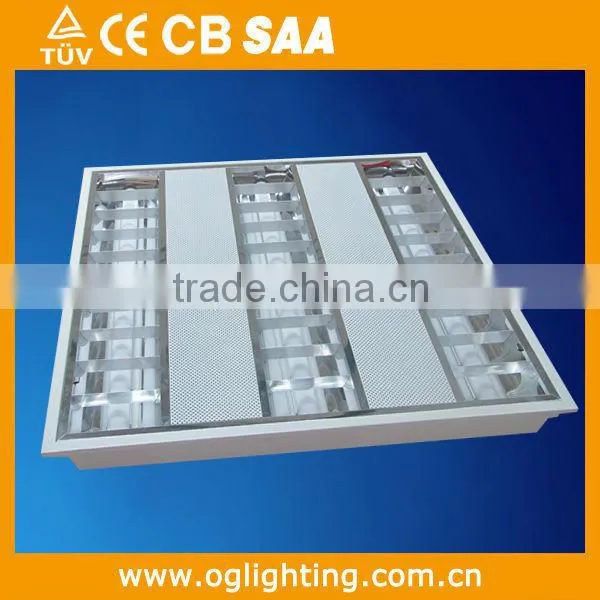

Classroom recessed ceiling grille LED lights fixture
Feature:
1. Material: white powder coated cold-rolled steel sheet,0.5mm in thickness
2. aluminum louver and reflector,0.3mm in thickness
3. built-in led strips and driver, opal diffuser to reduce glare
4. superior heat dissipation
Voltage: | 100-277V |
CCT: | 3000/4000/6000K |
CRI: | 80Ra |
Power Factor: | 0.95 |
THD: | 13% |
Housing Material: | white powder coated cold-rolled steel sheet |
louver and reflector | aluminum |
LED lifespan: | 50000h |
Warranty: | 3 years |
Model | Power | Lumens | Fixture Dim. |
OG-PLED-220(S) | 2x20W | 3800-4200 | 1198x298x50 |
OG-PLED-320(S) | 3x20W | 5700-6300 | 1198x598x50 |
OG-PLED-420(S) | 4x20W | 7600-8400 | 1198x598x50 |
OG-PLED-210(S) | 2x10W | 1900-2100 | 598x298x50 |
OG-PLED-310(S) | 3x10W | 2850-3150 | 598x598x50 |
OG-PLED-410(S) | 4x10W | 3800-4200 | 598x598x50 |
Classroom recessed ceiling grille led lights fixture
The Core competitiveness of OGJG Lighting | |
Fixture Material | Aluminum: less weight and Perfect heat dissipation |
PC: high strength and good tightness | |
LED | Epistar SMD2835,High lumen and long lifespan |
Led Moudle | draw-out design and easy to replace |
Maintenance | Easy to replace led Moudle,easy to remove and install |
Led Moudle | 1% LED Moudle for free if you purchase from us |
Accessories | Easy to add Emergency backup, sensor and dimming as you request |
Length | Easy to change the length as you request from 2ft to 8ft |
Certificate | Complete certificate: ETL,DLC,TUV-CE,TUV-CB,TUV-EMC,SGS-SAA, SGS-CE,SGS-CB,ROHS,SGS-C-TICK,SGS-MEPS |
Delivery time | 10-20 days after received your payment |
Our values | Seek for the long-time cooperation and achieve win-win |
Other | 50000 Hours lifespan and 5 years warranty as your request |
1.Payment:TT 30% deposit in advance,the balance to be paid before delivery. | |
2.Sample:Charged,shipping by DHL,Fedex,UPS,TNT in discount if prepaid fee. | |
3.Package:Samples are packaged within wood bar box. | |
Unit with plastic-wrapped into inner box,then several pcs into a carton. | |
Pallet is optional.All package information and lable are designed as your request. | |
4.Shipping:Purchasing in container,we take all FOB fees before Jiangmen Port. | |
5.Delivery time:10-20 days per container. | |
7.Our goal: Make the OGJG Lighting be the NO 1 in T5 and LED commercial light fixture field. |
