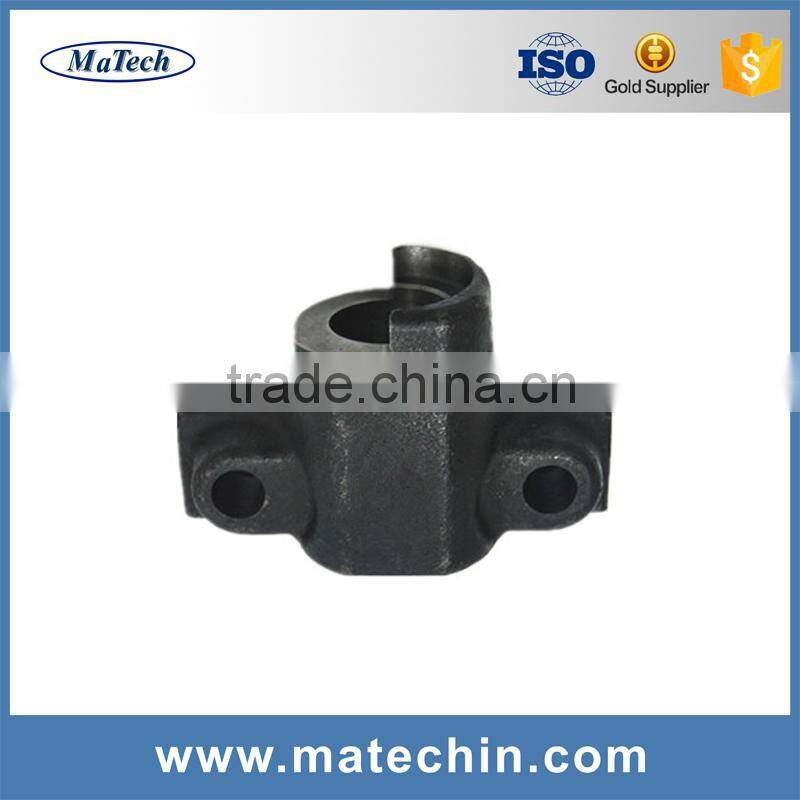

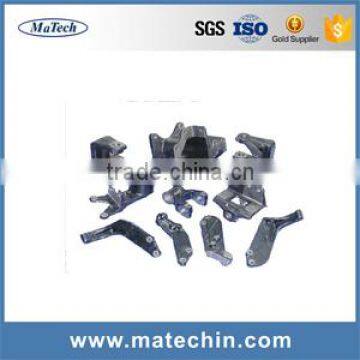

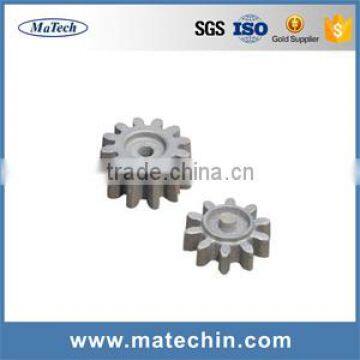

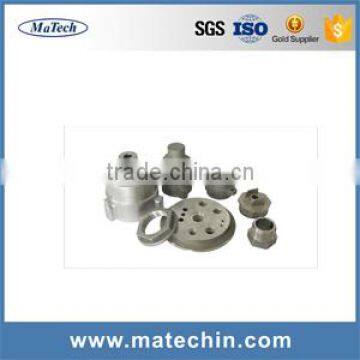

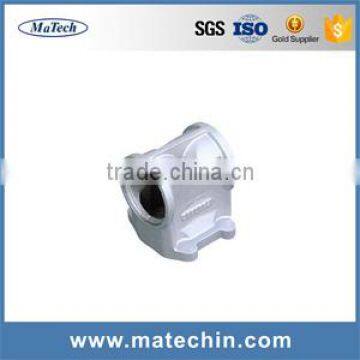

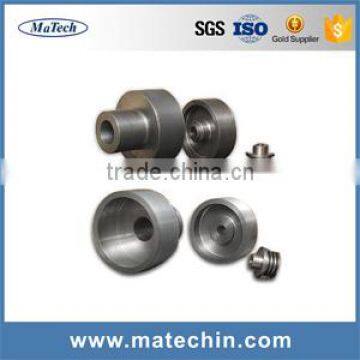

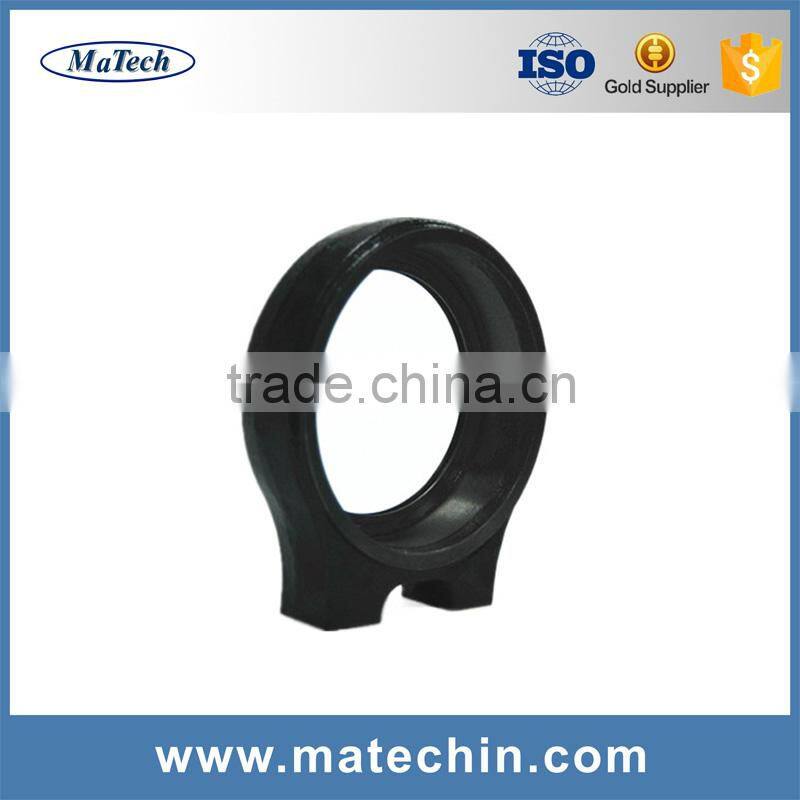

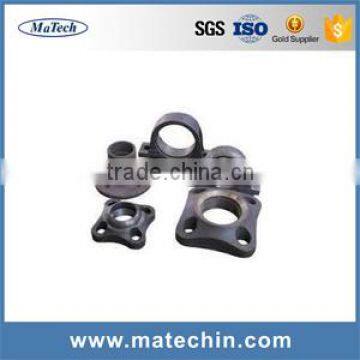

China Manufacturer Customized High Quality Cast Iron Castings
Item Name |
China Manufacturer Customized High Quality Cast Iron Castings |
|
General Products Application/Service Area |
Metal Parts Solution for Vehicle, Agriculture machine, Construction Machine, transportation equipment, Valve and Pump system, Agriculture machine metal Parts, engine bracket, truck chassis bracket, gear box , gear housing , gear cover, shaft, spline shaft , pulley, flange, connection pipe, pipe, hydraulic valve , valve housing ,Fitting , flange, wheel, fly wheel, oil pump housing, starter housing, coolant pump housing, transmission shaft , transmission gear, sprocket, chains etc.
|
Main blank Process for Casting |
Sand Casting , Resin Sand Casting, Green Sand Casting, Shell Molding, Automatic Molding, Lost Wax Casting, Lost Foam Molding Casting
|
Blanks Tolerance -Casting Tolerance |
CT9-10 for Machine Molding Process, CT8-9 for Shell Molding and Lost Foam Molding Casting Process CT10-11 for Manual Molding Sand casting Process |
Applicable Material |
See Table Below (Ductile Iron Casting, Grey Iron Casting) OR According to customer requirement
|
Casting Blank Size /Dimensions |
2 mm-2000mm / 0.08inch-79inch for casting iron, according to customer requirement |
Casting Blank Weight |
Range from 0.01kg-1000kg for casting iron |
Applicable Machining Process |
CNC Machining/ Lathing/ Milling/ Turning/ Boring/ Drilling/ Tapping/ Broaching/Reaming /Grinding/Honing and etc.
|
Machining Tolerance |
From 0.005mm-0.01mm-0.1mm |
Machined Surface Quality |
Ra 0.8-Ra3.2, according to customer requirement |
Applicable Heat Treatment |
Normalization , annealing, quenching and tempering, Case Hardening, Nitriding, Carbon Nitriding, Induction Quenching
|
Applicable Finish Surface Treatment |
Shot/sand blast, polishing, Surface passivation, Primer Painting , Powder coating, ED- Coating, Chromate Plating, zinc-plate, Dacromat coating, Finish Painting.
|
MOQ |
For iron casting : 100pcs For Machining : 50pcs |
Lead Time |
45days from the receipt date of deposit for ductile iron sand casting |
Ductile Iron Casting Material Comparison Table:
|
Cast iron with nomular graphite DIN EN 1563 |
Germany DIN 1693 |
France NF |
Great Britain BS |
Netherlands NEN |
Sweden MNC |
USA ASTM A536 |
EN-GJS-350-22-LT |
GGG-35.3 |
FGS 370-17 |
370/17 |
GN 38 |
0717-15 |
---- |
EN-GJS-400-18-LT |
GGG-40.3 |
---- |
---- |
---- |
---- |
60-40-18 |
EN-GJS-400-15 |
GGG-40 |
FGS-400-12 |
420/12 |
GN 42 |
0717-02 |
60-40-18 |
EN-GJS-400-10 |
---- |
---- |
420/12 |
---- |
---- |
65-45-12 |
EN-GJS-500-7 |
GGG-50 |
FGS-500-7 |
500/7 |
GN 50 |
0727-02 |
65-45-12/ 80-55-06 |
EN-GJS-600-3 |
GGG-60 |
FGS-600-3 |
600/3 |
GN 60 |
0732-03 |
80-55-06 |
EN-GJS-700-2 |
GGG-70 |
FGS-700-2 |
700/2 |
GN 70 |
0737-01 |
100-70-03 |
EN-GJS-800-2 |
GGG-80 |
FGS-800-2 |
800/2 |
|
|
120-90-02 |
EN-GJS-1000-5 (DIN EN 1564) |
GGG-100B/A |
---- |
---- |
---- |
---- |
850-550-10 |
EN-GJS-AX NiSiCr35 5 2 |
GGG- NiSiCr 35 5 2 |
FGS- Ni35Si5Cr2 |
S5S |
---- |
---- |
Type D-5S |
Grey Iron Casting Material Comparison Table:
|
Cast iron with lamellar graphite DIN EN 1561 |
Germany DIN 1691 |
France NF |
Great Britain BS |
Netherlands NEN |
Sweden MNC |
USA ASTM A48 |
EN-GJL-150 |
GG-15 |
Ft 15 D |
Grade 150 |
GG 15 |
01 15-00 |
20 B / 25 B |
EN-GJL-200 |
GG-20 |
Ft 20 D |
Grade 180/220 |
GG 20 |
01 20-00 |
25 B / 30 B |
EN-GJL-250 |
GG-25 |
Ft 25 D |
Grade 220/260 |
GG 25 |
01 25-00 |
35 B / 40 B |
EN-GJL-300 |
GG 30 |
Ft 30 D |
Grade 300 |
GG 30 |
01 30-00 |
40B / 45 B |
